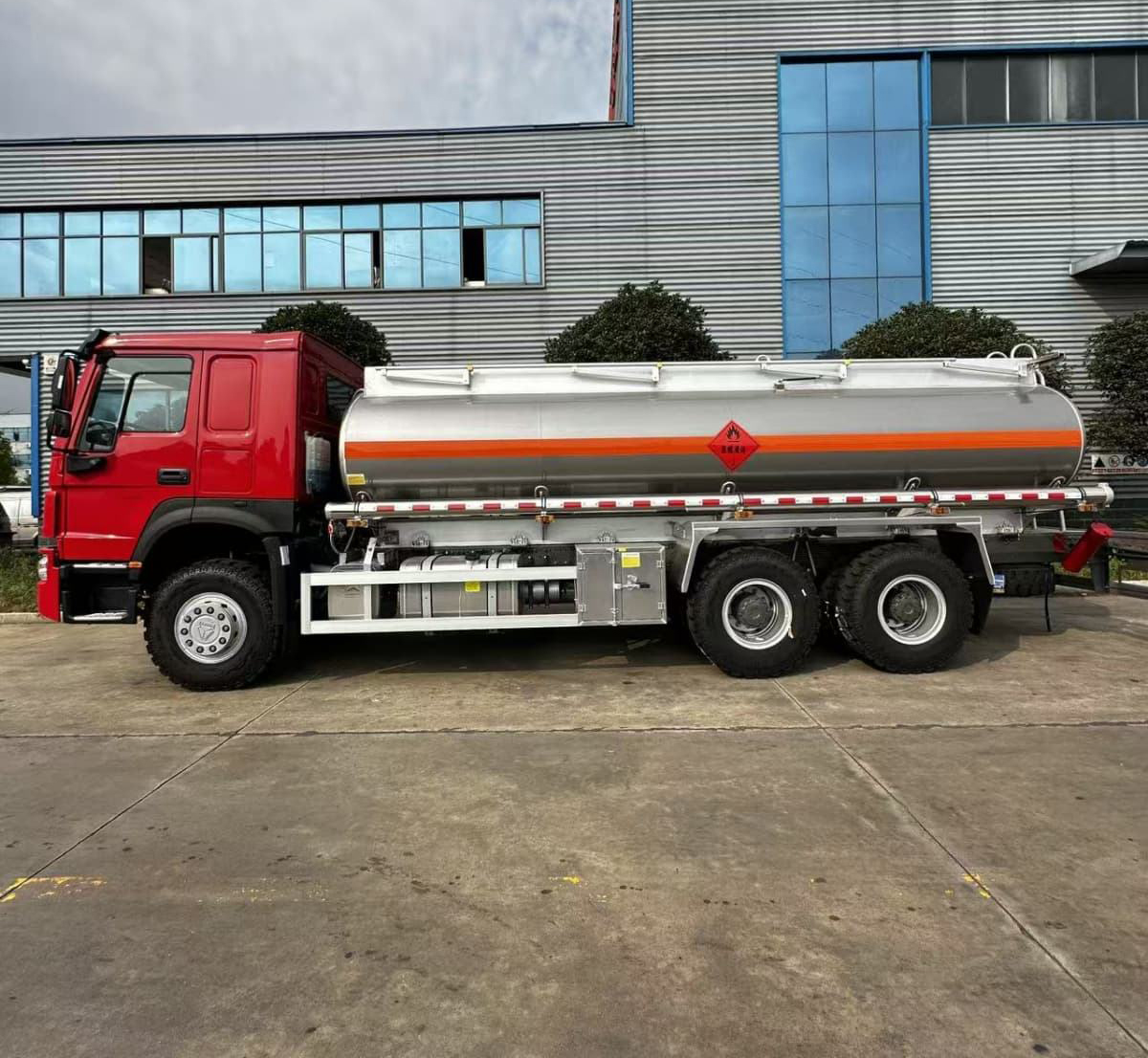

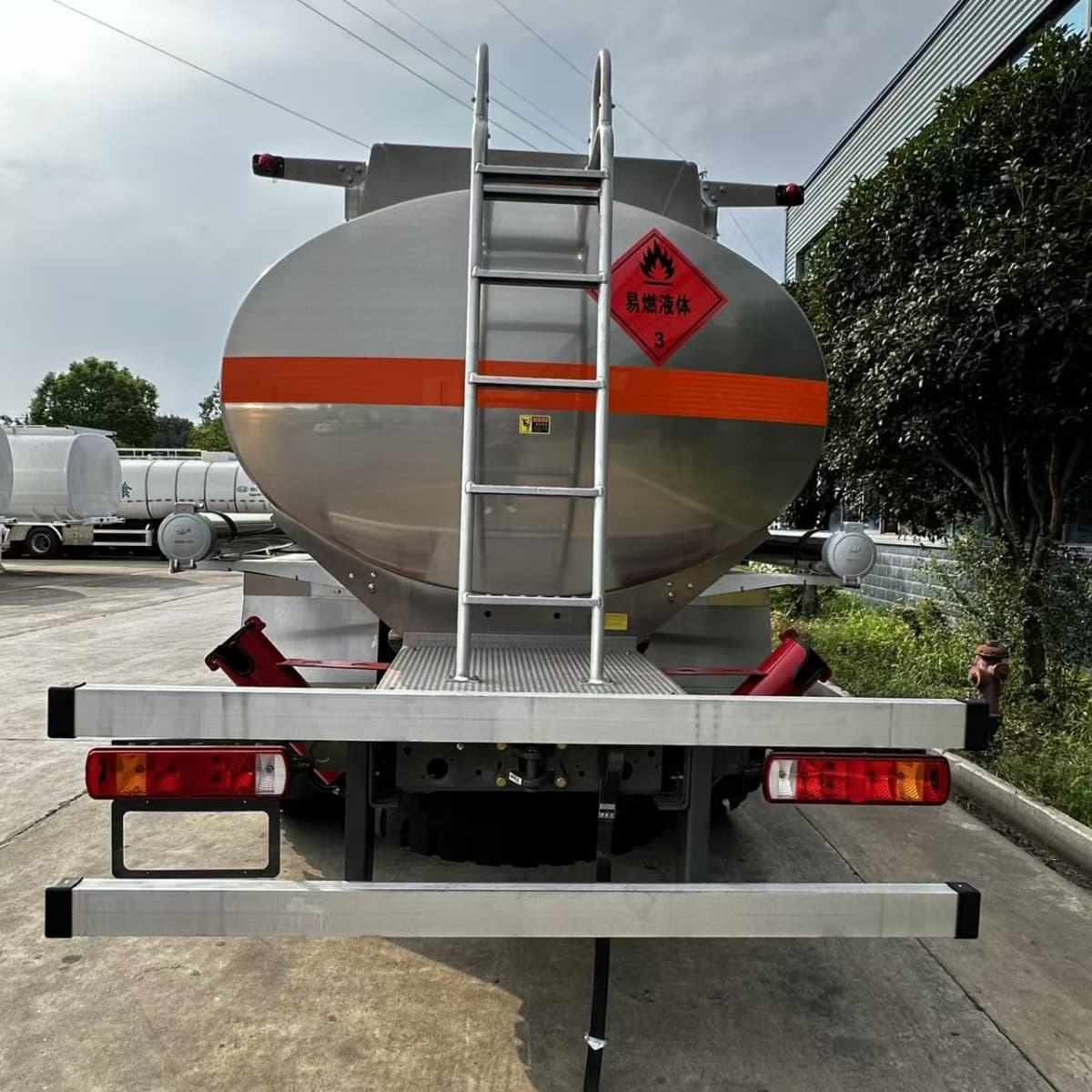

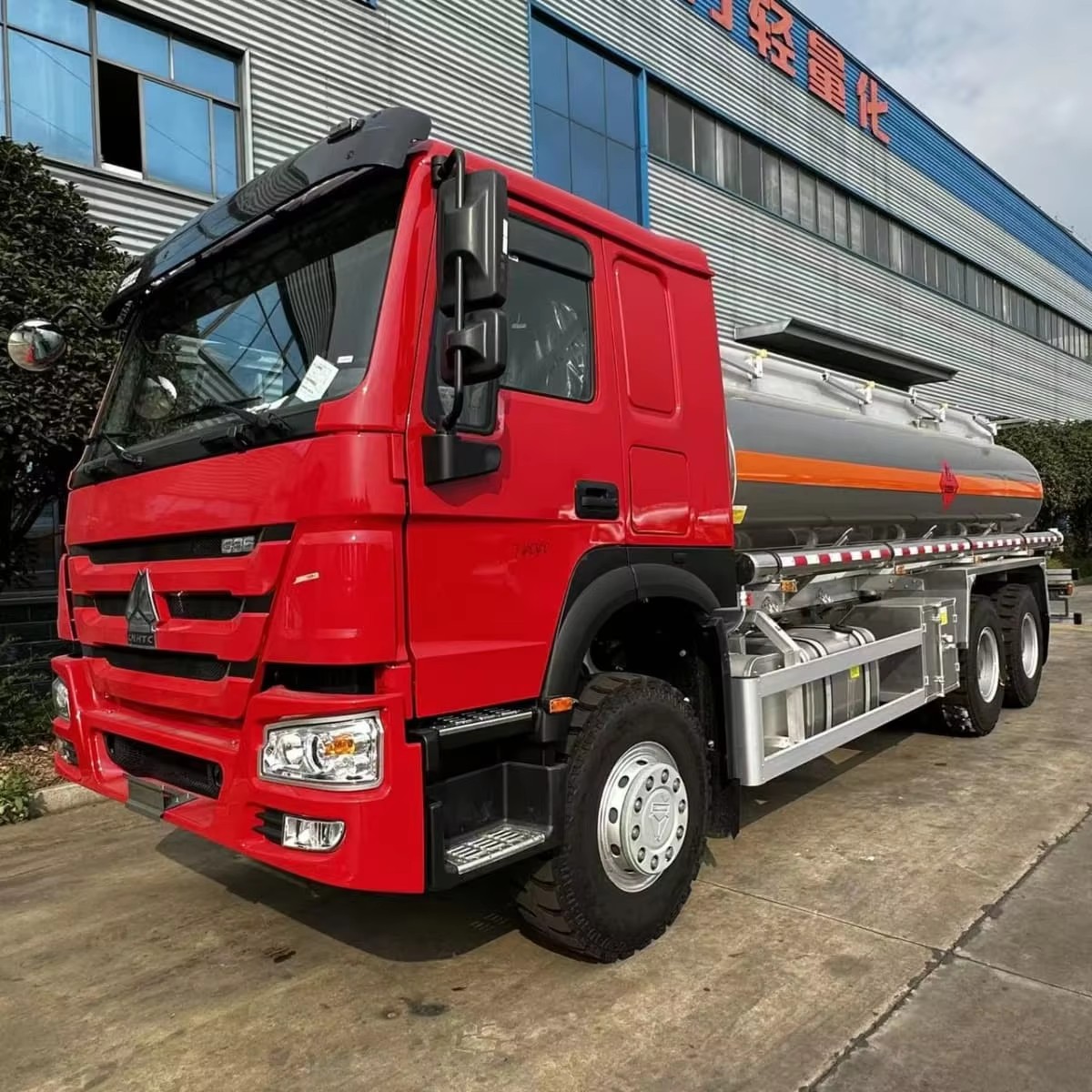

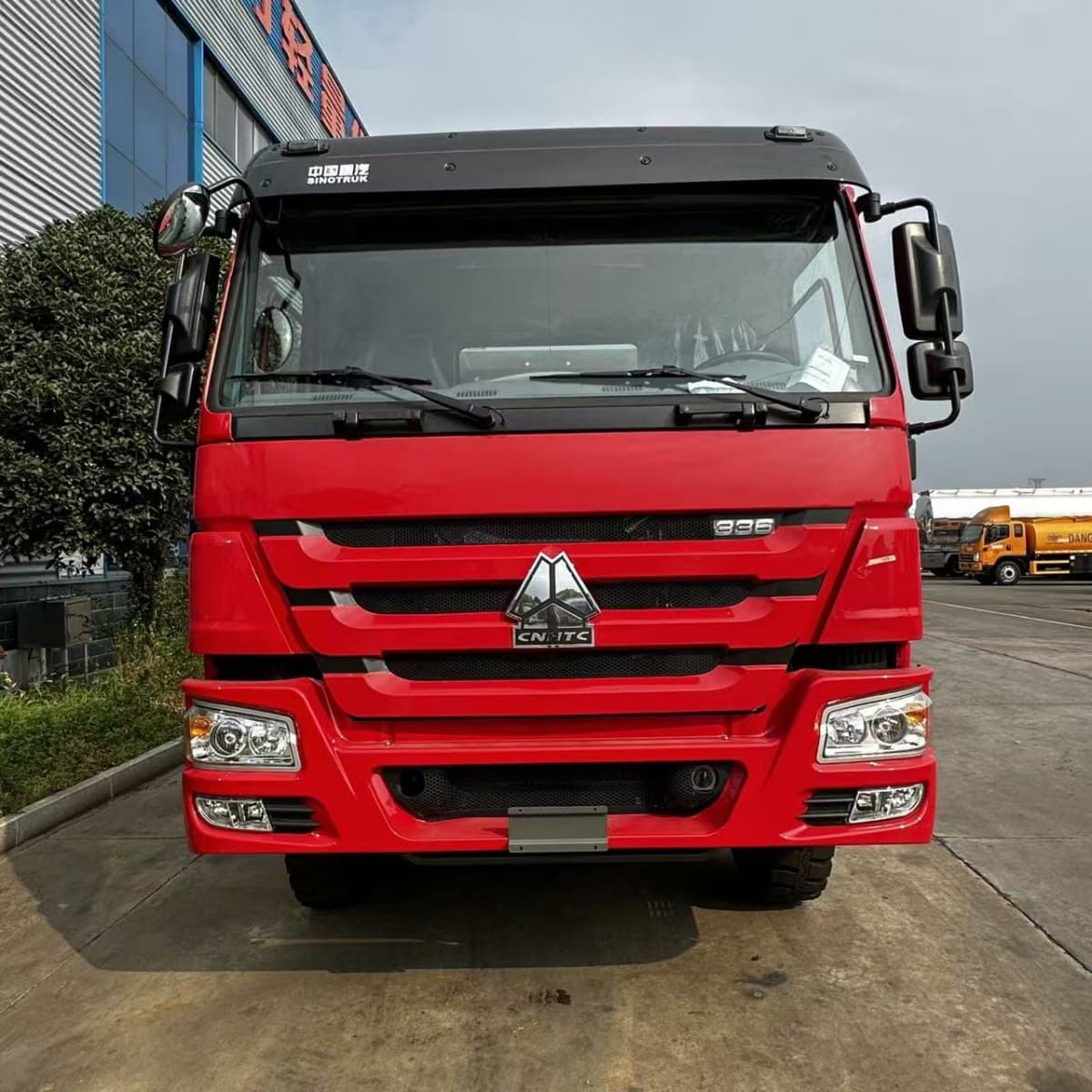

HOWO 20Ton Aluminum Alloy Fuel Tank Truck with Flow Meter , Renowned Chassis & Lightweight Body
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167453597225.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167454387257.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167455212727.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167454370347.jpg)
![[pics:title]](/static/upload/image/20251011/1760167453597225.jpg)
![[pics:title]](/static/upload/image/20251011/1760167454387257.jpg)
![[pics:title]](/static/upload/image/20251011/1760167455212727.jpg)
![[pics:title]](/static/upload/image/20251011/1760167454370347.jpg)
[Vehicle Technical Parameters] | |
Product Name | Fuel Tank Truck |
Curb Weight(Kg) | 11495 |
Boundary Dimension(mm) | 9800*2525*3335 |
Tank Volume(m³) | 20 |
Tank Thickness（mm） | 5 |
Tank Body Material | Carbon Steel |
Compartment | 2-6 As Customer Need |
Operating Ambient Temperature（°C） | -20~45 |
Manhole Cover | European Standard |
Emergency Shut Off Valve | Include |
Oil Gas Recovery Unit | Include |
Anti-Overflow Alarm Device | Include |
Fuel Loading method | Bottom Filling |
Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | As Required |
[Chassis Technical Parameters] | |
Chassis Brand | HOWO |
Drive Form | 6*4 LHD RHD Optional |
Steering Device | Power Assisted Steering |
Wheelbase(mm) | 3175+1400 |
Engine Brand | HOWO/MC07H.34 |
Horse Power(Kw) | 247 |
Engine Displacement(ml) | 6870 |
Engine Emission Standard | Euro 3 |
Number of Engine Cylinders | 6 |
Fuel Type | Diesel |
Gearbox | 10-speed transmission |
Front/Rear Axle(t) | 5/13+13 |
Suspension | Multi Leaf Springs |
Brake System | Front/Rear Drum Full Air Braking |
Tires Spec | 315/80r22.5 18PR |
Cab Configuration | air conditioning, radio, MP3 and USB port,A |
