8x4 20 Ton 25000L Aluminum Fuel Tank Truck , SHAKEMAN Brand , With Pump & Meter for Diesel Trans
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760166909382673.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760166899753974.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760166899597164.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760166900348143.jpg)
![[pics:title]](/static/upload/image/20251011/1760166909382673.jpg)
![[pics:title]](/static/upload/image/20251011/1760166899753974.jpg)
![[pics:title]](/static/upload/image/20251011/1760166899597164.jpg)
![[pics:title]](/static/upload/image/20251011/1760166900348143.jpg)
[Vehicle Technical Parameters] | |
Product Name | Fuel Tank Truck |
Curb Weight(Kg) | 12400 |
Boundary Dimension(mm) | 9980*2550*3500 |
Tank Volume(m³) | 25 |
Tank Thickness（mm） | 5 |
Tank Body Material | Carbon Steel |
Compartment | 2-6 As Customer Need |
Operating Ambient Temperature（°C） | -20~45 |
Manhole Cover | European Standard |
Emergency Shut Off Valve | Include |
Oil Gas Recovery Unit | Include |
Anti-Overflow Alarm Device | Include |
Fuel Loading method | Bottom Filling |

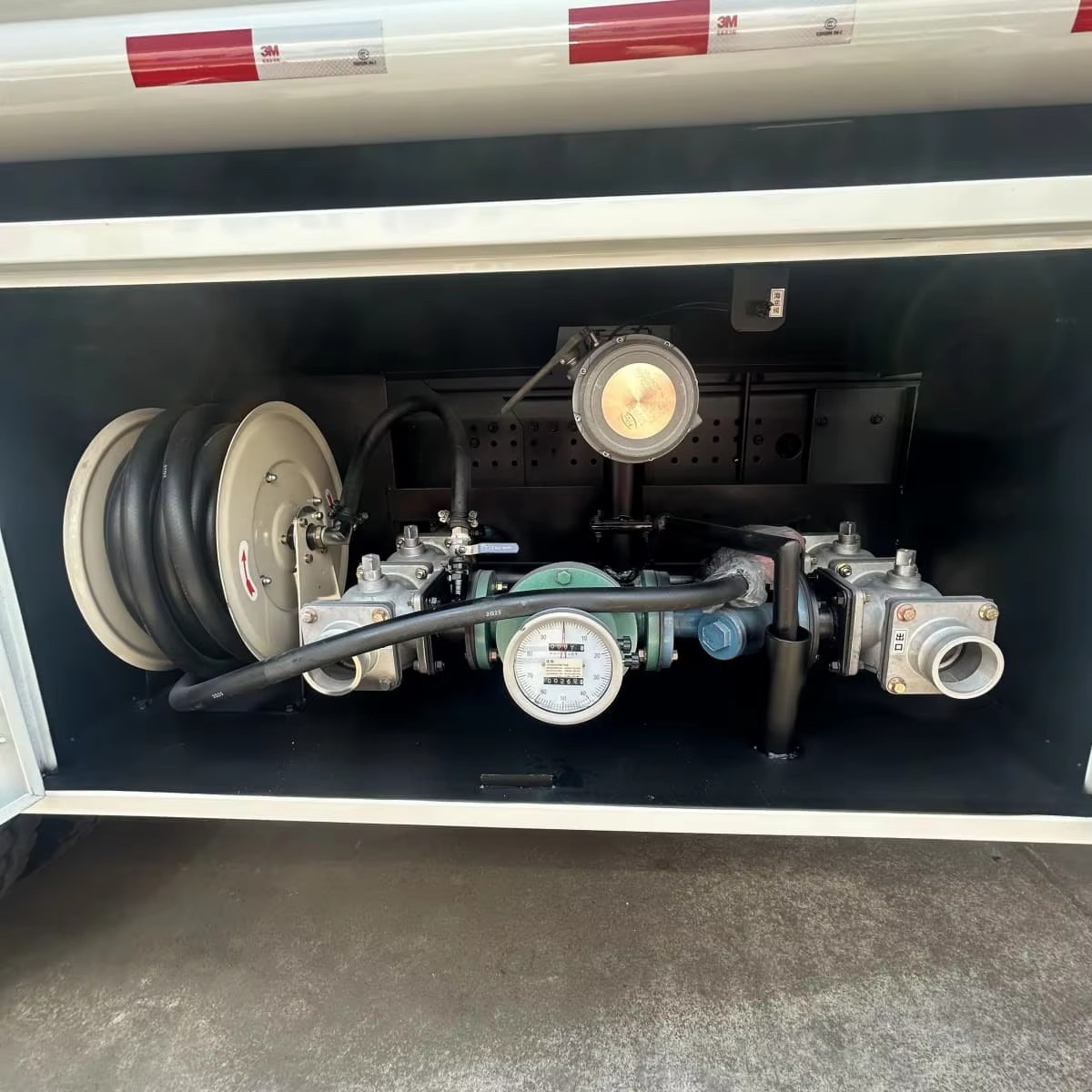

Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | As Required |
[Chassis Technical Parameters] | |
Chassis Brand | SHACMAN |
Drive Form | 6*4 LHD RHD Optional |
Steering Device | Power Assisted Steering |
Wheelbase(mm) | 4375+1400 |
Engine Brand | SHACMAN/WP8.350 |
Horse Power(Kw) | 257 |
Engine Displacement(ml) | 7800 |
Engine Emission Standard | Euro 3 |
Number of Engine Cylinders | 6 |
Fuel Type | Diesel |
Gearbox | 10-speed transmission |
Front/Rear Axle(t) | 5/13+13 |
Suspension | Multi Leaf Springs |
Brake System | Front/Rear Drum Full Air Braking |
Tires Spec | 11.00R20 18PR |
Cab Configuration | air conditioning, radio, MP3 and USB port,A |
