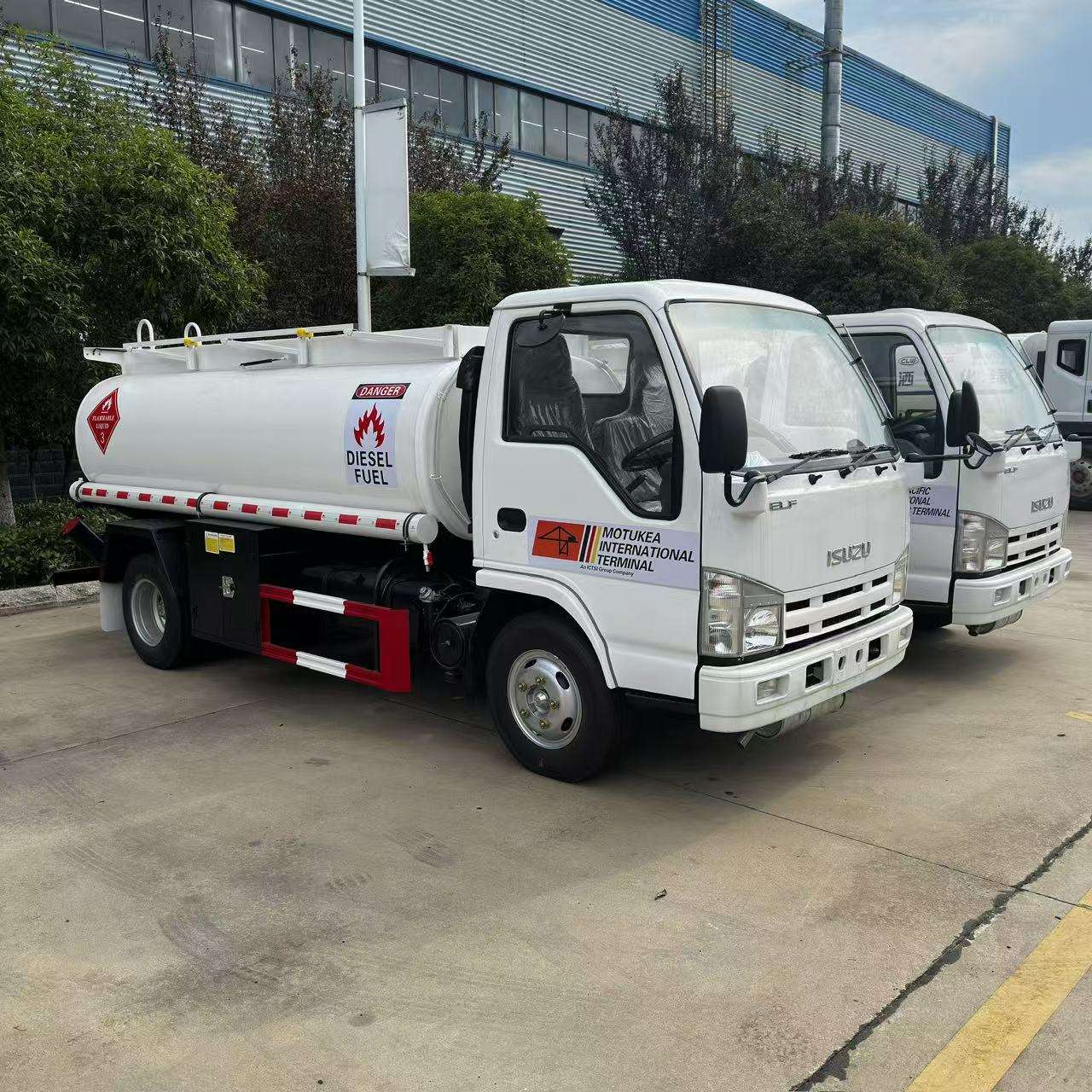

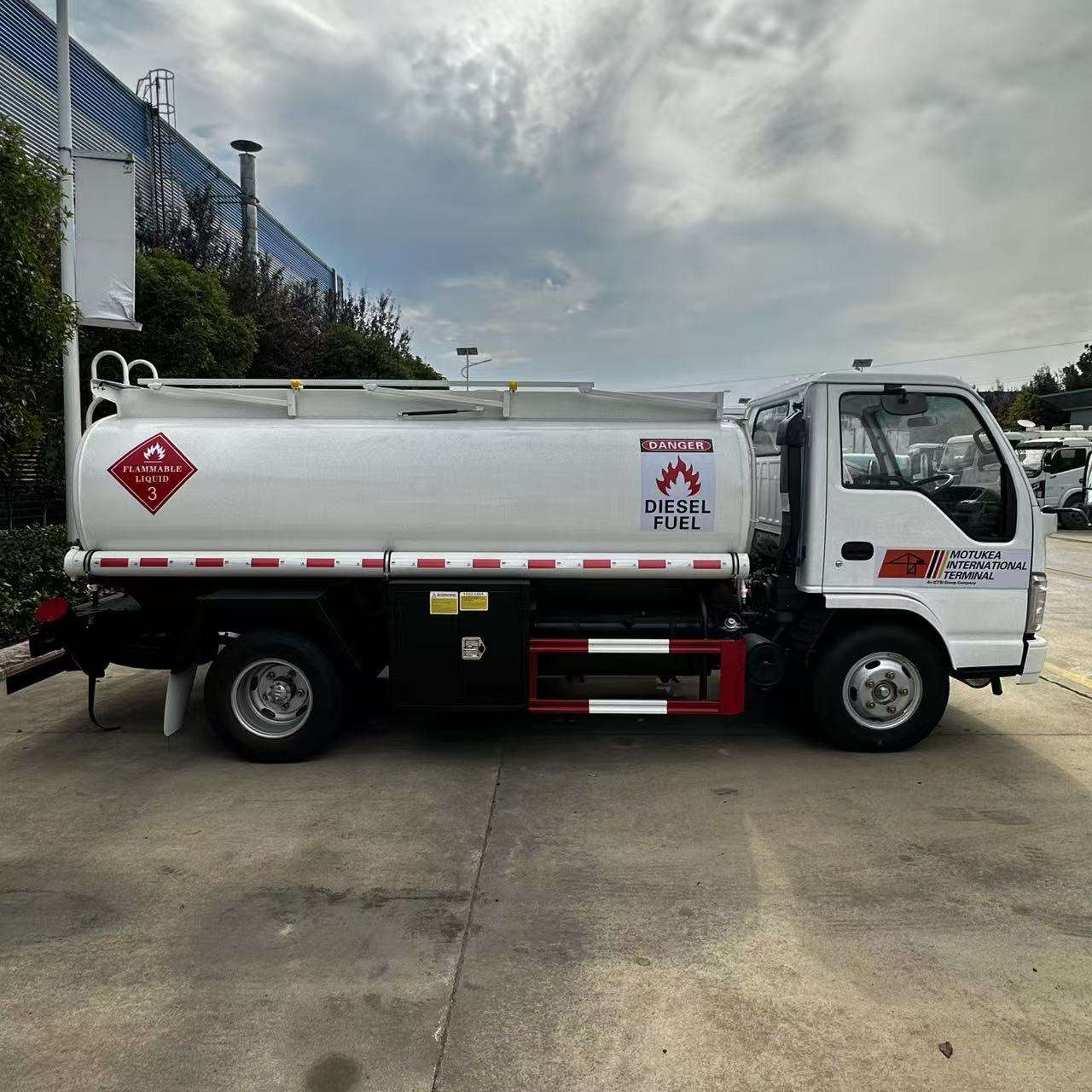

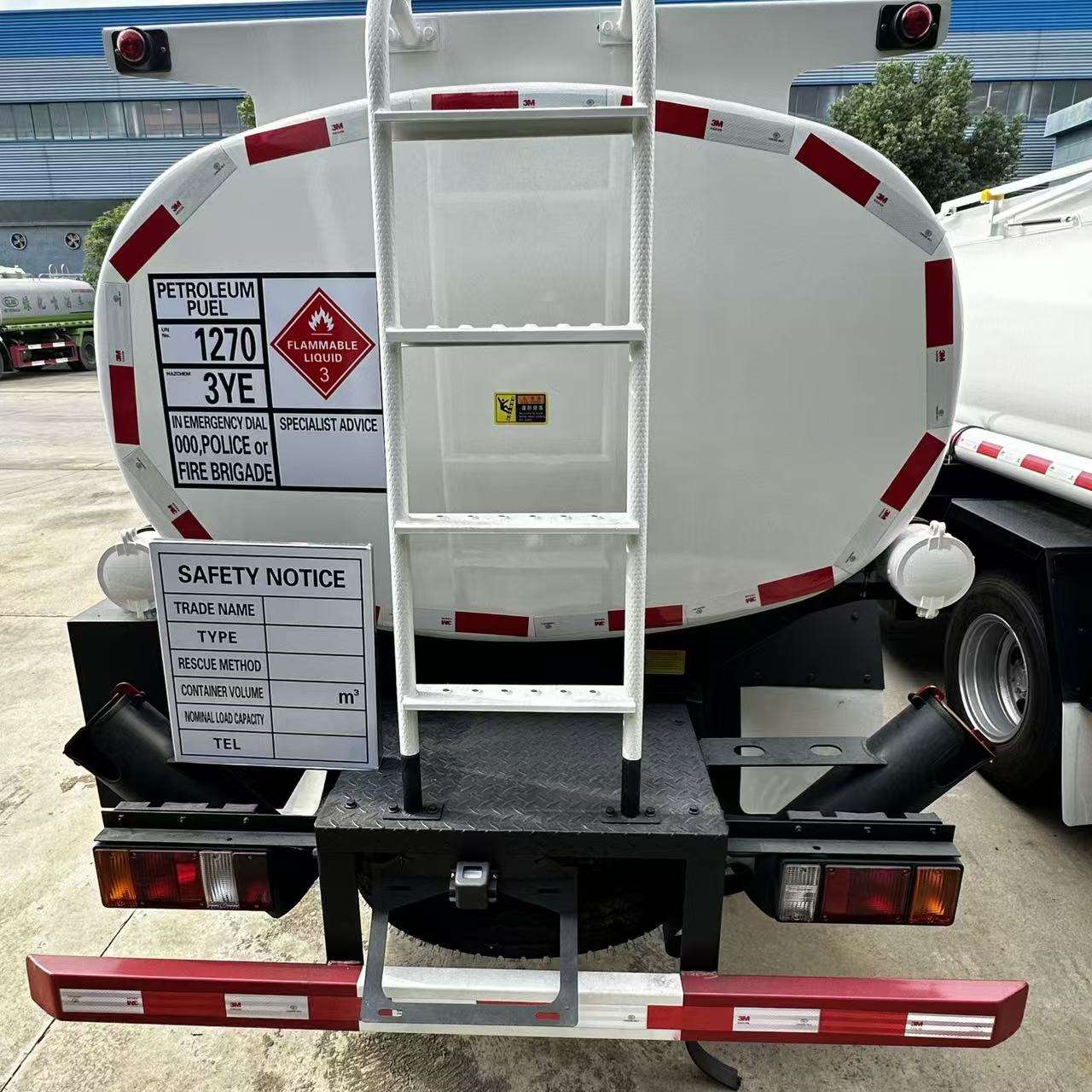

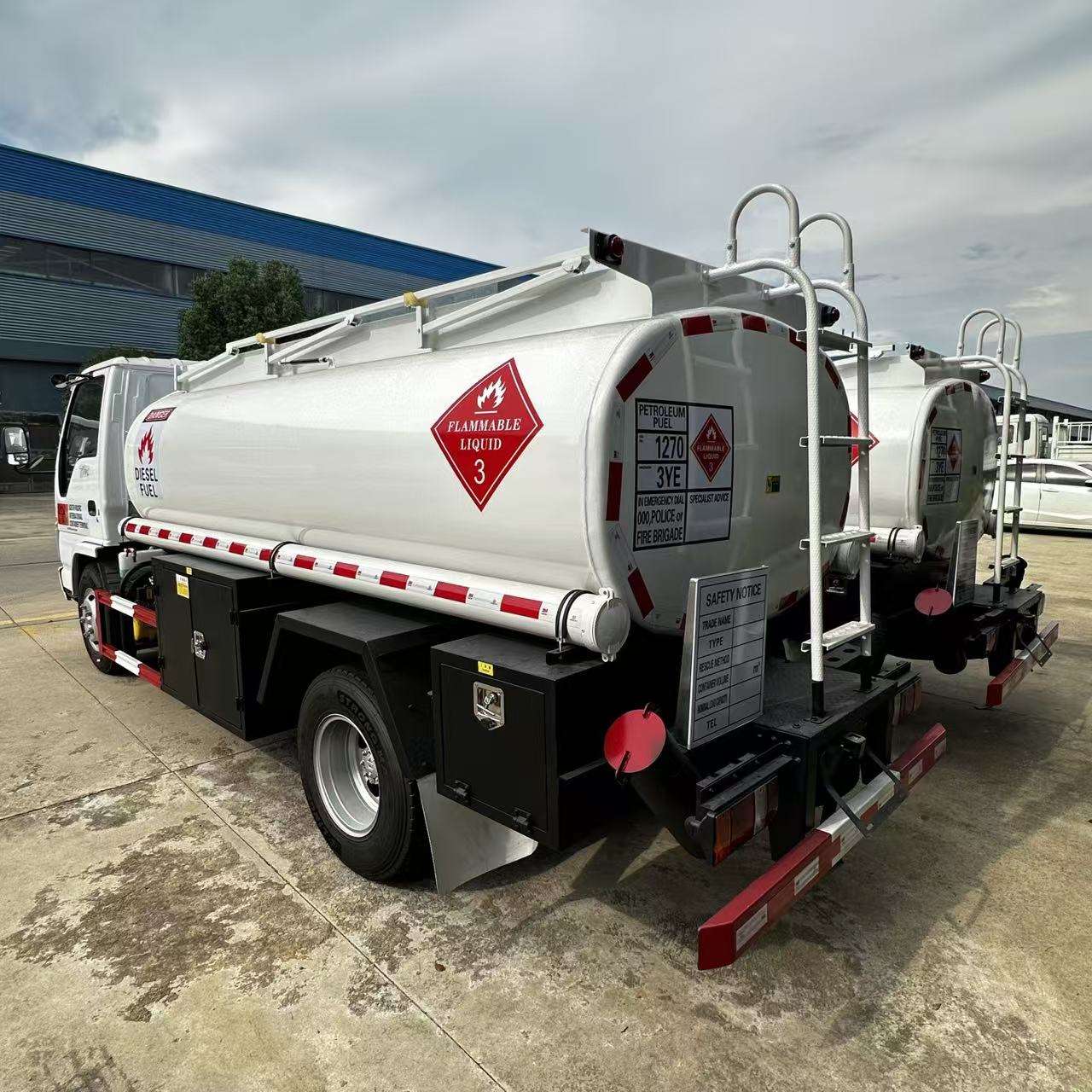

Hot Sale 5000L Mobile Fuel Truck New Customer's Require 5 Cbm Gas Station Refueling Logistics F
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167129928208.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167128394222.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167129818277.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760167130333390.jpg)
![[pics:title]](/static/upload/image/20251011/1760167129928208.jpg)
![[pics:title]](/static/upload/image/20251011/1760167128394222.jpg)
![[pics:title]](/static/upload/image/20251011/1760167129818277.jpg)
![[pics:title]](/static/upload/image/20251011/1760167130333390.jpg)
[Vehicle Technical Parameters] | |
Product Name | Fuel Tank Truck |
Curb Weight(Kg) | 3800 |
Boundary Dimension(mm) | 5990*2050*2500 |
Tank Volume(m³) | 5 |
Tank Thickness（mm） | 5 |
Tank Body Material | Carbon Steel |
Compartment | 2-6 As Customer Need |
Operating Ambient Temperature（°C） | -20~45 |
Manhole Cover | European Standard |
Emergency Shut Off Valve | Include |
Oil Gas Recovery Unit | Include |
Anti-Overflow Alarm Device | Include |
Fuel Loading method | Bottom Filling |
Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | As Required |
[Chassis Technical Parameters] | |
Chassis Brand | Isuzu |
Drive Form | 4*2LHD RHD Optional |
Steering Device | Power Assisted Steering |
Wheelbase(mm) | 3360 |
Engine Brand | SINOTRUK/MC07H.35-60 |
Horse Power(Kw) | 95 |
Engine Displacement(ml) | 2500 |
Engine Emission Standard | Euro 3/Euro4/Euro5/Euro6 |
Number of Engine Cylinders | 4 |
Fuel Type | Diesel |
Gearbox | 6 |
Front/Rear Axle(t) | 3.5/7.5 |
Suspension | Multi Leaf Springs |
Brake System | Front/Rear Drum Full Air Braking |
Tires Spec | 7.50R16 |
Cab Configuration | air conditioning, radio, MP3 and USB port,A |
