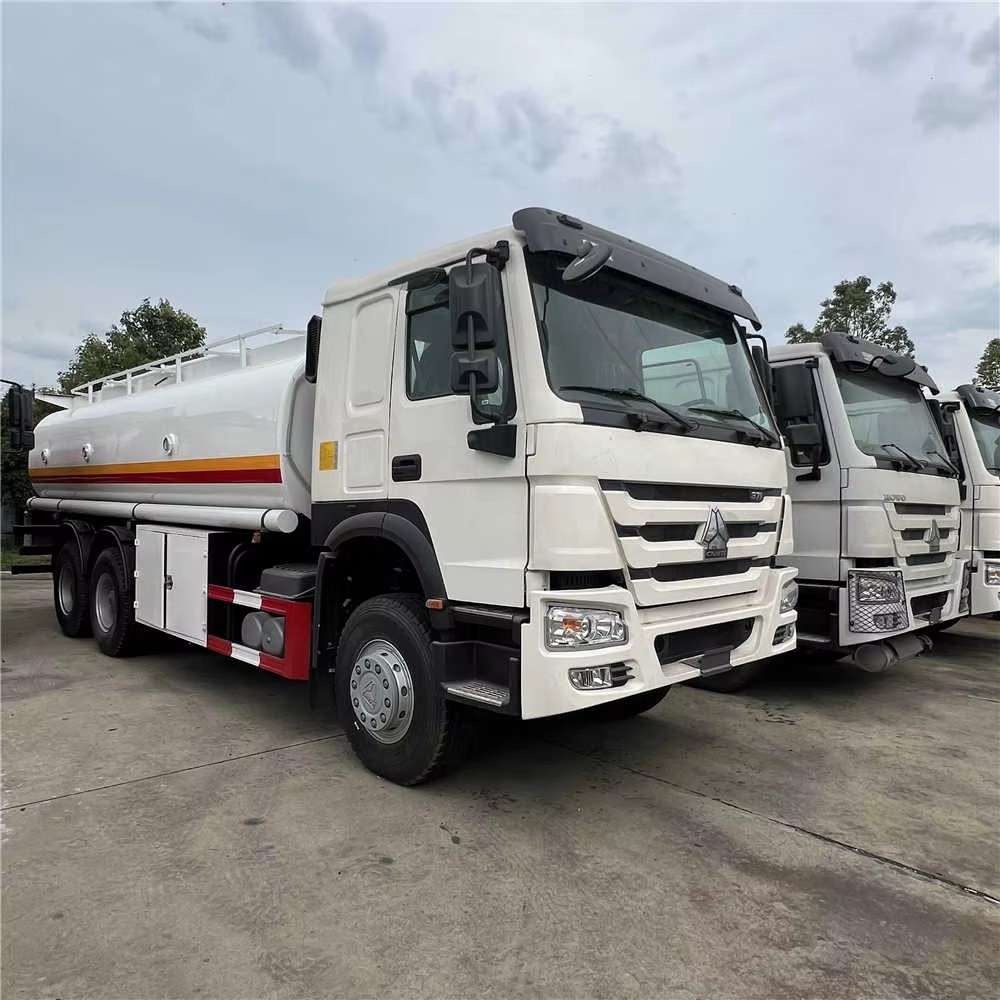

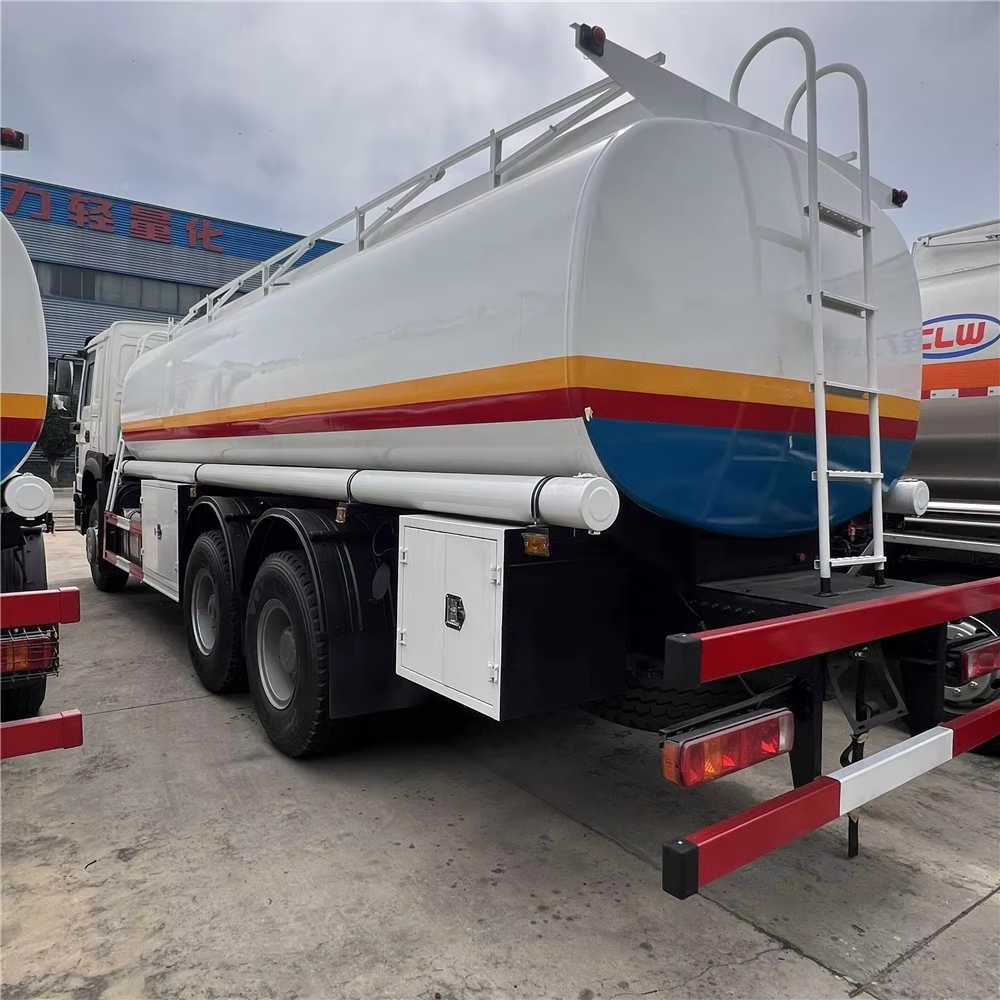

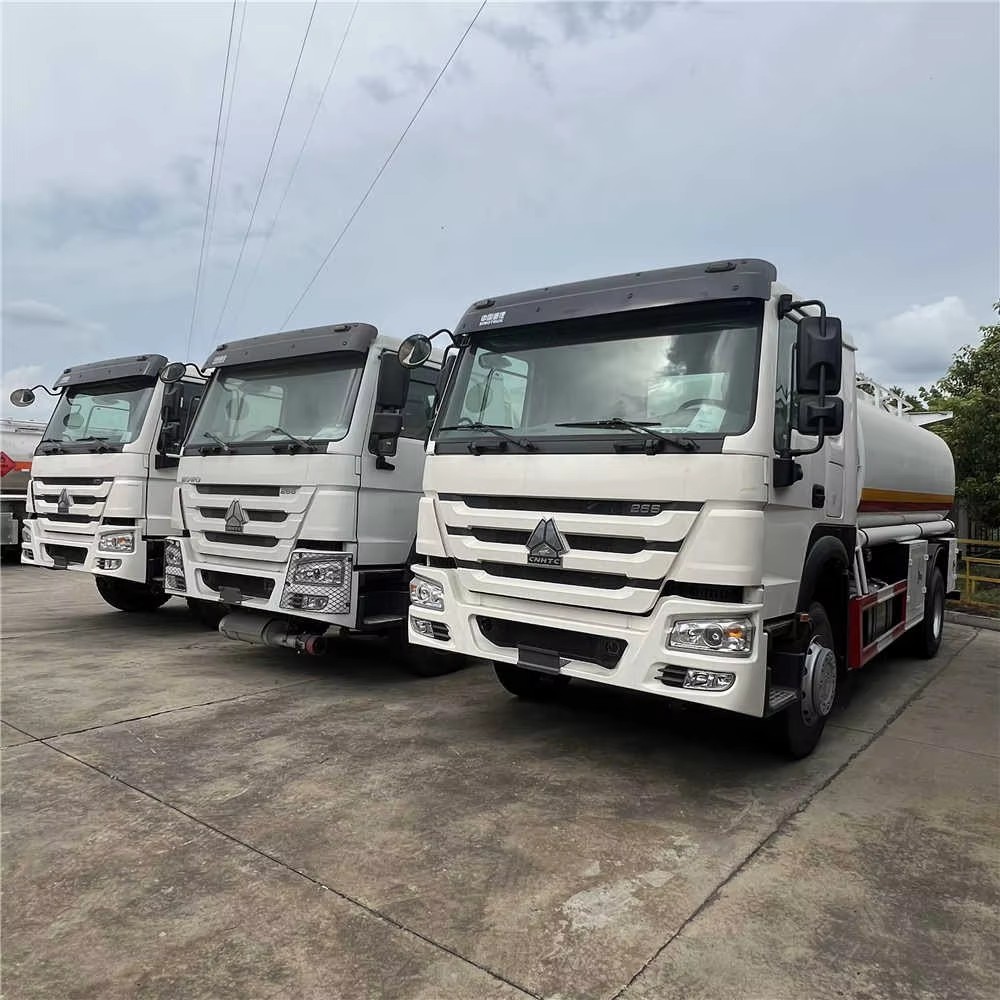

High Quality SINOTRUK HOWO 6*4 Heavy Duty Fuel Dispenser Truck 20000L Oil Tank Truck
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760159935960437.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760159935117221.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760159935178814.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251011/1760159937939785.jpg)
![[pics:title]](/static/upload/image/20251011/1760159935960437.jpg)
![[pics:title]](/static/upload/image/20251011/1760159935117221.jpg)
![[pics:title]](/static/upload/image/20251011/1760159935178814.jpg)
![[pics:title]](/static/upload/image/20251011/1760159937939785.jpg)
[Vehicle Technical Parameters] | |
Product Name | Fuel Tanker Truck |
Curb Weight(Kg) | 9600 |
Boundary Dimension(mm) | 10350*2496*3350 mm |
Tank Volume(m³) | 22 |
Tank Thickness（mm） | 5 |
Tank Body Material | 304 Stainless Steel/Q235 Carbon Steel |
Anti Wave Plate | yes |
Operating Ambient Temperature（°C） | -20-45 |
Manhole Cover | European standard |
Emergency Shut Off Valve | yes |
Oil Gas Recovery Unit | yes |
Anti-Overflow Alarm Device | yes |
Fuel Loading method | Bottom filling |
Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | Customized to your needs |
Maximum Speed（km/h） | 95 |
[Chassis Technical Parameters] | |
Chassis Brand | HOWO |
Type of Fuel | Diesel Oil |
Engine Power（KW） | 257KW |
Front Wheel Braking | Disc brake |
Front Axle/Rear Axle（t） | 7/18 |
Gearbox | 10 Speed Manual |
Brake | Air brake |
Front Wheel Braking | Disc brake |
Number of Axles | 2 |
Wheelbase (mm) | 4575+1400 |
Number of Tires | 10 |
Tyre Specification | 11.00R20 18PR |
