Model

PST5043XJHN

Overall dimensions(mm)

5450*2011*2676

Wheelbase(mm)

3406

GVW (kg)

3550

Kerb Weight (kg)

2440

Ground clearance (mm)

178

Cab

Double row,2+3 seats,A/C,USB...

Fuel Type:

Diesel

Fuel tank volume （L）：

76

Engine Model

4KH1CT6H1

Engine works

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel

Exhaust displacement ml:

2999 ml

Engine power :

143HP/105Kw

Maximum torque (Nm/rpm)

320

Emission standards

Euro 6

Drive System

4x4

Transmission

MSB 5 speed

Max Speed km/h:

140

Tire Size

245/70R17LT, 4pcs + 1 spare tire

Brake system

Front ventilated disc type, rear solid disc type

Rated capacity (including driver)

7-8

Medical Alert Appearance

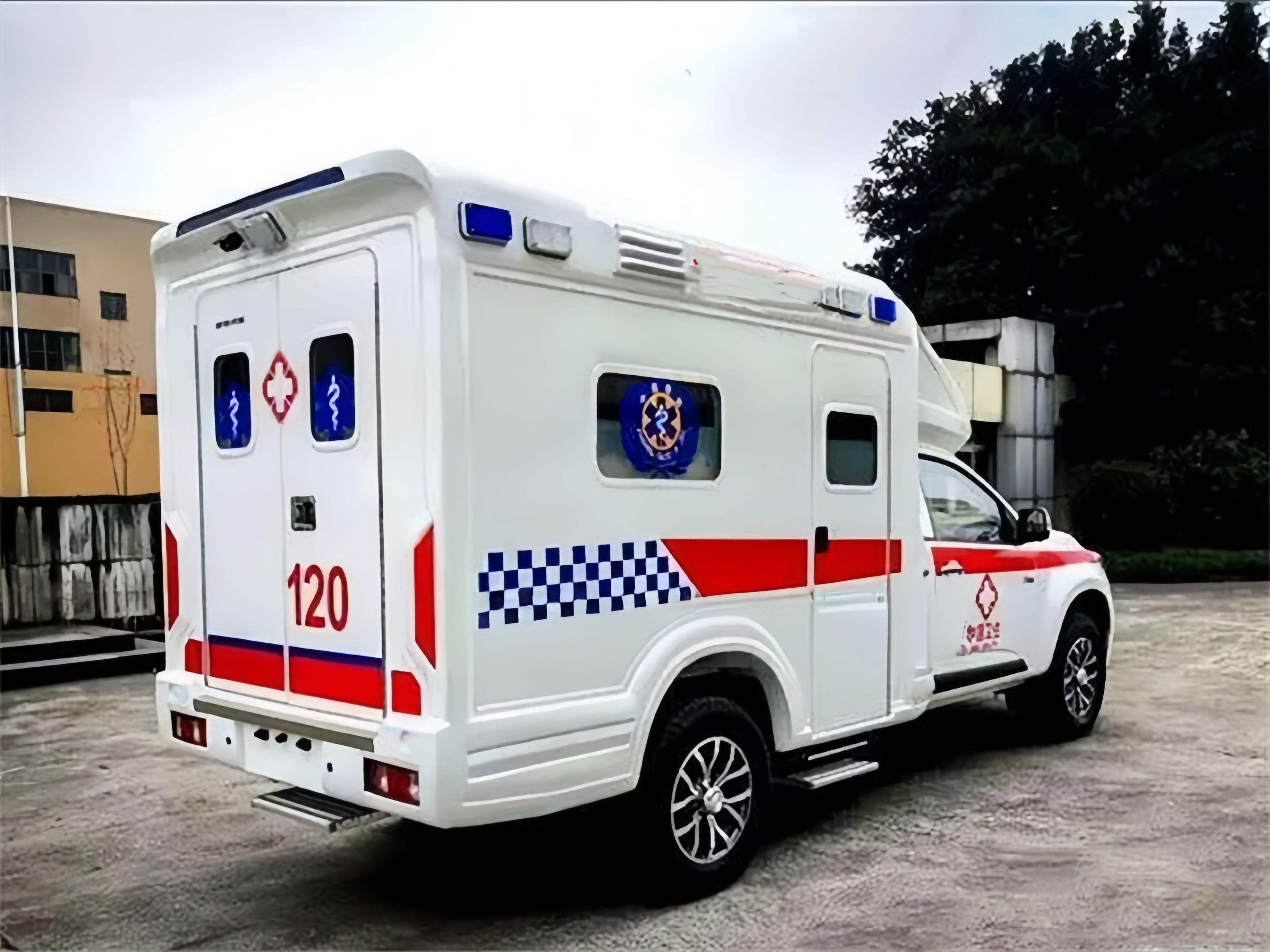

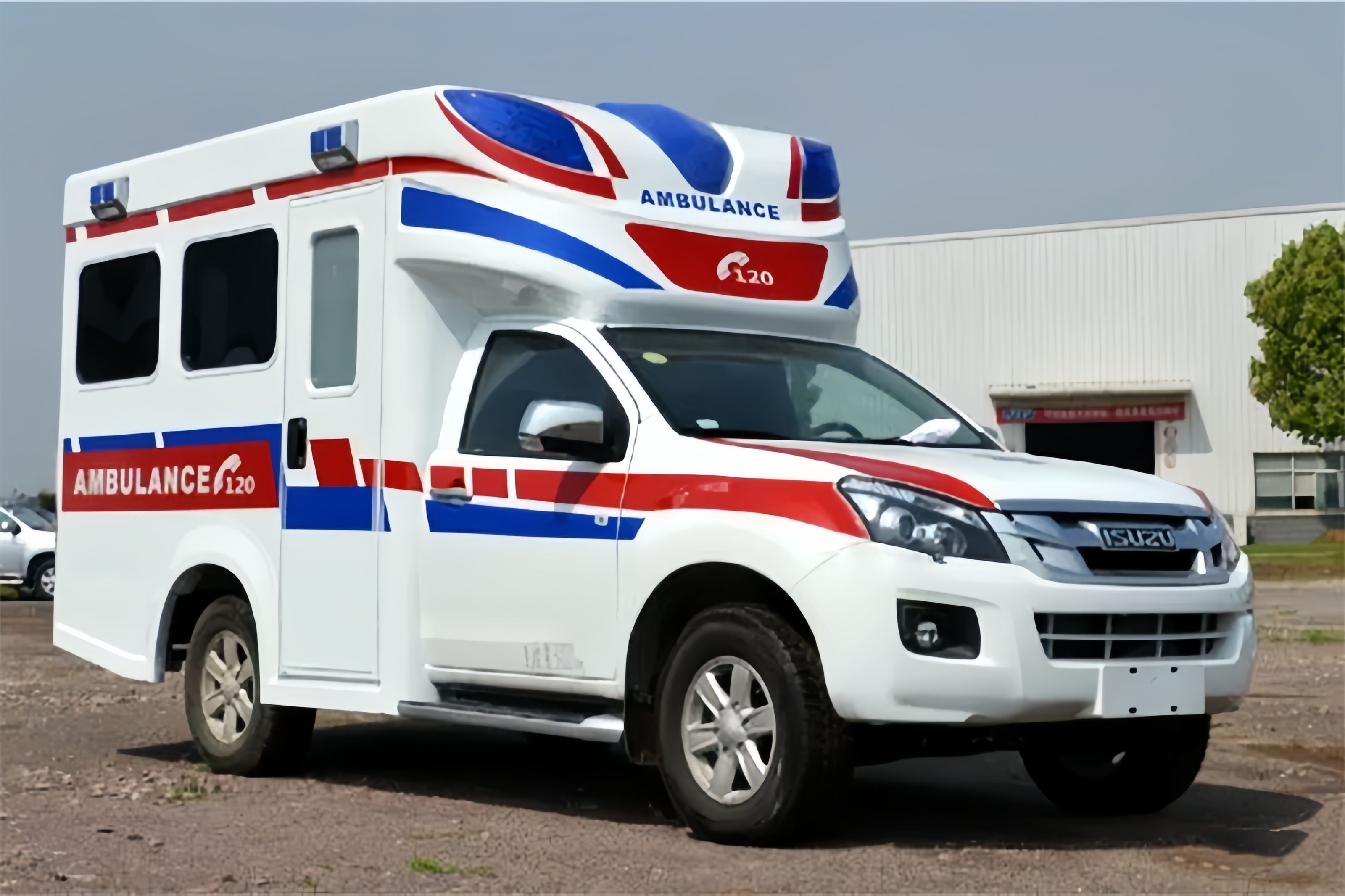

Appearance of vehicle

The car body is white, with body color strips and first aid signs, bright and eye-catching colors. The windows of the medical
cabin are pasted with dark colors. Solar film (black film on the left window of the medical cabin, 2/3 frosted glass film on the
right rear window)

Warning lights

1. Alarm assembly 1 set: embedded warning light, 100W speaker, alarm handheld.
2. LED sign light (strobe) 1 set: 64 LED (blue), 2 LED (white), a total of 6 lights.

Medical cabin rescue facilities

Rescue system

Automatic loading stretcher: The frame is made of high-quality aluminum alloy, which is light, strong and easy to operate. Through
operation, the stretcher carrying the patient can be pushed into or pulled out of the ambulance quickly and smoothly. The backrest
is supported by an adjustable structure, and the backrest is adjustable. It is equipped with a patient safety belt to facilitate
the fixation between the patient and the stretcher.

Stretcher assistance

Made of high-quality stainless steel, it assists the stretcher in getting on and off the vehicle.

Infusion bottle holder

Two foldable infusion bottle holders (slide rail type) are installed on the top of the medical cabin.

Oxygen supply system

Special vehicle oxygen supply system assembly, equipped with 2units 10L steel oxygen cylinders, hidden oxygen pipeline, including
2 oxygen terminals, oxygen inhaler and pressure regulating valve

Medical power supply system

Medical cabin power system

1. 1000W intelligent inverter
2. Power control: 1 set of boat-shaped piano-style control panel.
3. 4 220V sockets

Cabin lighting

One set of embedded lighting (4 LEDs), two embedded infusion spotlights and one backfield lighting are installed on the inner
ceiling.

Intercom System

An intercom system is installed between the medical cabin and the cockpit.

Disinfection system

UV disinfection lamp

Install a UV disinfection lamp on the upper part of the middle partition

Medical cabin ventilation system

1 ventilation fan on the top of the medical cabin

Medical cabin air conditioning and heating system

Air conditioning/heating

1 set of independently controllable rear air conditioning and rear heating, with independent cooling and heating controls to
reasonably regulate the temperature in the medical cabin.

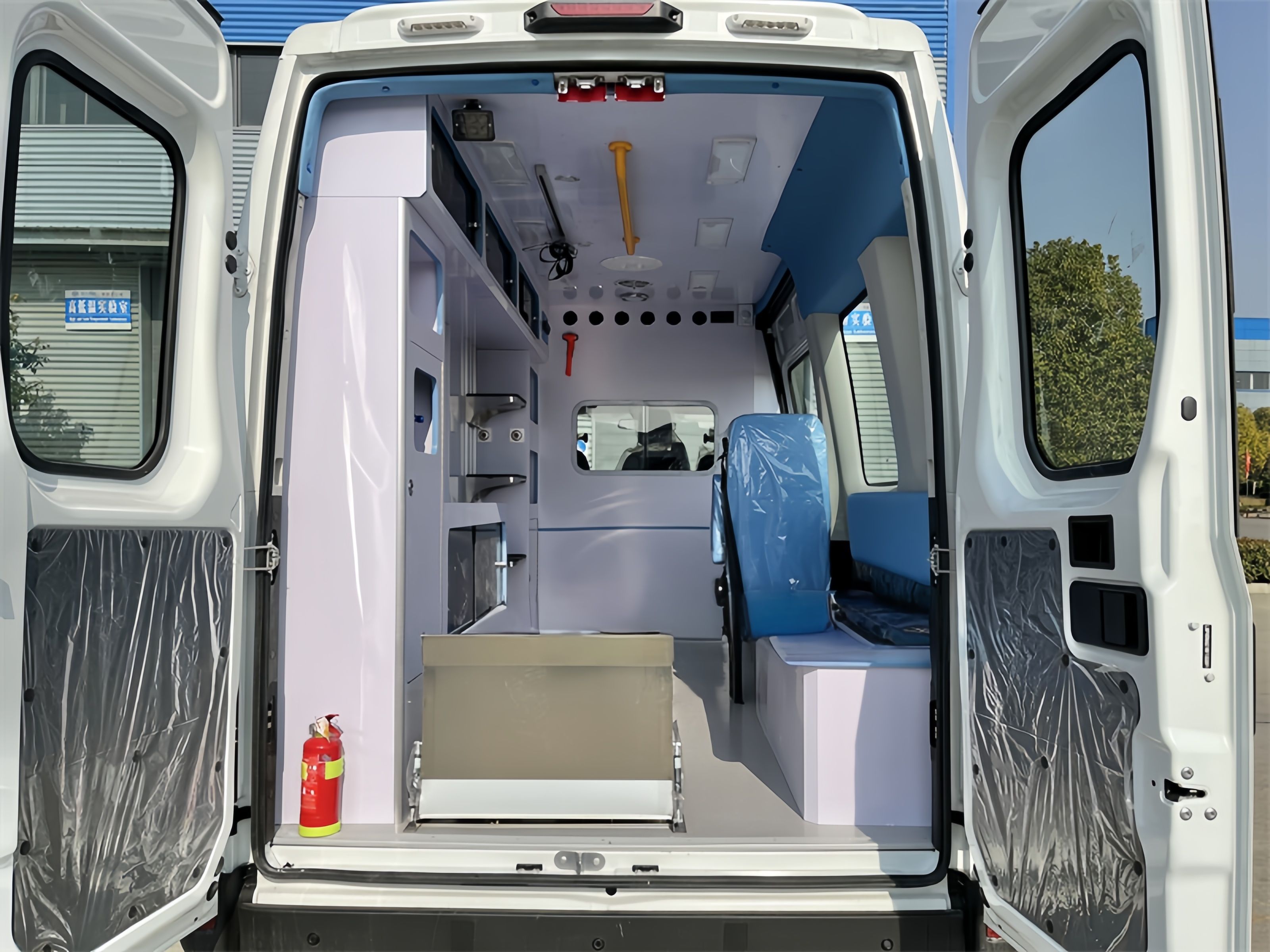

Medical cabin cabinet interior configuration

Middle partition wall assembly

A set of new environmentally friendly material partition wall is installed between the cab and the medical cabin, and a sliding
glass observation window is set on the partition wall to facilitate observation and communication between the front and rear
cabins.

Cabinet assembly

Install 1 set of long equipment cabinet made of new environmentally friendly materials, with sliding window storage space on the
cabinet body Install 1 set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2 10L
oxygen cylinders; Install 1 set of wall cabinet made of new environmentally friendly materials, with sliding window structure for
the wall cabinet door, and integrated storage and other functions.

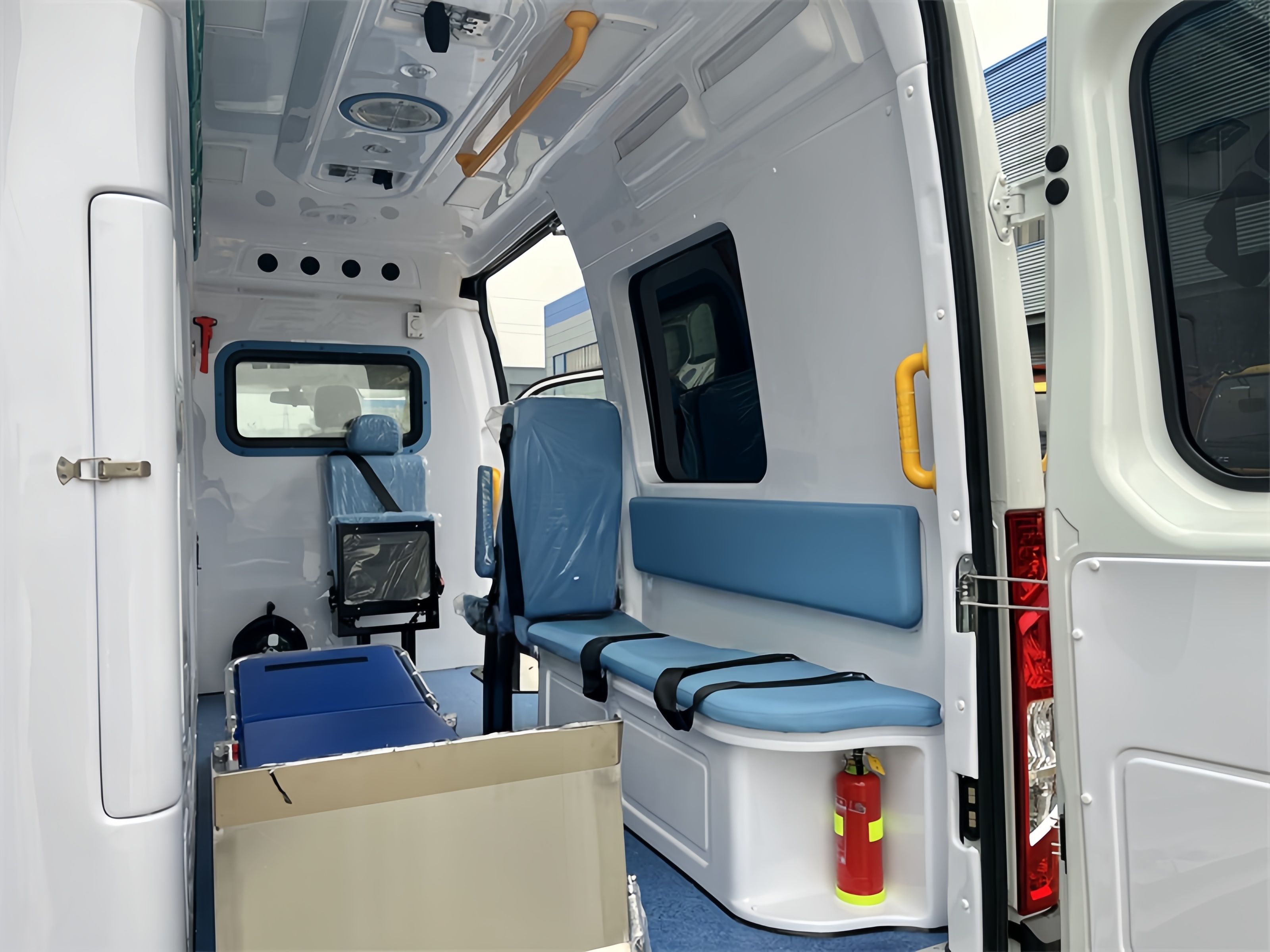

Medical cabin interior

Medical cabin interior: Made of flame-retardant composite materials, waterproof, mildew-proof, antibacterial, and easy to clean.
Medical cabin floor: Made of integral new lightweight materials, the medical floor is acid-base, corrosion-resistant,
wear-resistant, anti-static, and easy to clean. The raised edges around the edges prevent dust accumulation and are anti-slip, and
are easy to wash with water.

Auxiliary facilities

Seats

1 set of seats: right cabinet-style bed for two persons made of PVC material, with seat cushion and backrest covered with leather;
right cabinet-style bed with single folding seat in front.

Fire extinguisher

1 fire extinguisher (1KG)

Dirt Bucket

1 units 5L stainless steel waste bucket
Safety handrail
Top safety handrail 1 pair

Safety

ABS Brake System

✓

✓

✓

Central Door Locking

✓

✓

✓

Driver Airbag

✓

✓

✓

Comfort

Power Windows

✓

✓

✓

Remote Key

✓

✓

✓

Factory HVAC (Driver Cabin)

2 sets

2 sets

2 sets

Triple Driver Seats

✓

✓

✓

Exterior

White Body + Red Reflective Strips

✓

✓

✓

2/3 Frosted Medical Window Film

✓

✓

✓

Warning System

100W Siren

✓

✓

✓

Front 3-Eye Warning Light

✓

-

-

Rear Beveled Strobe Lights

2

2

2

Side Blue/White Strobe Lights

6

4

4

Electrical

Pure Sine Inverter (500W/1000W)

500W

500W

1000W

220V Sockets

2

2

4

12V Sockets

1

1

2

UV Disinfection Lamp

✓

✓

✓

Medical Cabin

Oxygen System (10L Cylinders x2)

✓

✓

✓

Auto-loading Stretcher

✓

✓

✓

Sliding IV Pole

-

-

✓

Antibacterial Flooring (Blue)

✓

✓

✓

Partition

Sliding Window Partition

PVC Partition

Polymer Hard Partition

Storage

Left Medical Cabinet

Left Overhead Cabinet

Triple-layer Equipment Rack

Oxygen System

2 Ports + 1 Humidifier

2 Ports

2 Ports + Ventilator Port

Seating

1 Doctor + 2 Bench Seats

1 Doctor + 2 Bench Seats

3 Doctor Seats

Ventilation

Bidirectional Fan

Bidirectional Fan

Electric Vent Fan

Ceiling

Original Roof

Original Roof

Polymer Hard Top

Negative Pressure System

Customizable

Rear Step

✓

Navigation + Rearview Camera

✓

Stretcher Compartment

✓

Scoop/Stair/Folding Stretchers

✓

ABS Interior Trim

Care/Premium only

1

Negative pressure system

Customizable

2

Rear-facing foldable seat

Optional

3

Stretcher compartment

Optional

4

Scoop/stair/folding stretchers

Optional

5

Middle/rear boarding steps

Optional

6

Three-tier equipment rack

(Care Model only)

7

Three-position adjustable stretcher

(Care Model only)
