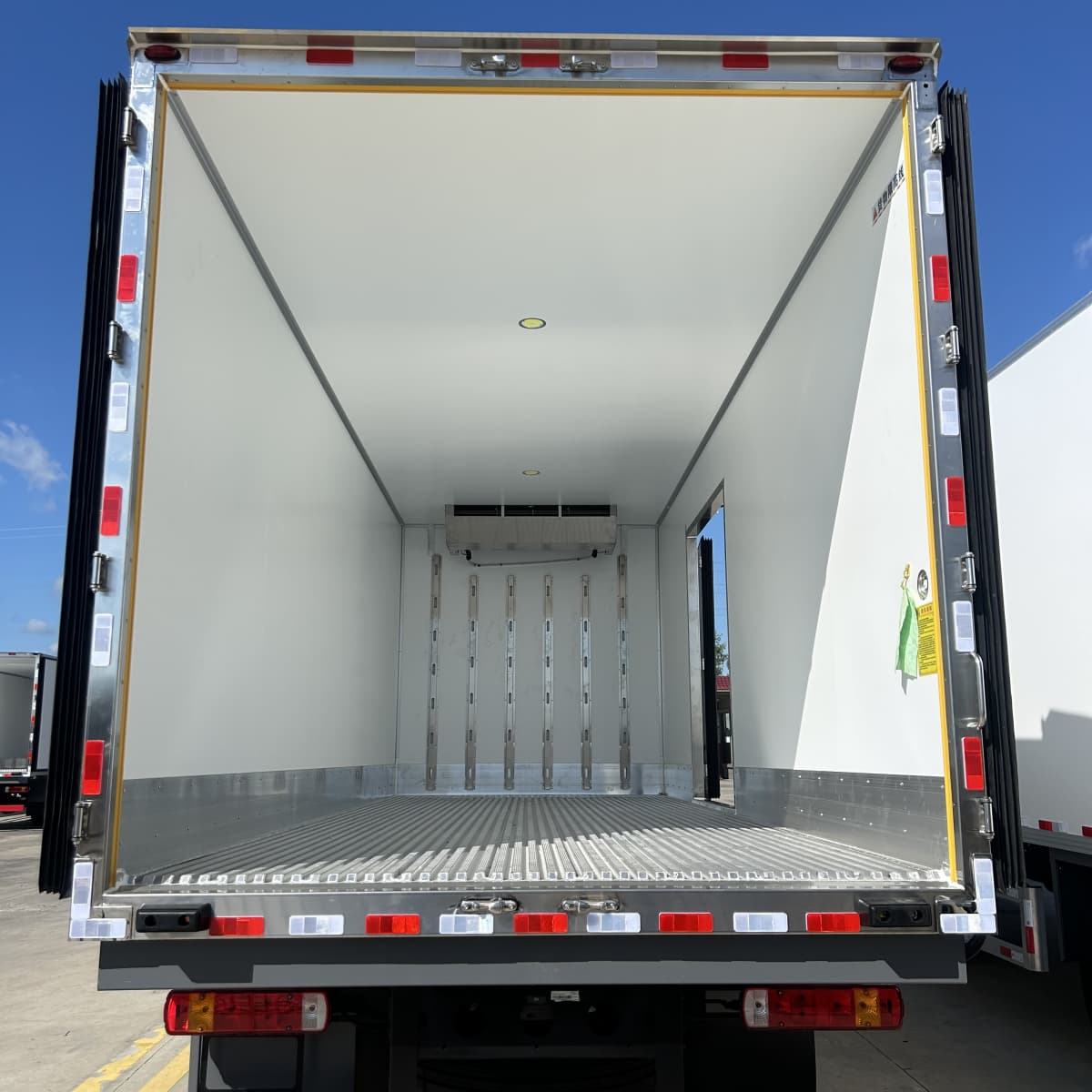

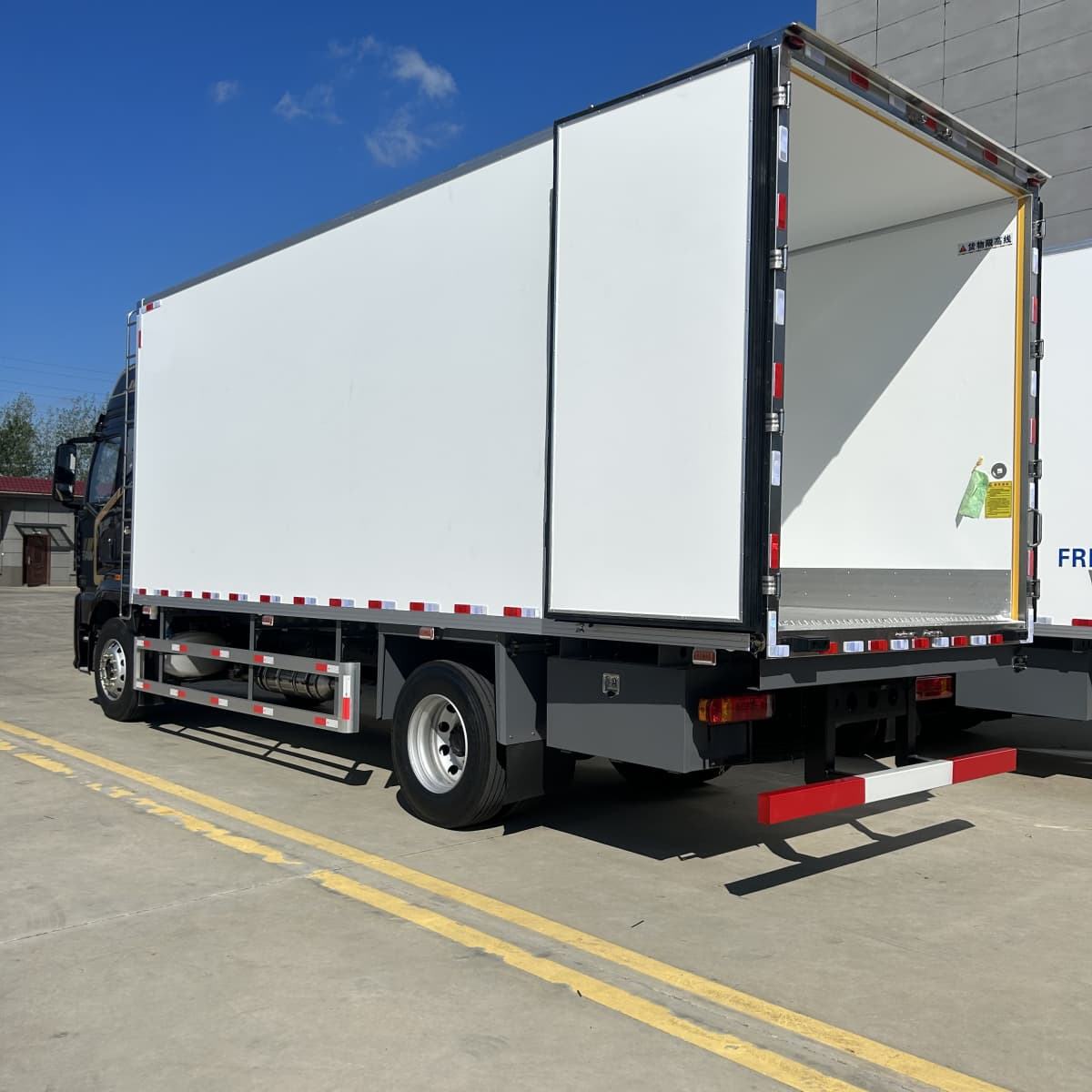

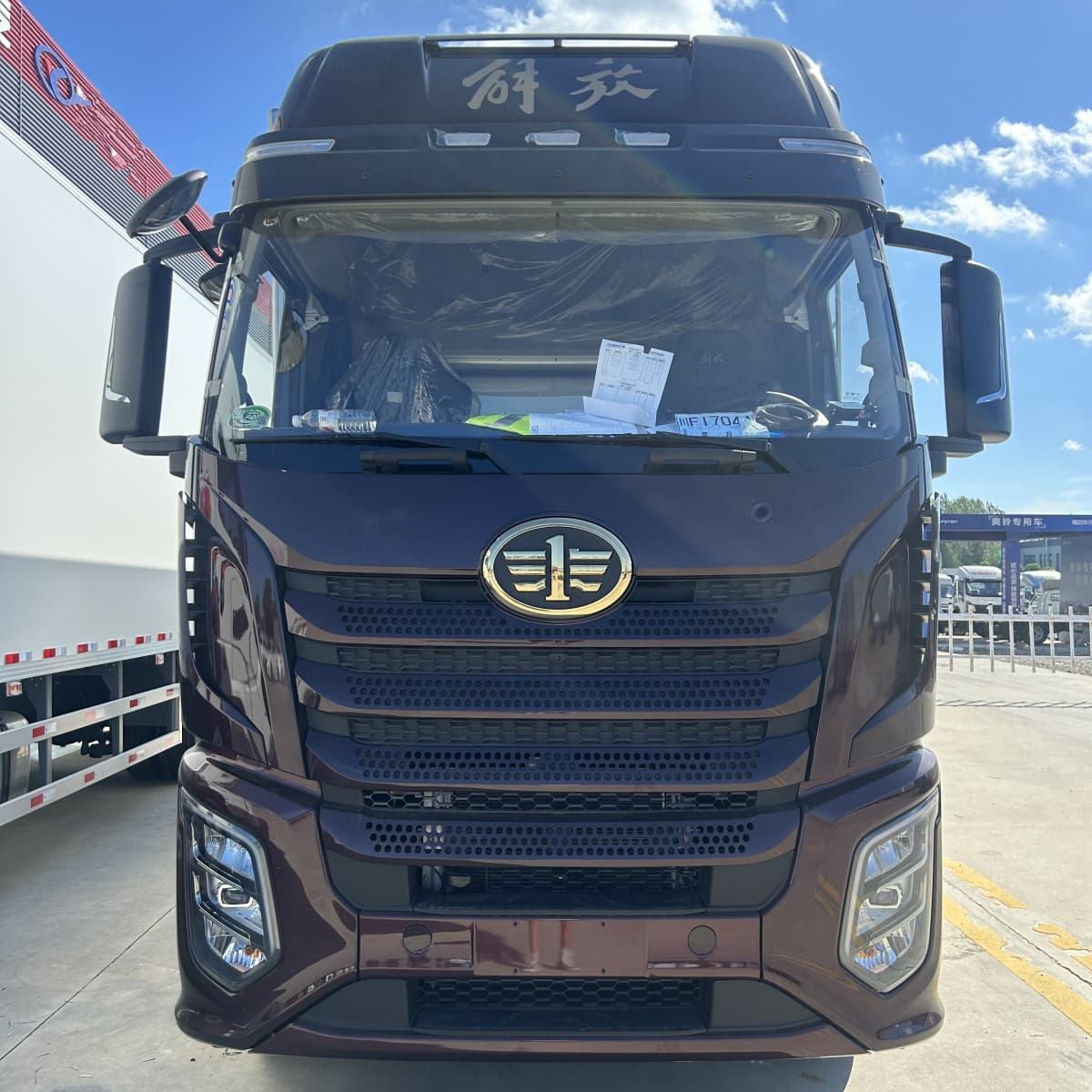

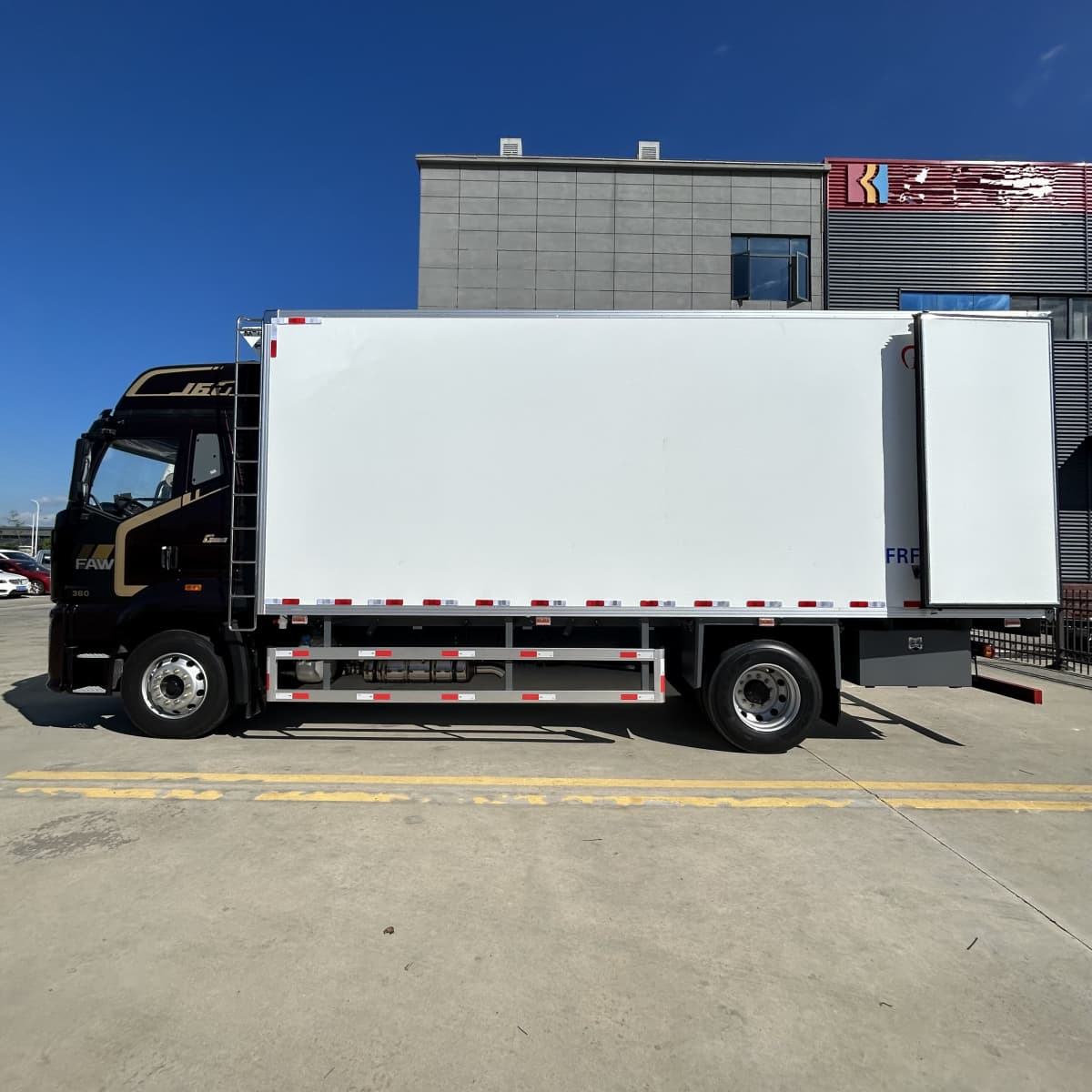

6.8m Refrigerated Truck , 3600L Large Capacity , Euro V Diesel & Electric Option
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280990518432.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280991254644.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280991487954.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280991814888.jpg)
![[pics:title]](/static/upload/image/20251012/1760280990518432.jpg)
![[pics:title]](/static/upload/image/20251012/1760280991254644.jpg)
![[pics:title]](/static/upload/image/20251012/1760280991487954.jpg)
![[pics:title]](/static/upload/image/20251012/1760280991814888.jpg)
[Technical Parameters of the Entire Vehicle] | |
Kerb Weight (Kg) | Refrigerated Truck |
Overall Dimensions(mm) | 9200*2600* 3995 |
Box Volume(m³) | 42 |
Box Size(mm) | 6800*2440*2550 |
Refrigeration Temperature Range(℃) | -18°~+20° |
Refrigeration Capacity (w) | 8800 |
Condenser Size(mm) | 580×1310×380 |
Evaporator Size(mm) | 580×1310×380 |
Material of the Insulation Layer of the Box | Polyurethane Foam |
Insulation Thickness(mm) | 80 |
Chassis Technical Parameters] | |
Trade Name | CA |
Brake | automatically air-cut brake |
Type of Fuel | Diesel |
Front Axle/Rear Axle(t) | 5/10 |
Engine Power(kw) | 257 |
Gearbox | 8-Speed Transmission |
Number of Axles | 2 |
Wheelbase (mm) | 5000 |
Tire Size | 10.00R20 18PR |
[Technical Parameters of the Entire Vehicle]Kerb Weight (Kg)4200Overall Dimensions(mm)5995*2300*2800
