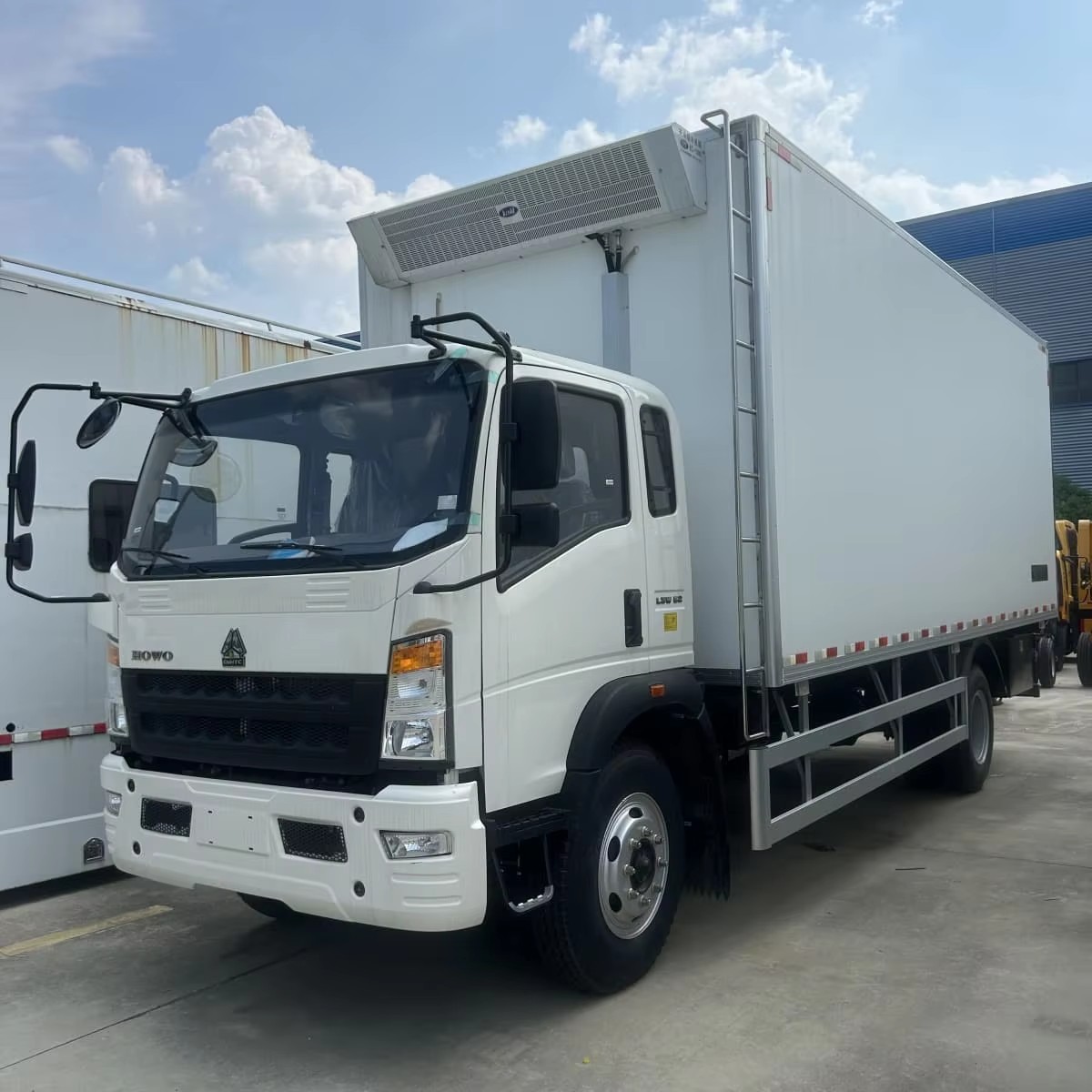

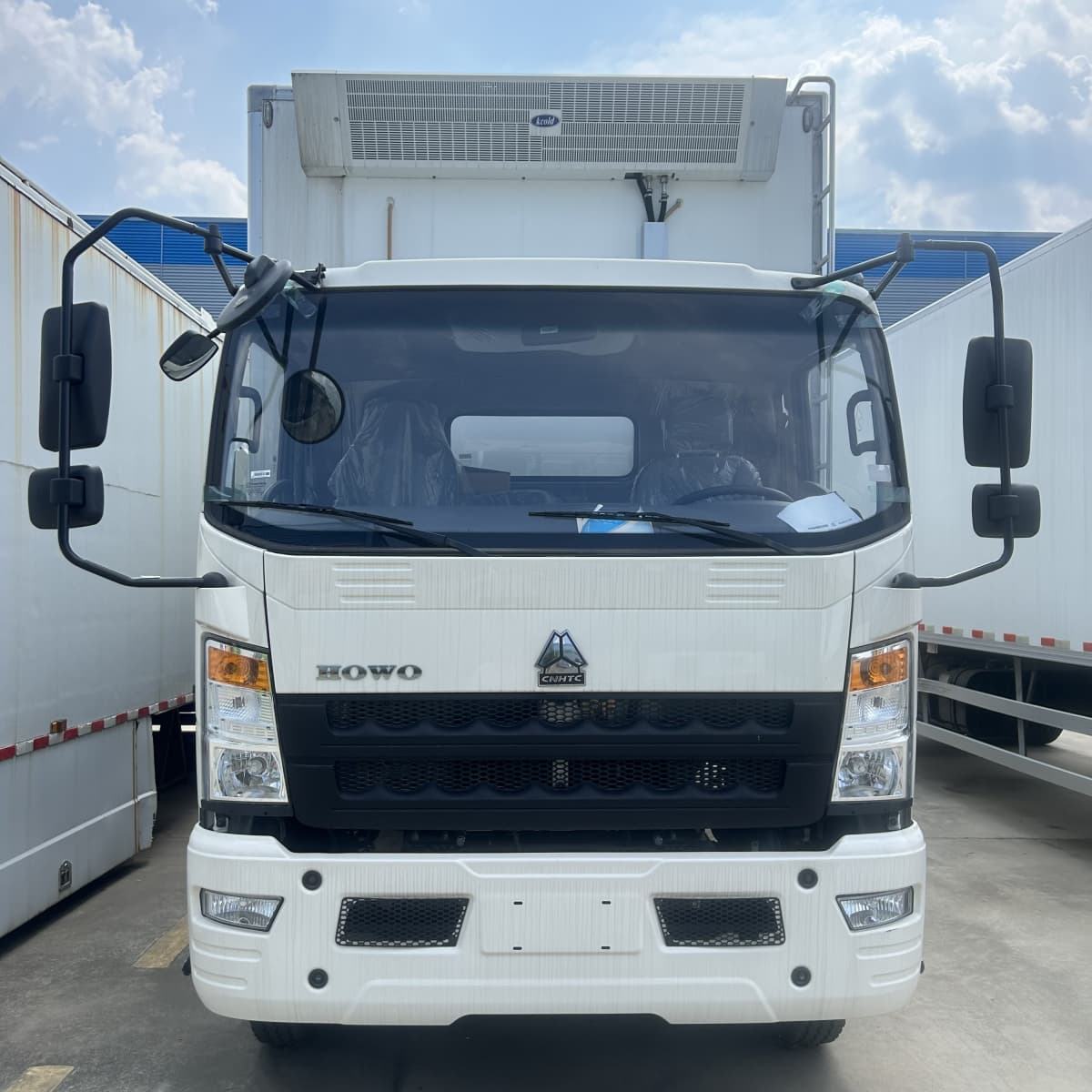

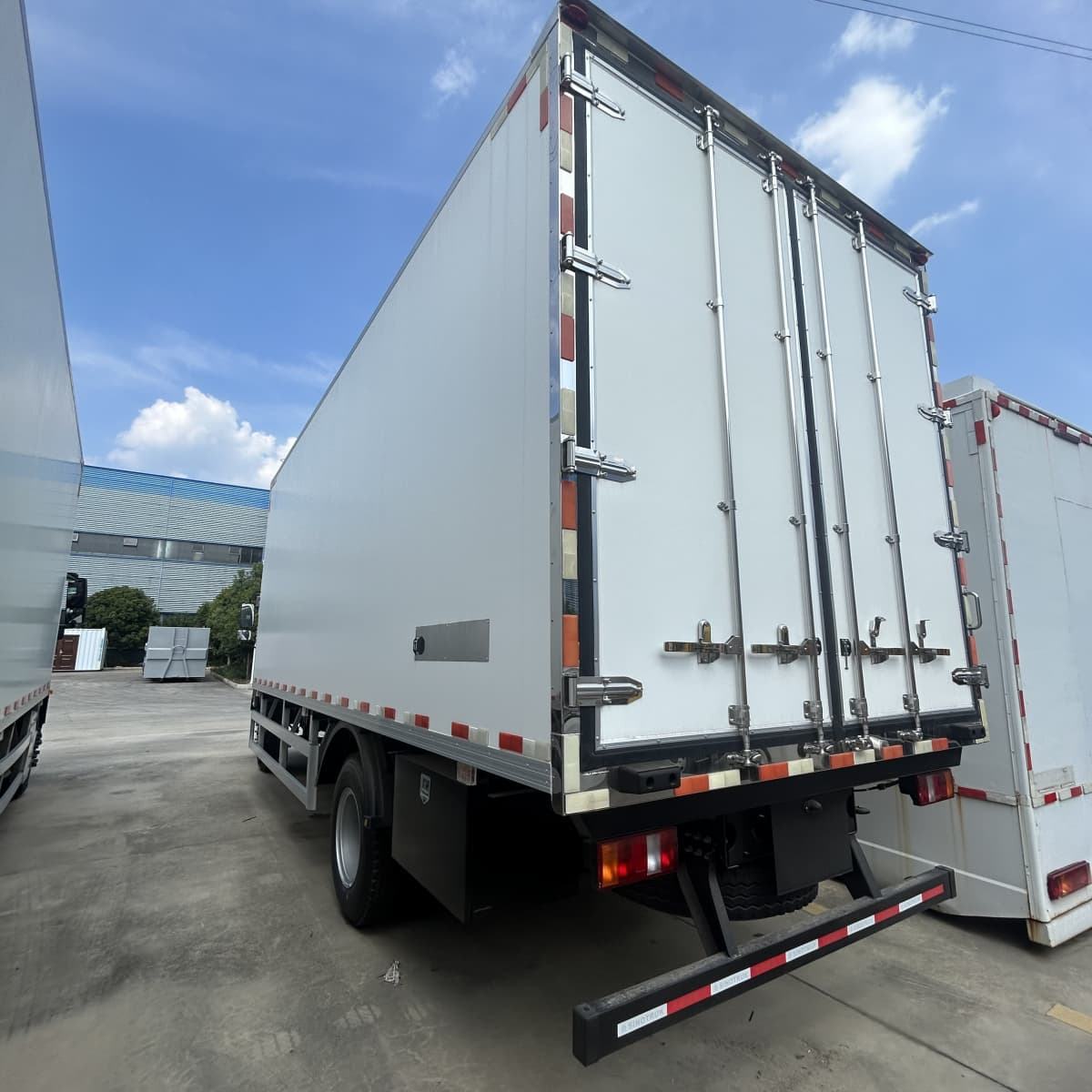

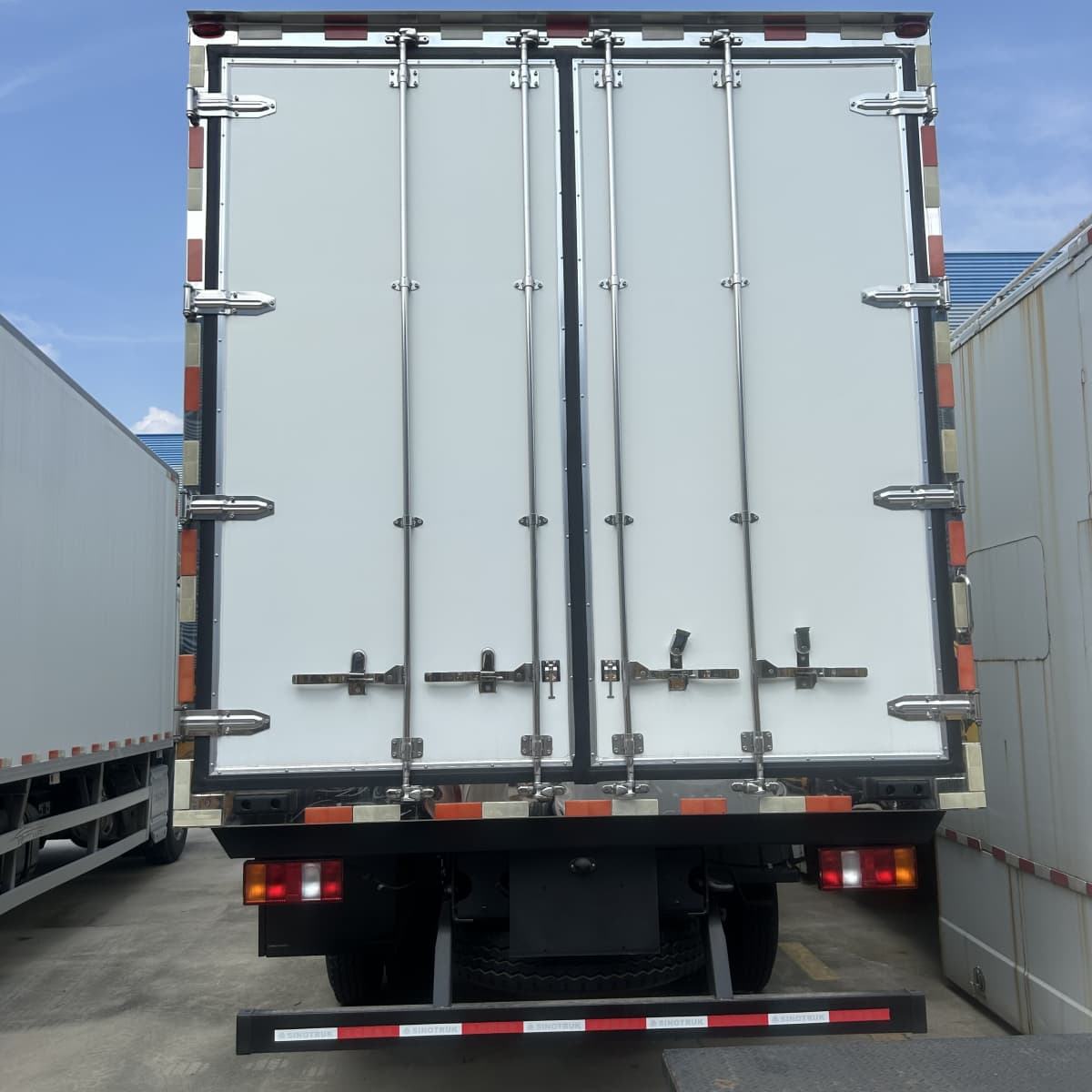

Factory Price HOWO 6m Frozen Box Truck , Custom Insulation & Temperature Control , Global Shippi
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280479776957.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280479344747.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280480149378.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760280481763690.jpg)
![[pics:title]](/static/upload/image/20251012/1760280479776957.jpg)
![[pics:title]](/static/upload/image/20251012/1760280479344747.jpg)
![[pics:title]](/static/upload/image/20251012/1760280480149378.jpg)
![[pics:title]](/static/upload/image/20251012/1760280481763690.jpg)
[Technical Parameters of the Entire Vehicle] | |
Kerb Weight (Kg) | 6500 |
Overall Dimensions(mm) | 7995*2520*3750 |
Box Volume(m³) | 36 |
Box Size(mm) | 6090*2350*2500 |
Refrigeration Temperature Range(℃) | -5~-18 |
Refrigeration Capacity (w) | 6680 |
Condenser Size(mm) | 580×1310×380 |
Evaporator Size(mm) | 580×1220×330 |
Material of the Insulation Layer of the Box | Polyurethane Foam |
Insulation Thickness(mm) | 80 |
Chassis Technical Parameters] | |
Trade Name | HOWO |
Brake | Air Brake/Oil Brake |
Type of Fuel | Diesel |
Front Axle/Rear Axle(t) | 4.5/10 |
Engine Power(kw) | 139 |
Gearbox | 8-Speed Transmission |
Number of Axles | 2 |
Wheelbase (mm) | 4500 |
Tire Size | 9.00R20 16PR |
[Technical Parameters of the Entire Vehicle]Kerb Weight (Kg)4200Overall Dimensions(mm)5995*2300*2800
