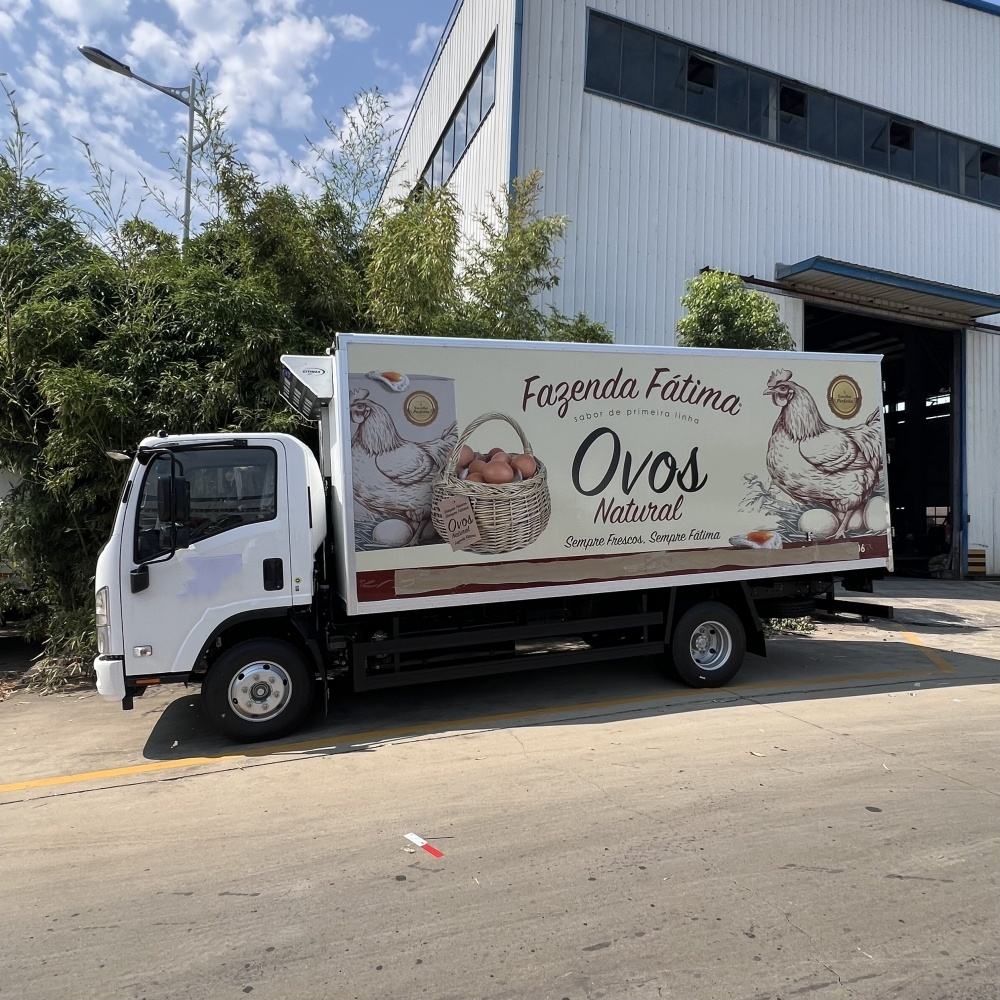

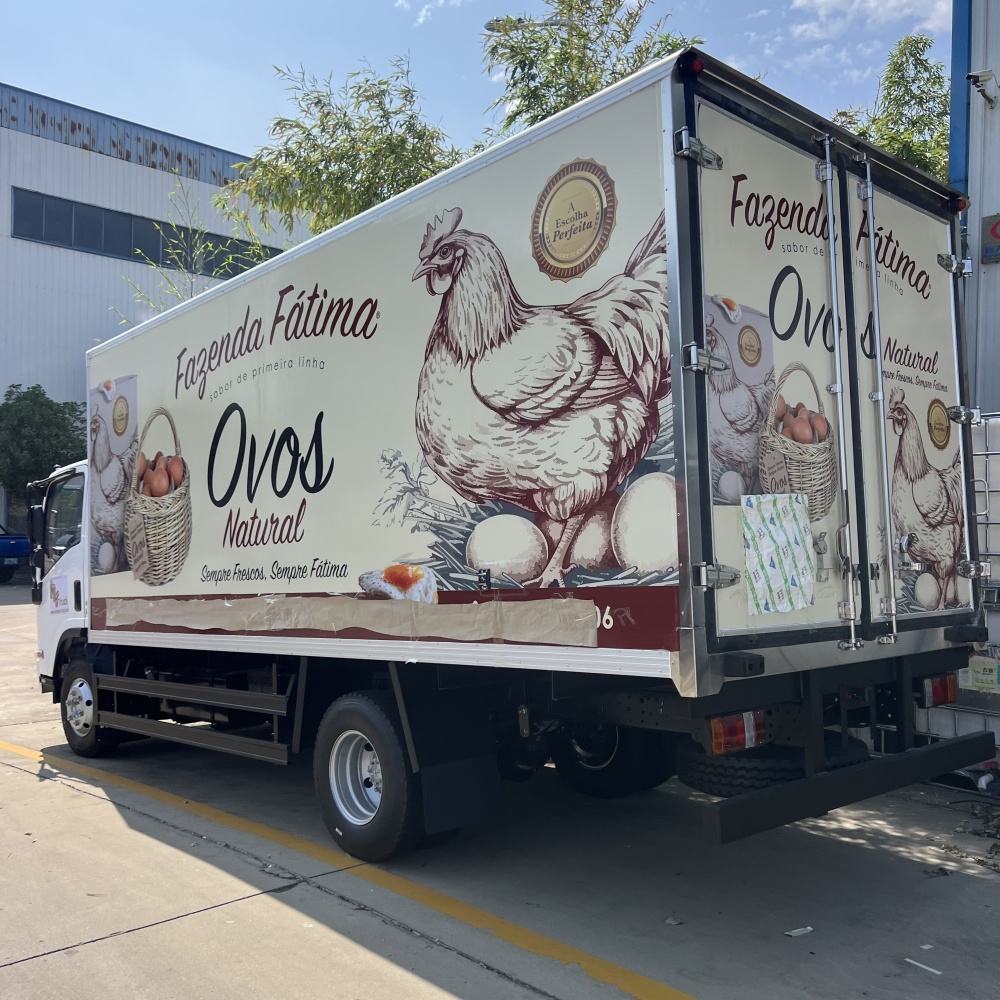

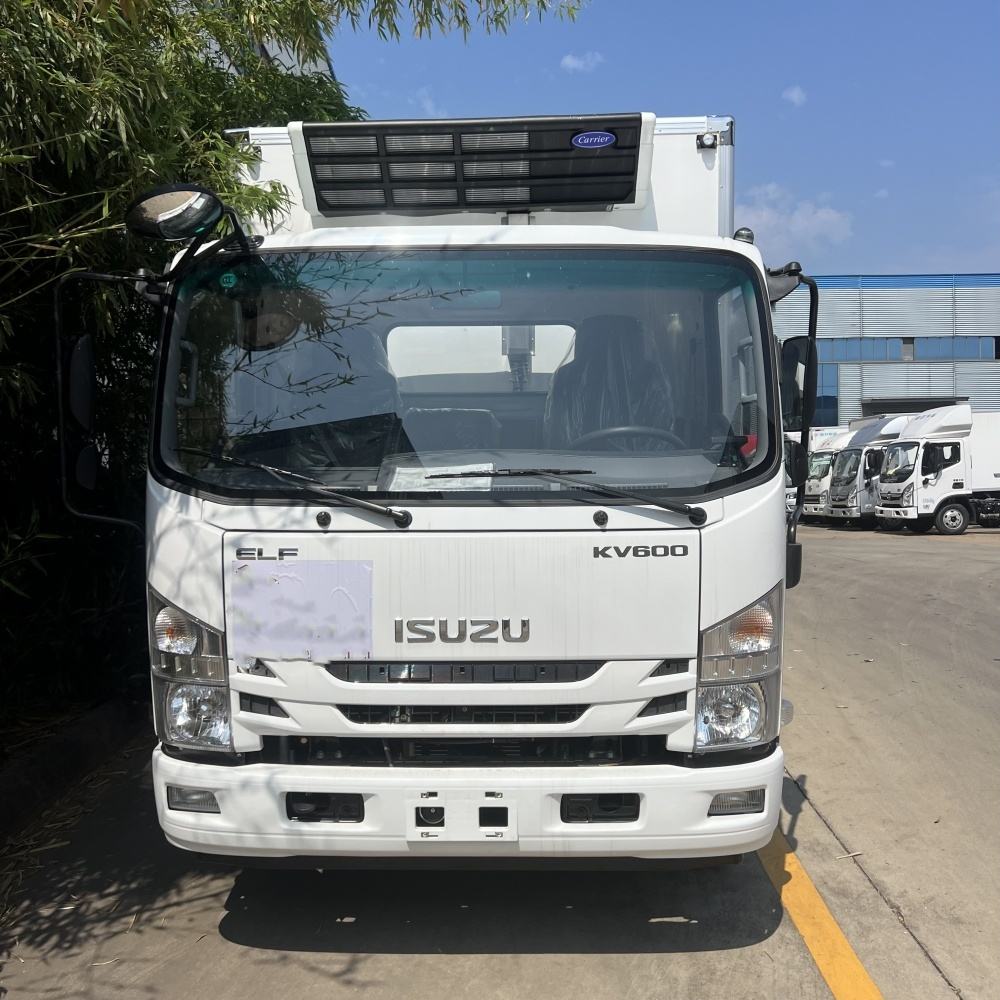

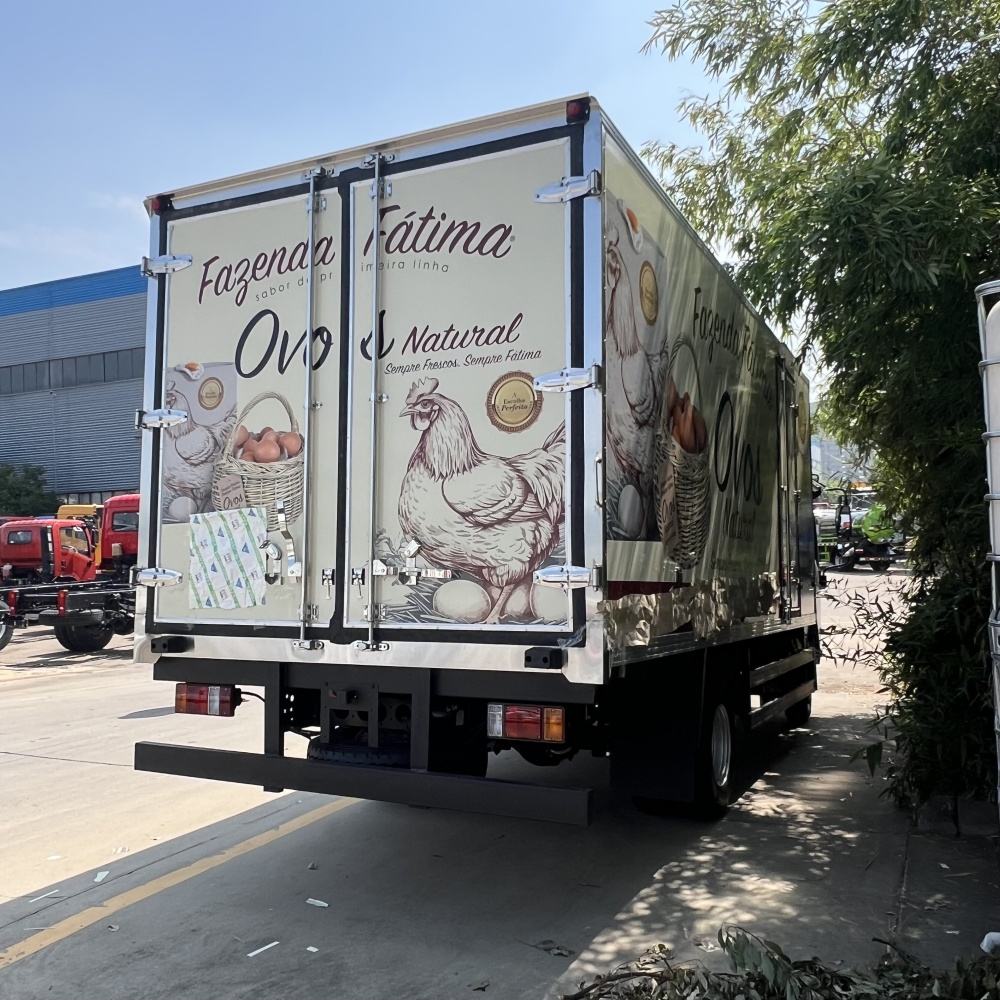

New 5 Tons Isuzu Cargo Van Truck Freezer Food Refrigerator Manual Transmission Diesel Fuel Euro 4 St
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760270821793366.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760270821647094.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760270821416723.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251012/1760270822604972.jpg)
![[pics:title]](/static/upload/image/20251012/1760270821793366.jpg)
![[pics:title]](/static/upload/image/20251012/1760270821647094.jpg)
![[pics:title]](/static/upload/image/20251012/1760270821416723.jpg)
![[pics:title]](/static/upload/image/20251012/1760270822604972.jpg)
[Technical Parameters of the Entire Vehicle] | |
Kerb Weight (Kg) | 7360 |
Overall Dimensions(mm) | 7600*2300*3050mm |
Box Volume(m³) | 23 |
Box Size(mm) | 5600*2100*2100mm |
Refrigeration Temperature Range(℃) | -5~-18 |
Condenser Size(mm) | 980×1310×380 |
Evaporator Size(mm) | 780×1220×330 |
Material of the Insulation Layer of the Box | Polyurethane Foam |
Insulation Thickness(mm) | 80 |
Chassis Technical Parameters] | |
Trade Name | 1suzu |
Brake | Air Brake |
Type of Fuel | Diesel |
Front Axle/Rear Axle(t) | 3/6 |
Engine Power(kw) | 97 |
Gearbox | 5-Speed Transmission |
Number of Axles | 2 |
Wheelbase (mm) | 3815 |
Tire Size | 7.50R16 |
