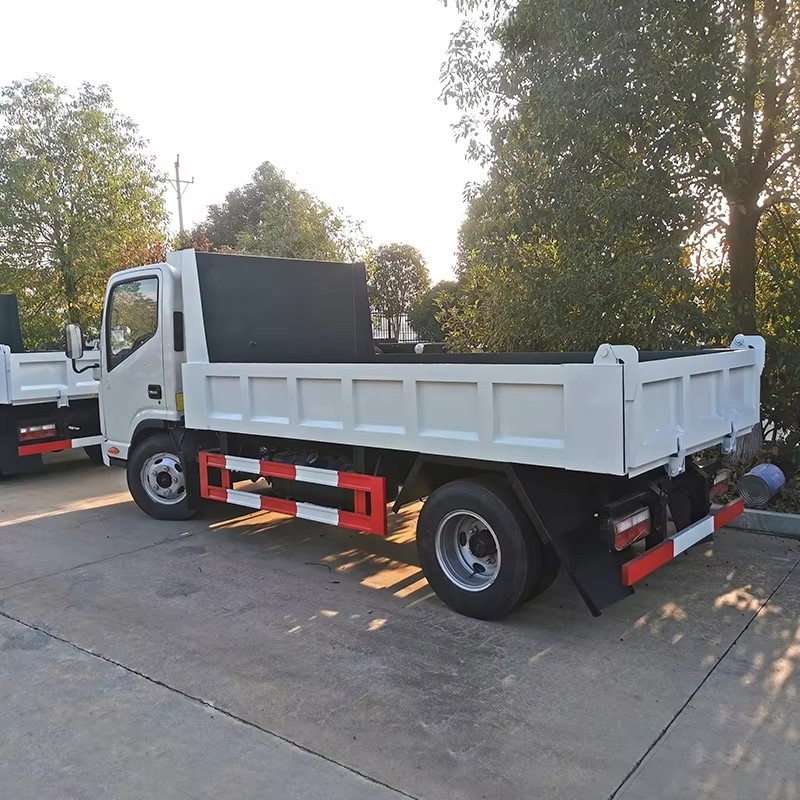

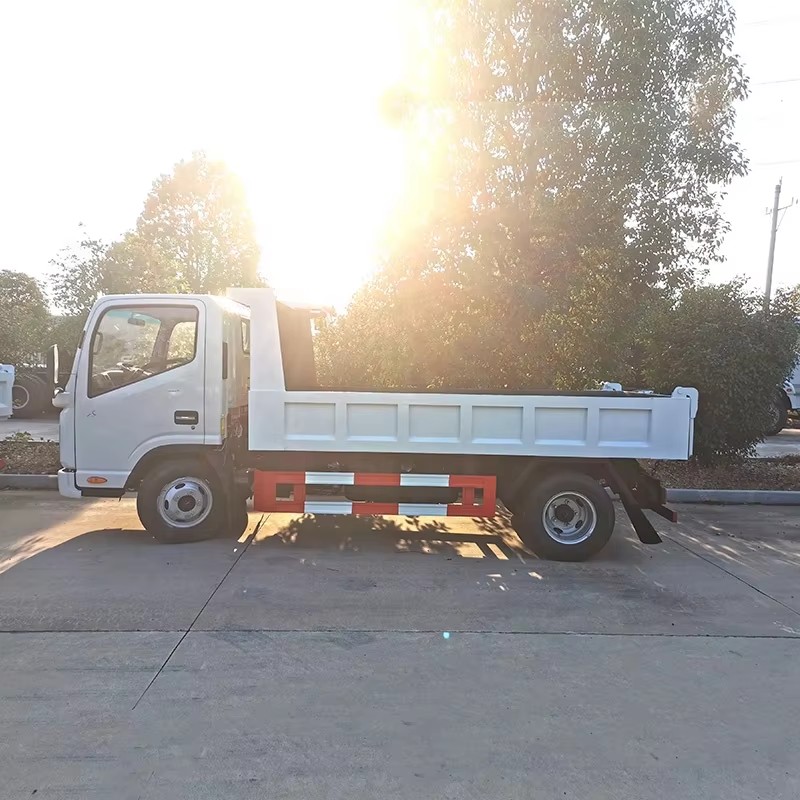

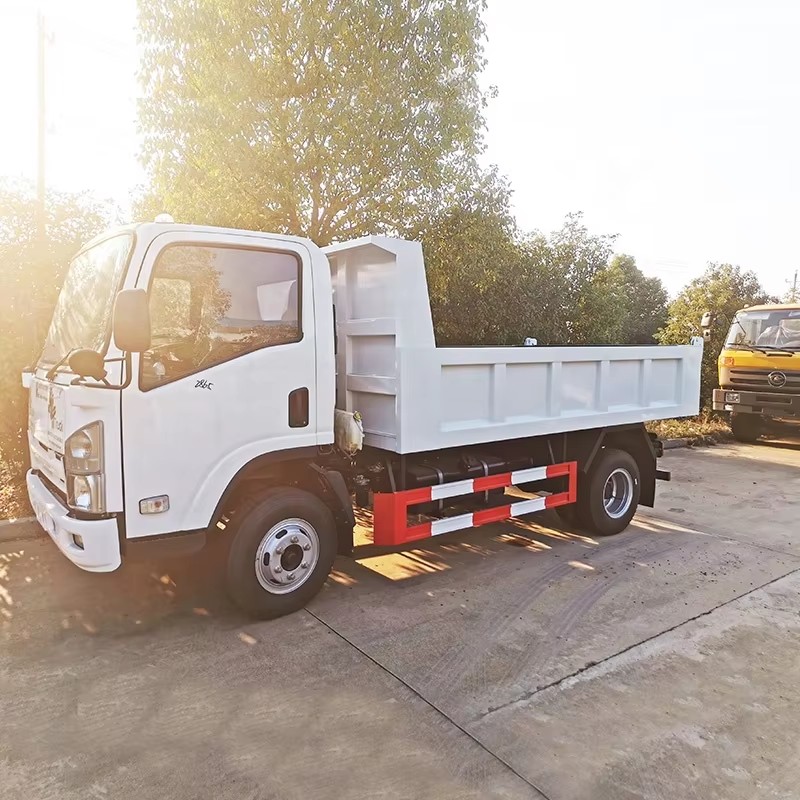

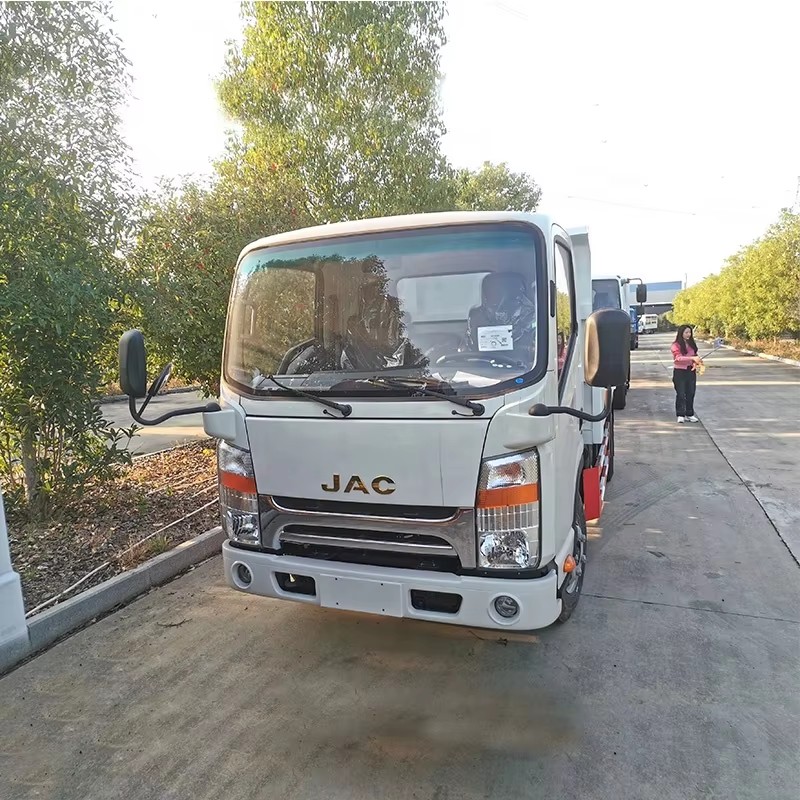

JAC Mini Dump Truck Customized Diesel 1Ton 3Ton 5Ton Tipper Truck for Sale
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761293754333806.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761293754739989.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761293754409247.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761293754336711.jpg)
![[pics:title]](/static/upload/image/20251024/1761293754333806.jpg)
![[pics:title]](/static/upload/image/20251024/1761293754739989.jpg)
![[pics:title]](/static/upload/image/20251024/1761293754409247.jpg)
![[pics:title]](/static/upload/image/20251024/1761293754336711.jpg)
Vehicle Technical Parameters | ||
Product Name | Dump Truck | |
Kerb Weight (Kg) | 3500 | |
Overall Dimensions(mm) | 5790×2020×2680 | |
Total Mass(Kg) | 4495 | |
Cargo Tank Volume(m³) | 4 | |
Cargo Tank Dimension（mm） | 3700×2000×550 | |
Tank Body Material | Q235 Carbon Steel | |
Cargo Tank Thickness（mm） | Side 3 Bottom 4 | |
Cargo Tank Lifting Method | Hydraulic cylinder lifting | |
Number of Cylinders（pcs） | 1 | |
Cylinder Position | Girder front | |
Cylinder Diameter（mm） | 100 | |
Door Position | Rear/Side/Top | |
Chassis Technical Parameters | ||
Chassis Brand | JAC | |
Brake | Air Brake/Oil Brake | |
Fuel Type | Diesel | |
Engine Power（kw） | 68 | |
Front Axle/Rear Axle (t) | 2.2/4 | |
Gearbox Model | 5-Speed Manual | |
Number of Axles | 2 | |
Wheelbase (mm) | 3360 | |
Number of Tires | 6 | |
Tire Size | 6.50R16 | |
