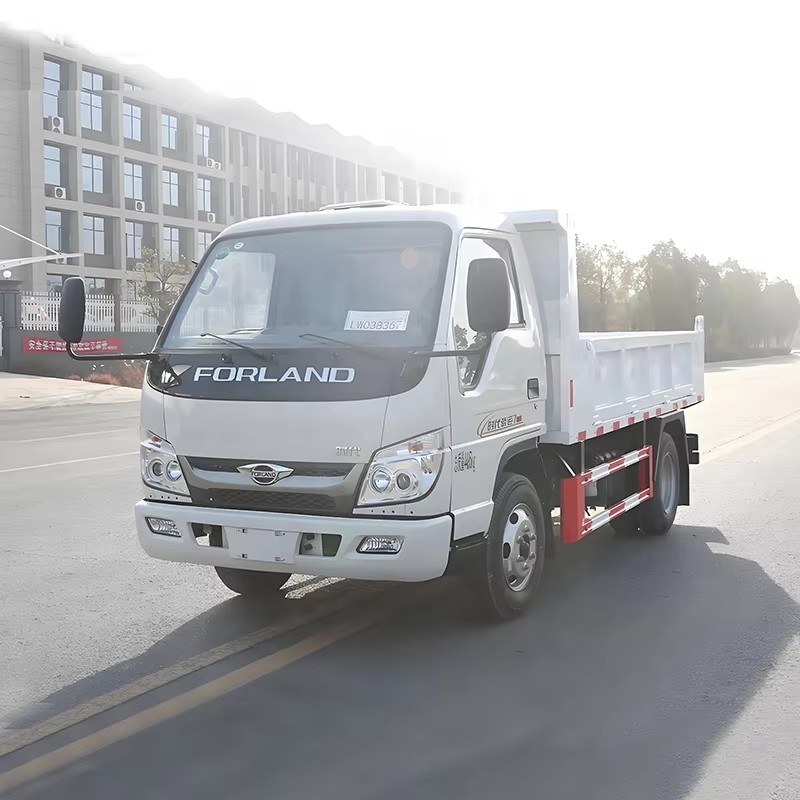

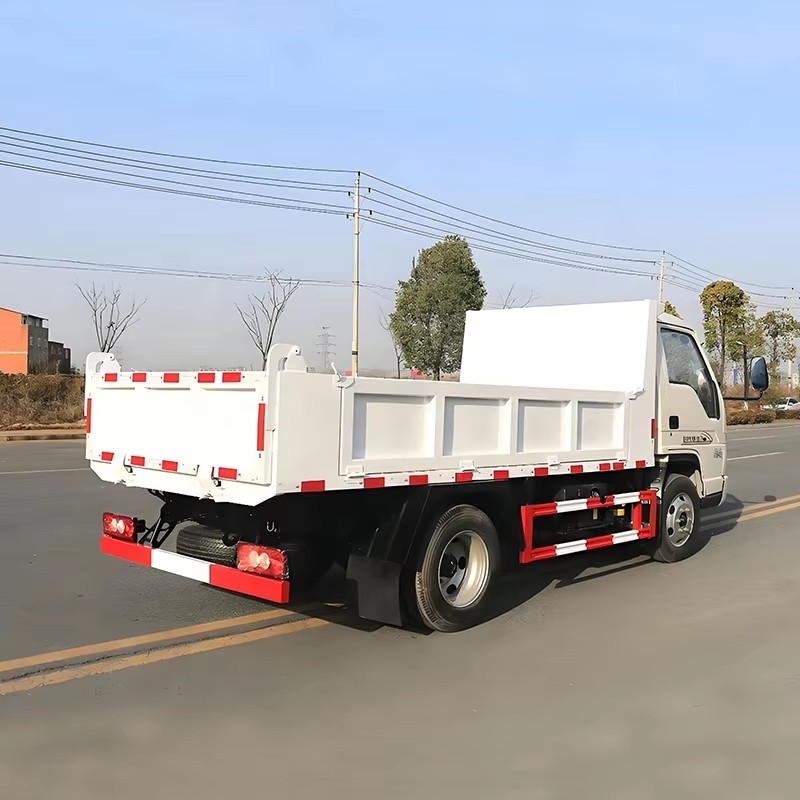

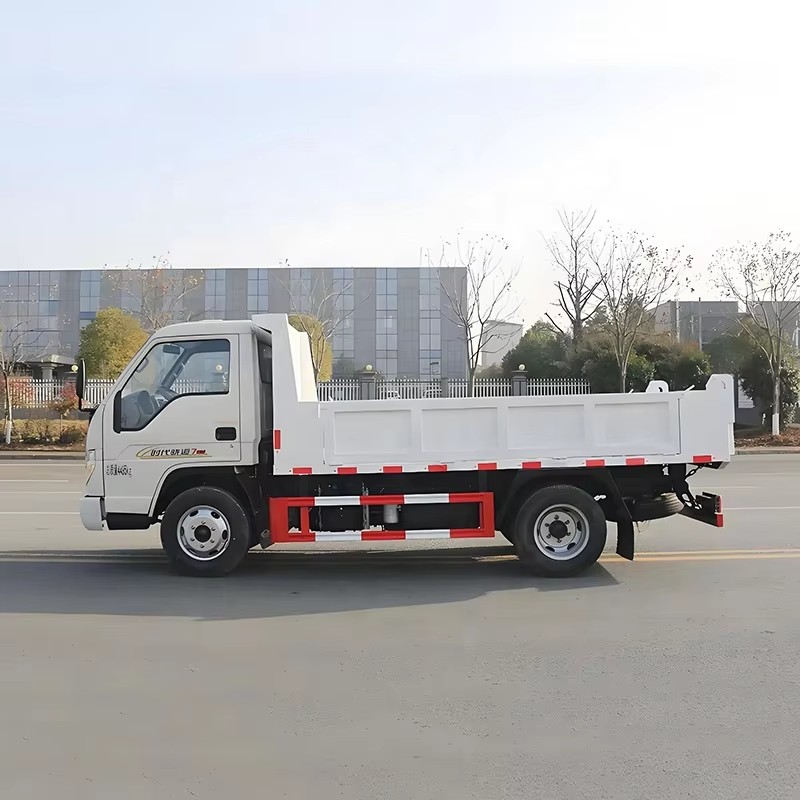

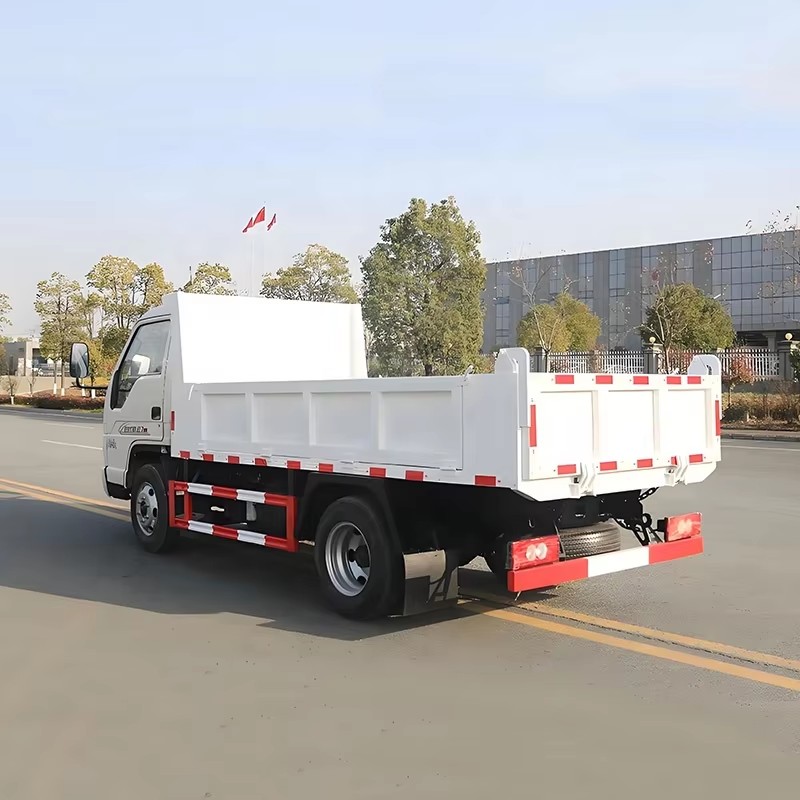

Foton 5Ton 7Ton Tipper Truck 4x2 Mini Dump Truck for Sale
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761292164125282.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761292164278395.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761292164656455.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251024/1761292164133666.jpg)
![[pics:title]](/static/upload/image/20251024/1761292164125282.jpg)
![[pics:title]](/static/upload/image/20251024/1761292164278395.jpg)
![[pics:title]](/static/upload/image/20251024/1761292164656455.jpg)
![[pics:title]](/static/upload/image/20251024/1761292164133666.jpg)
Vehicle Technical Parameters | ||
Product Name | Dump Truck | |
Overall Dimensions(mm) | 6380×2360×2580 | |
Curb Weight(Kg) | 5760 | |
Loading Capacity(Kg) | 6040 | |
Total Mass(Kg) | 11995 | |
Cargo Tank Dimension（mm） | 4350×2150×800 | |
Cargo Tank Volume(m³) | 7 | |
Tank Body Material | carbon steel | |
Cargo Tank thickness（mm） | Side 3 bottom 4 | |
Cargo Tank Lifting Method | Hydraulic Cylinder Lifting | |
Number of Cylinders（pcs） | 2 | |
Cylinder Position | Girder in the middle | |
Cylinder Diameter（mm） | 100 | |
Door Position | Rear/Side/Top | |
Chassis Technical Parameters | ||
Chassis Brand | FOTON | |
Drive Form | 4*2 | |
Steering Wheel | Left hand drive | |
Steering Device | Power assisted steering | |
Wheelbase(mm) | 3800 | |
Engine Brand and Model | Yuchai Power/YC4FA-33 | |
Max Engine Power(Kw) | 89 | |
Engine Displacement(ml) | 2999 | |
Engine Emission Standard | Euro 3 | |
Number of Engine Cylinders | 4 | |
Fuel Type | Diesel | |
Gearbox | 5speed forward 1 reverse | |
Front/Rear Axle(t) | 3/5 | |
Suspension | Multi leaf springs | |
Brake System | Front/Rear Drum full air braking | |
Wheels and Tyre Size | 6+1/( 7.50R16LT) | |
Cab Configuration | Single row cab, air conditioning, radio, MP3 and USB port | |
Rated Voltage | 12V,DC | |
Cab Color | White,other color is optional | |
