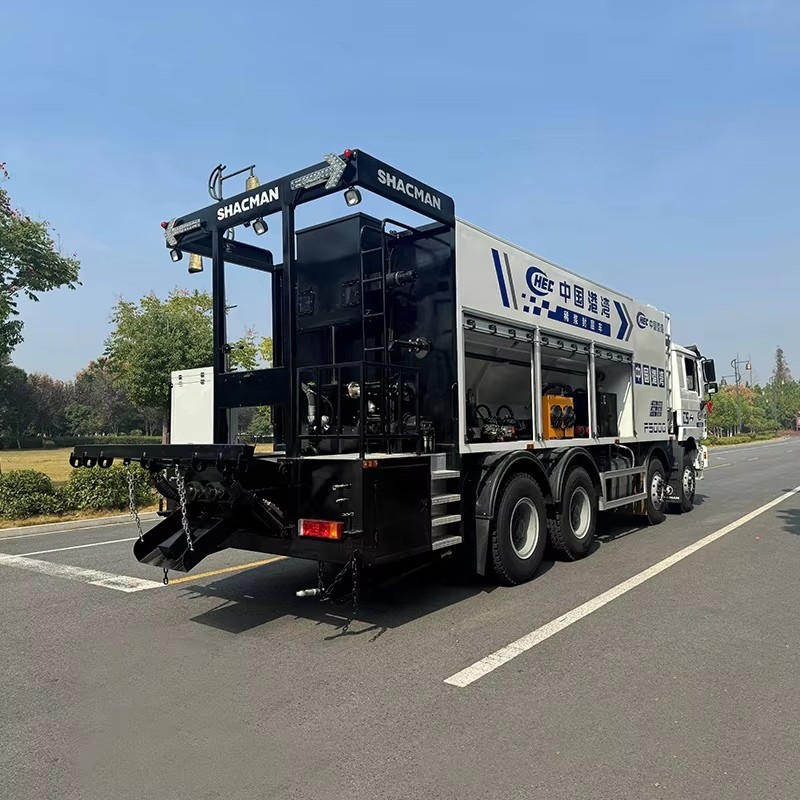

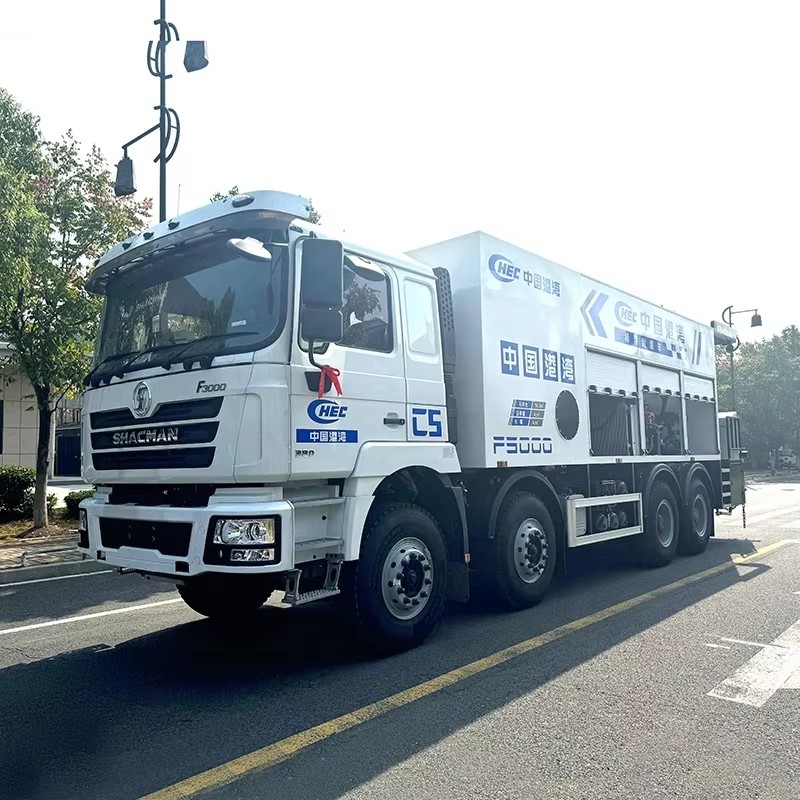

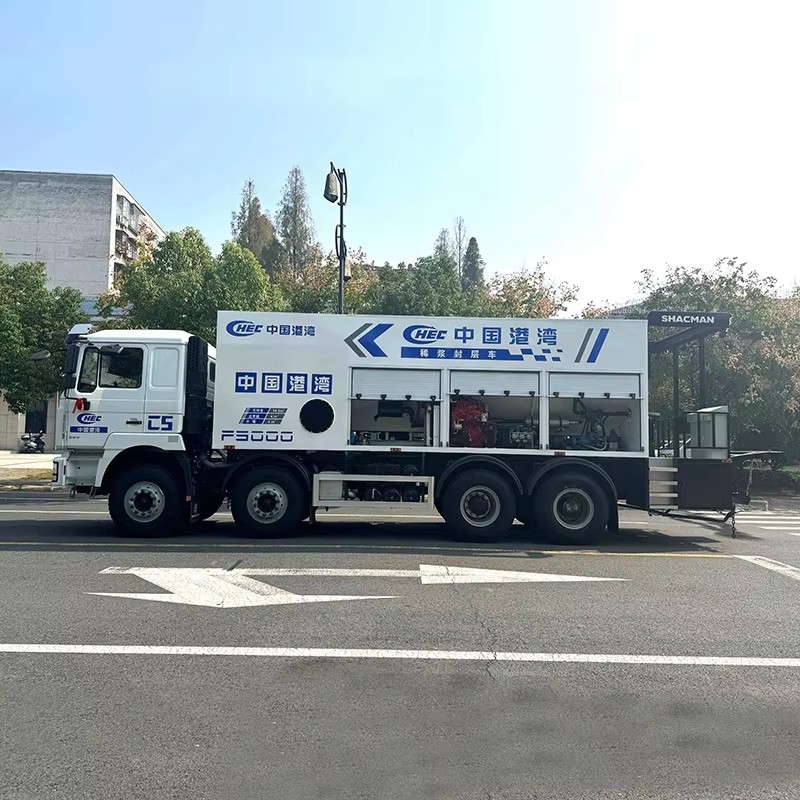

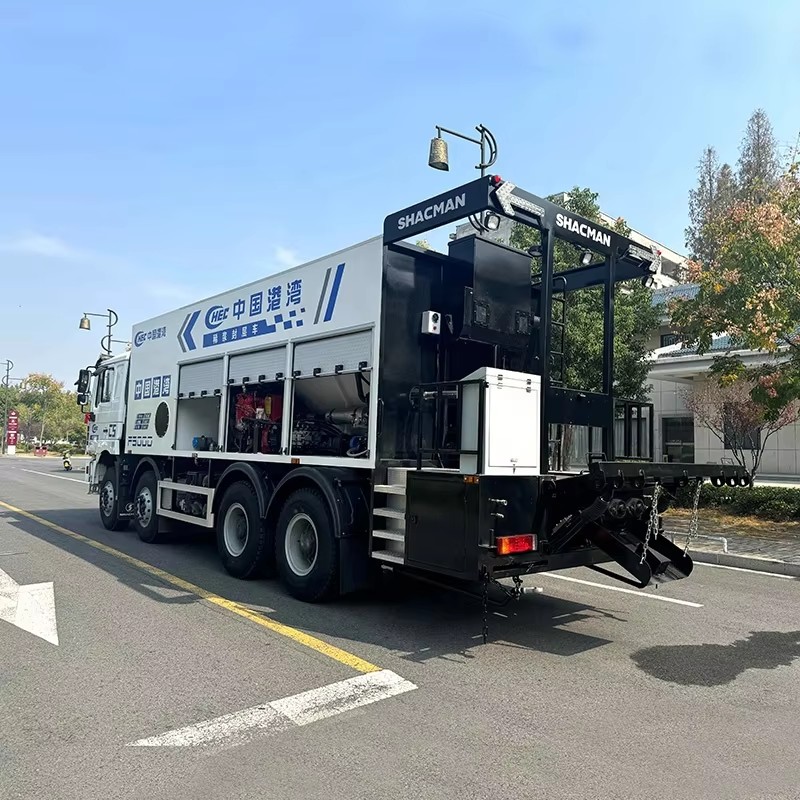

Shacman F3000 Heavy Duty 8x4 Road Construction Machinery 20CBM Slurry Distributor Seal Truck
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251027/1761535760228643.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251027/1761535760137040.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251027/1761535761241571.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251027/1761535761151017.jpg)
![[pics:title]](/static/upload/image/20251027/1761535760228643.jpg)
![[pics:title]](/static/upload/image/20251027/1761535760137040.jpg)
![[pics:title]](/static/upload/image/20251027/1761535761241571.jpg)
![[pics:title]](/static/upload/image/20251027/1761535761151017.jpg)
【Vehicle Technical Parameters】 | ||
Product Name | Asphalt Distributor Truck | |
Curb Weight(Kg) | 16700 | |
Boundary Dimension(mm) | 12000×2500×3350 | |
Volume of Asphalt Tank(m³) | 20 | |
Insulating Layer Thickness（mm） | 50 | |
Asphalt Pump Flow（L/min） | QGB680 | |
Spray Width（mm） | 4500 | |
Spraying Quantity（L/m2） | 0.3～3 | |
Working Speed（km/h） | 1.5～20 | |
Nozzle Number | 34 | |
Asphalt Heating System | Heat Transfer Oil Heating | |
Mode of Operation | Computer Control/Manual Control | |
Operating Ambient Temperature（°C） | -20~45 | |
Max Passengers Allowed | 3 | |
【Chassis Technical Parameters】 | ||
Chassis Brand | SHACMAN | |
Brake | Automatically Air-Cut Brake | |
Type of fuel | Diesel Oil | |
Engine Power（KW） | Wei Chai 400,WP12.400E201 | |
Front Axle/Rear Axle（t） | 9.5*2/16*2 | |
Gearbox | 10 Speed Manual Transmission | |
Number of Axes | 4 | |
Wheelbase (mm) | 1800+4575+1400 | |
Number of Tires | 12 | |
Tyre Specification | 12.00R20 | |
