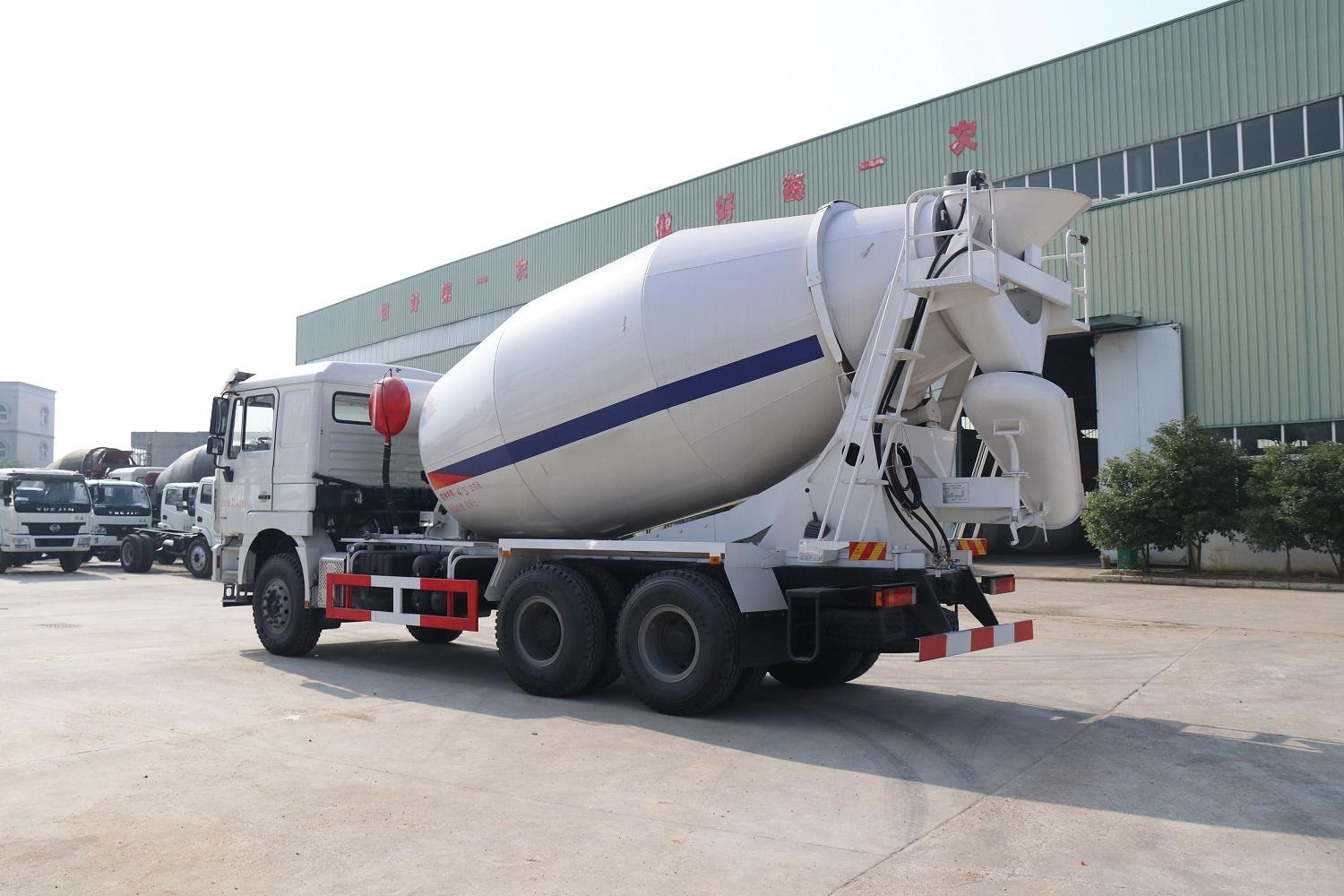

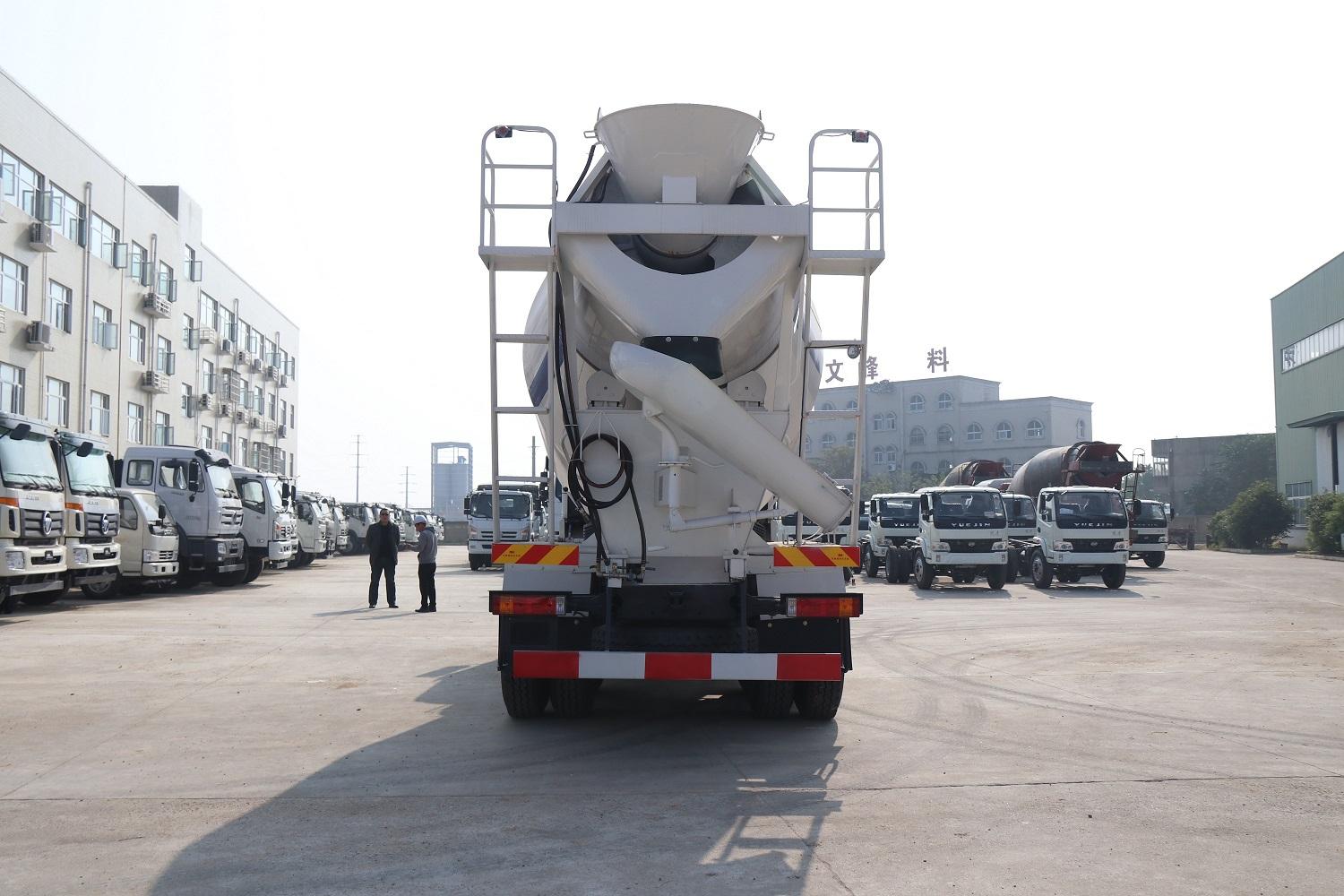

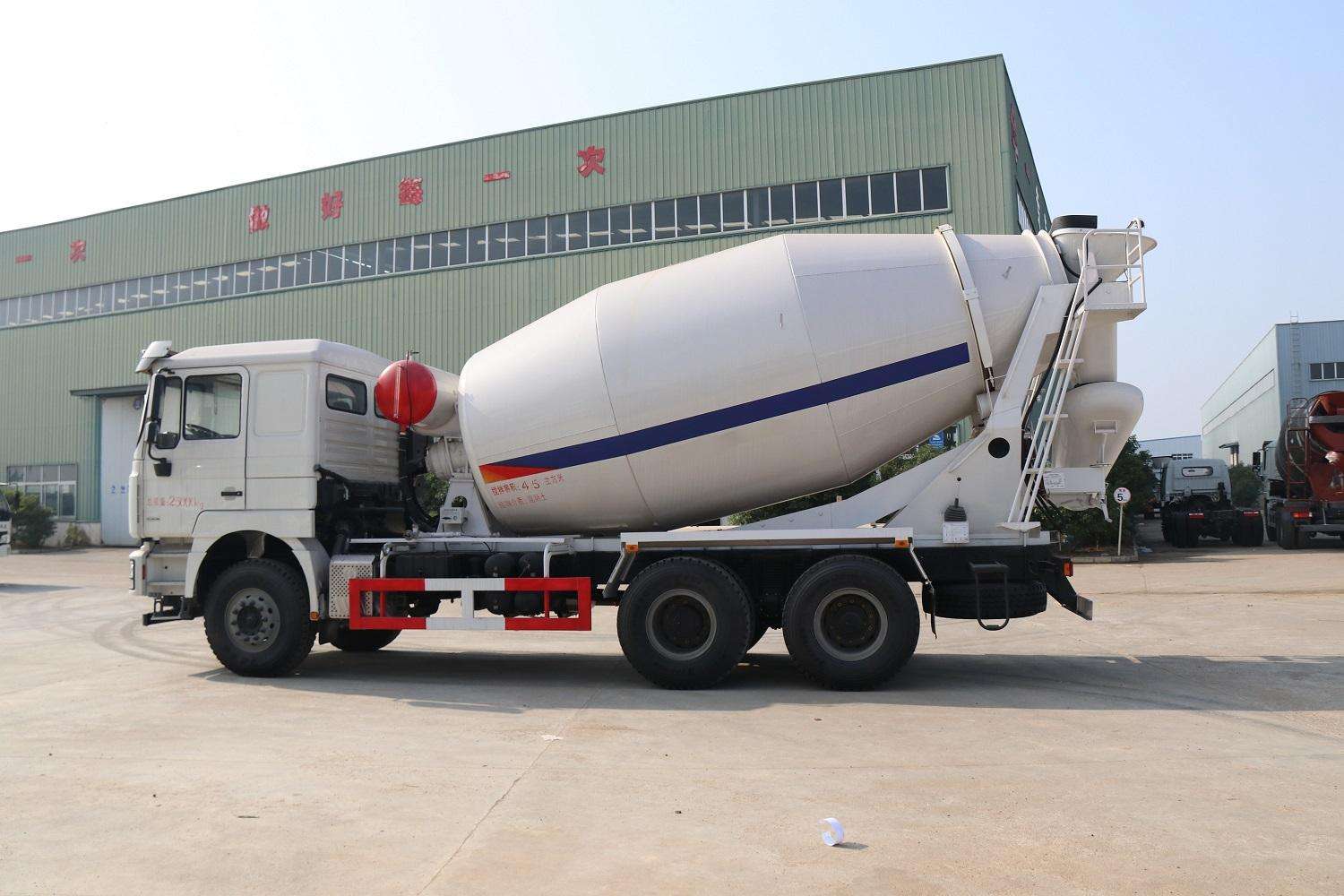

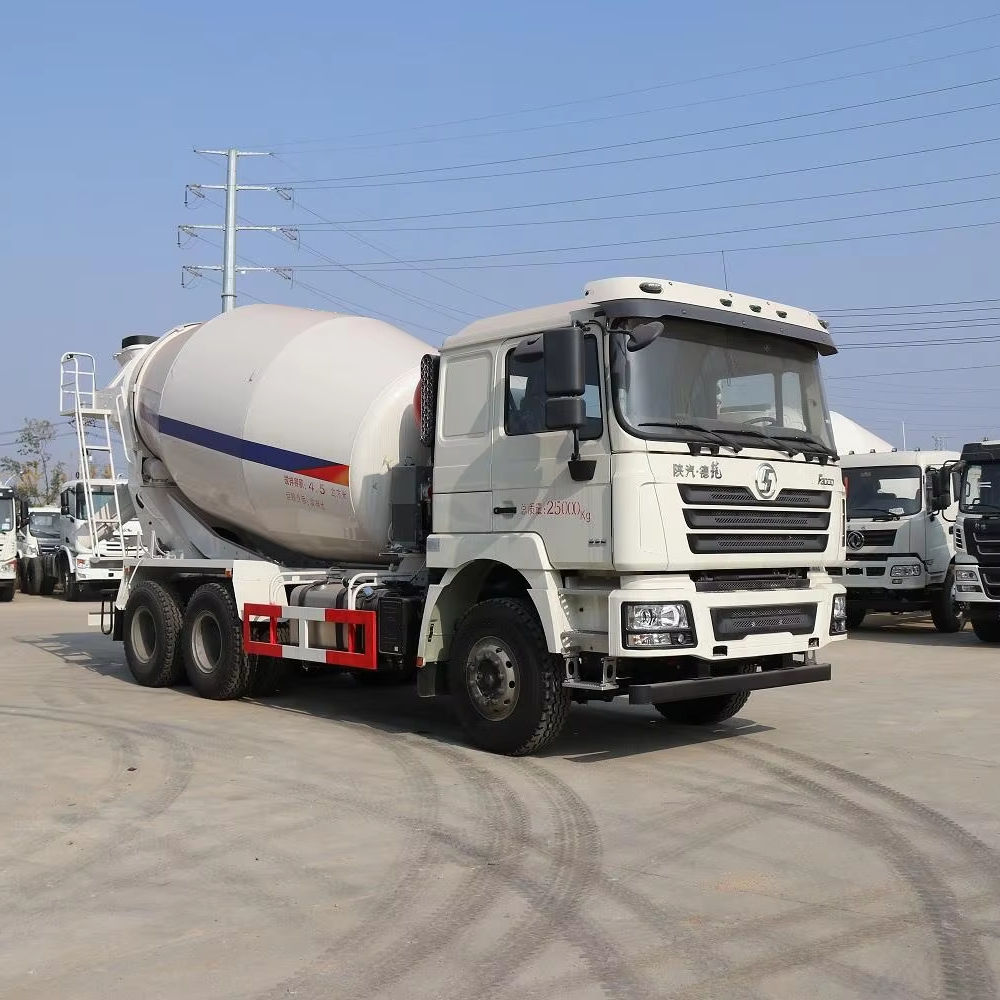

SHACMAN 6X4 Diesel Engine Concrete Cement Mixer Truck
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251113/1763016608219625.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251113/1763016609111778.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251113/1763016609536731.jpg)
![[pics:title]](https://www.clwtrucksgroup.com/static/upload/image/20251113/1763016612883095.jpg)
![[pics:title]](/static/upload/image/20251113/1763016608219625.jpg)
![[pics:title]](/static/upload/image/20251113/1763016609111778.jpg)
![[pics:title]](/static/upload/image/20251113/1763016609536731.jpg)
![[pics:title]](/static/upload/image/20251113/1763016612883095.jpg)
Vehicle Parameters | |||
Vehicle Model | EHY5250GJBA | Vehicle Brand | |
Overall dimensions | 8100X2500X3750mm | Curb weight | 12300kg |
Loading capacity | 10m3 | Color | optional |
Chassis Parameters | |||
Chassis model | DFL5250GJBA | Chassis brand | DONGFENG |
Overall dimensions | 8090x2500x3030mm | Wheel base | 3800+1350mm |
Cab | D310 Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver’s seat, air conditioning system | ||
Engine | Dongfeng Cummins L375 30 | ||
Horse power | 375hp | ||
Emission | Euro 3 | ||
Displacement | 8900ml | ||
Tire | 315/80R22.5 | Transmission | 9JS150T-B DD 9 forward & 1 reverse |
Steering device | Power assisted steering | Steering wheel | Left hand drive |
Concrete Mixer Structure Parameters | |||
Mixing capacity(m³) | 10 | Color and Logo | Optional |
Feeding speed (m³/min) | ≥5 | Discharge speed(m³/min) | ≥3 |
Discharge residual rate | ≤0.5% | Slump scope(mm) | 50-210 |
Water tank capacity(L) | 300 | Water pressure(Mpa) | 0.35-0.38 |
Tank material | 5mm alloy steel | Tank front head | 8mm alloy steel |
Standard Configuration | chassis, sub frame, mixer tank, reducer, hydraulic pump, hydraulic motor, radiator, water tank, cleaning hose, feed port, discharge port, climbing ladder, air pressure water supply device. | ||
