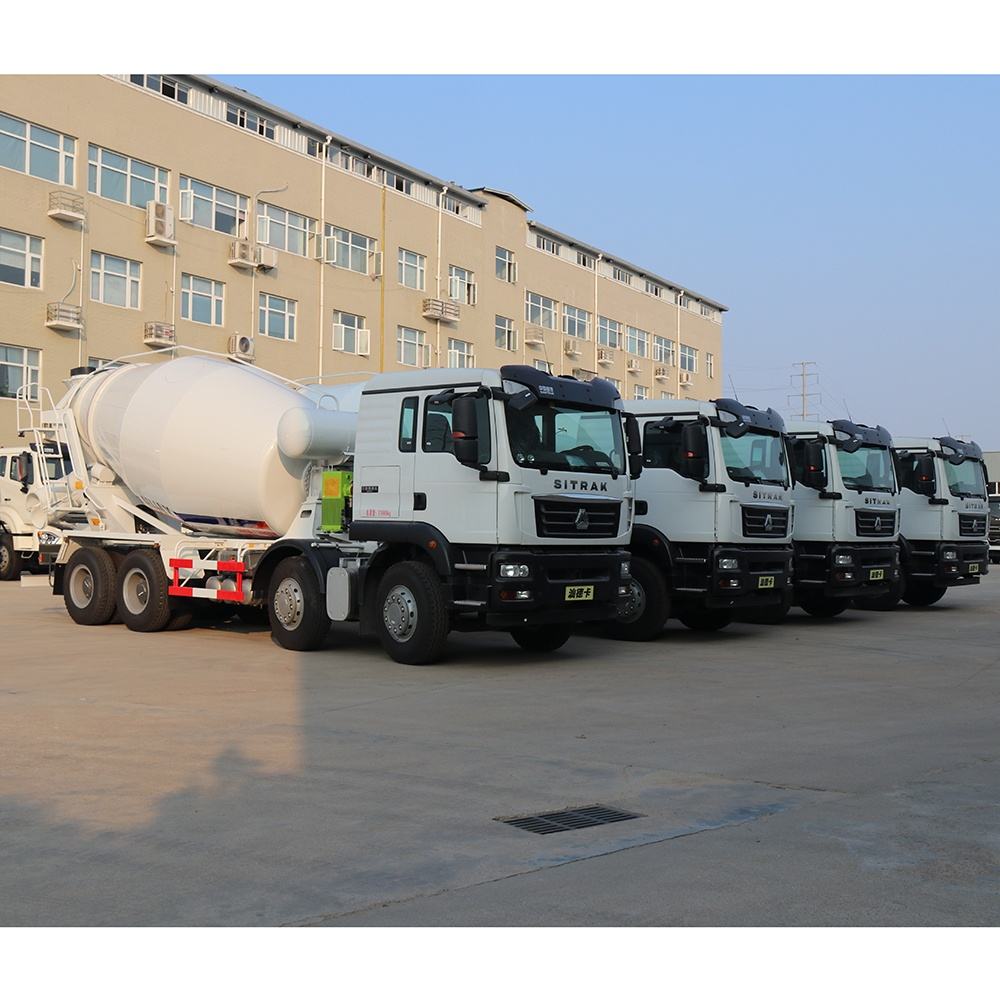

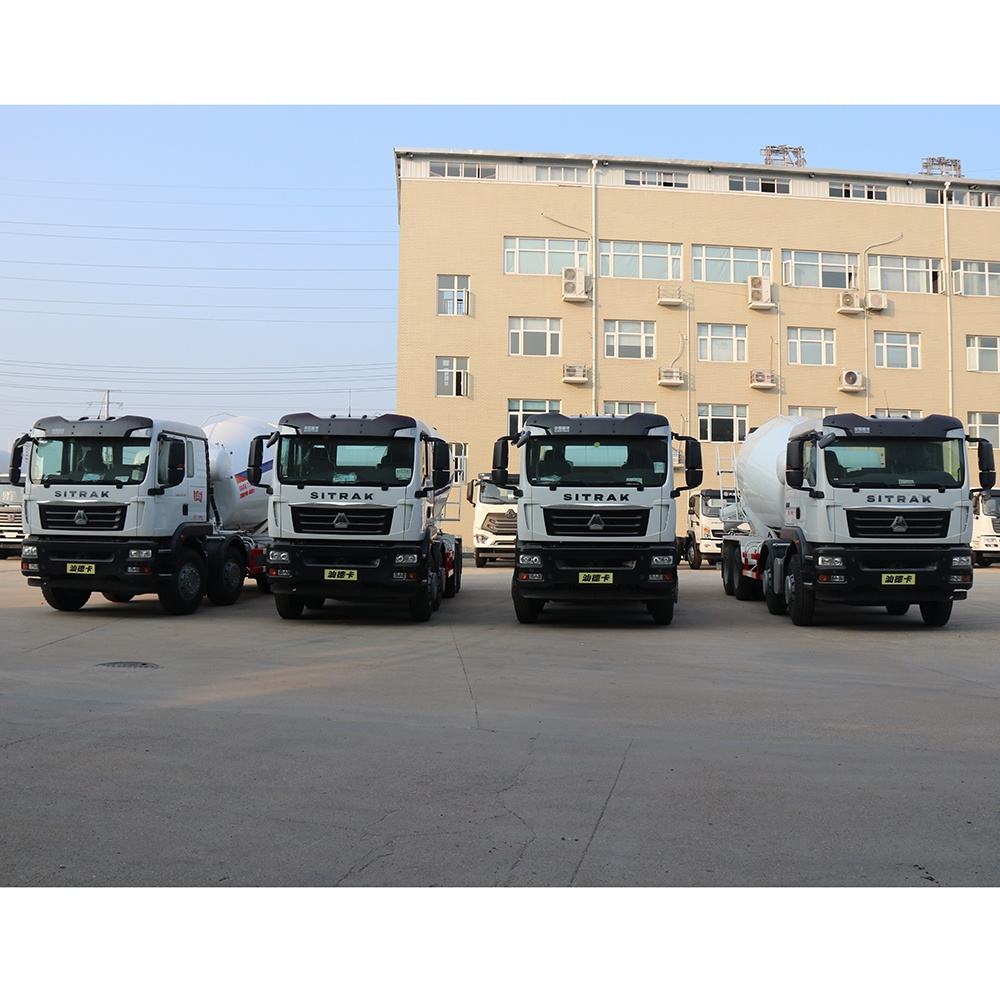

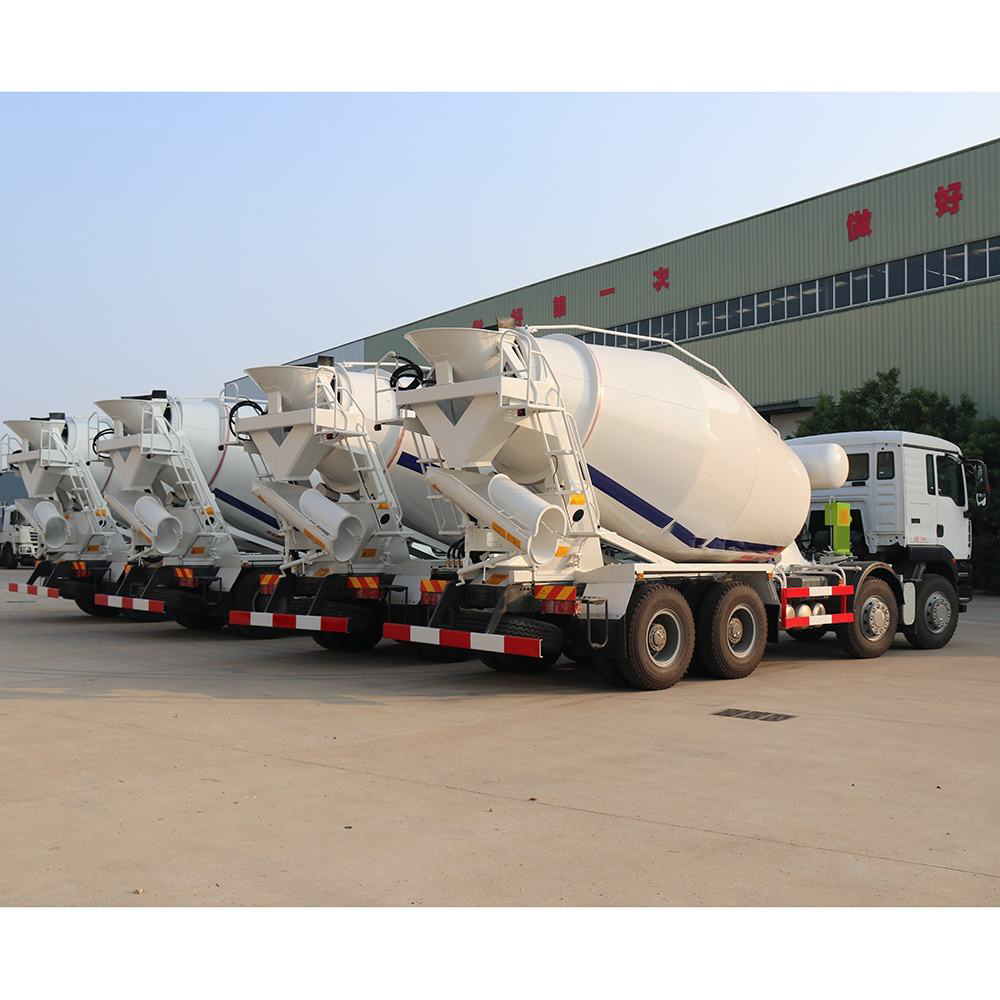

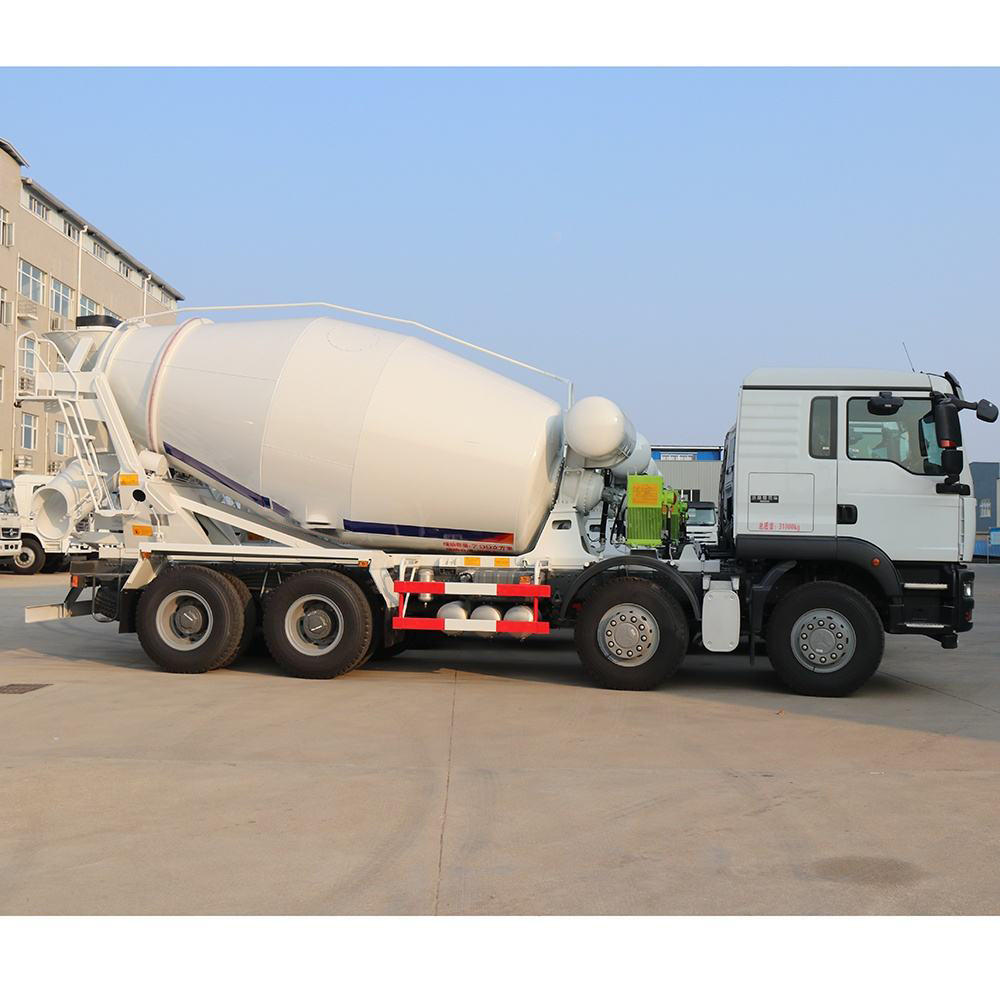

Direct Factory SITRAK 8X4 12m³ Concrete Mixing tank Central Concrete Mixer

Vehicle ParametersVehicle ModelEHY5316GJBNVehicle BrandHUAYIOverall dimensions9950×2496×3740mmCurb w

Inquire Now

Product Details

Vehicle Parameters
Vehicle Model	EHY5316GJBN	Vehicle Brand	HUAYI
Overall dimensions	9950×2496×3740mm	Curb weight	13420kg
Loading capacity	10m3	Color	optional
Chassis Parameters
Chassis model	ZZ1316N306GE1	Chassis brand	SITRAK
Overall dimensions	8955×2496×3035mm	Wheel base	1800+3025+1400mm
Front/rear wheel track	2035/2035,1850/1850mm	Front/rear suspension	1430/2295mm
Approach/departure angle	16/17°	Maximum speed	82km/h
Cab	Configuration	SITRAK C5H a row and a half deluxe cab(with sleeping berth), allowable 3 passengers,air conditioner, ABS.
Cab	Color	White, other color is optional
Engine	Model	MC07.34-50
	Emission	Euro 5
	Type	6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, direct injection, exhaust valve brake,diesel engine
	Rated power	340hp,rated power speed 2300rpm
	Displacement	6870ml
	Max.torque	1250N.m
	Bore x stroke	108x125mm
	Manufacturer	China National Heavy Duty Truck Group Co.,Ltd
Tire	295/80R22.5 12+1 nos	Transmission	gearbox HW16709XST, 9 speed forward 1 reverse
Steering device	Power assisted steering ZF8198	Steering wheel	Left hand drive
Concrete Mixer Structure Parameters
Mixing capacity(m³)	10	Color and Logo	Optional
Feeding speed (m³/min)	≥5	Discharge speed(m³/min)	≥3
Discharge residual rate	≤0.5%	Slump scope(mm)	50-210
Water tank capacity(L)	300	Water pressure(Mpa)	0.35-0.38
Tank material	5mm alloy steel	Tank front head	8mm alloy steel
Reducer	Italy Bonfiglioli	Hydraulic motor	Germany REXROTH
Hydraulic pump	Germany REXROTH	Radiator	KAIPENG
Standard Configuration	chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. Italy Bonfiglioli reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
