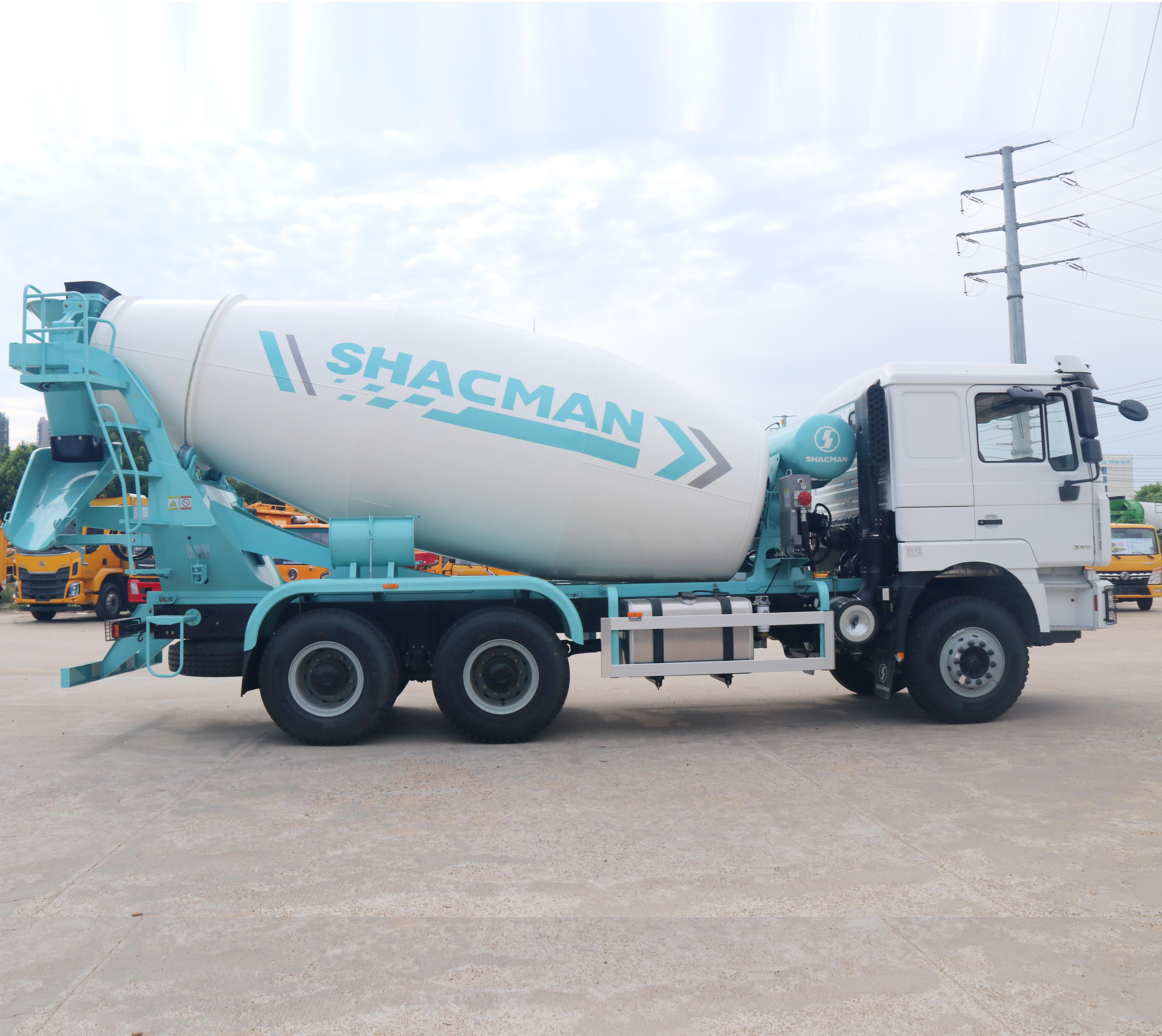

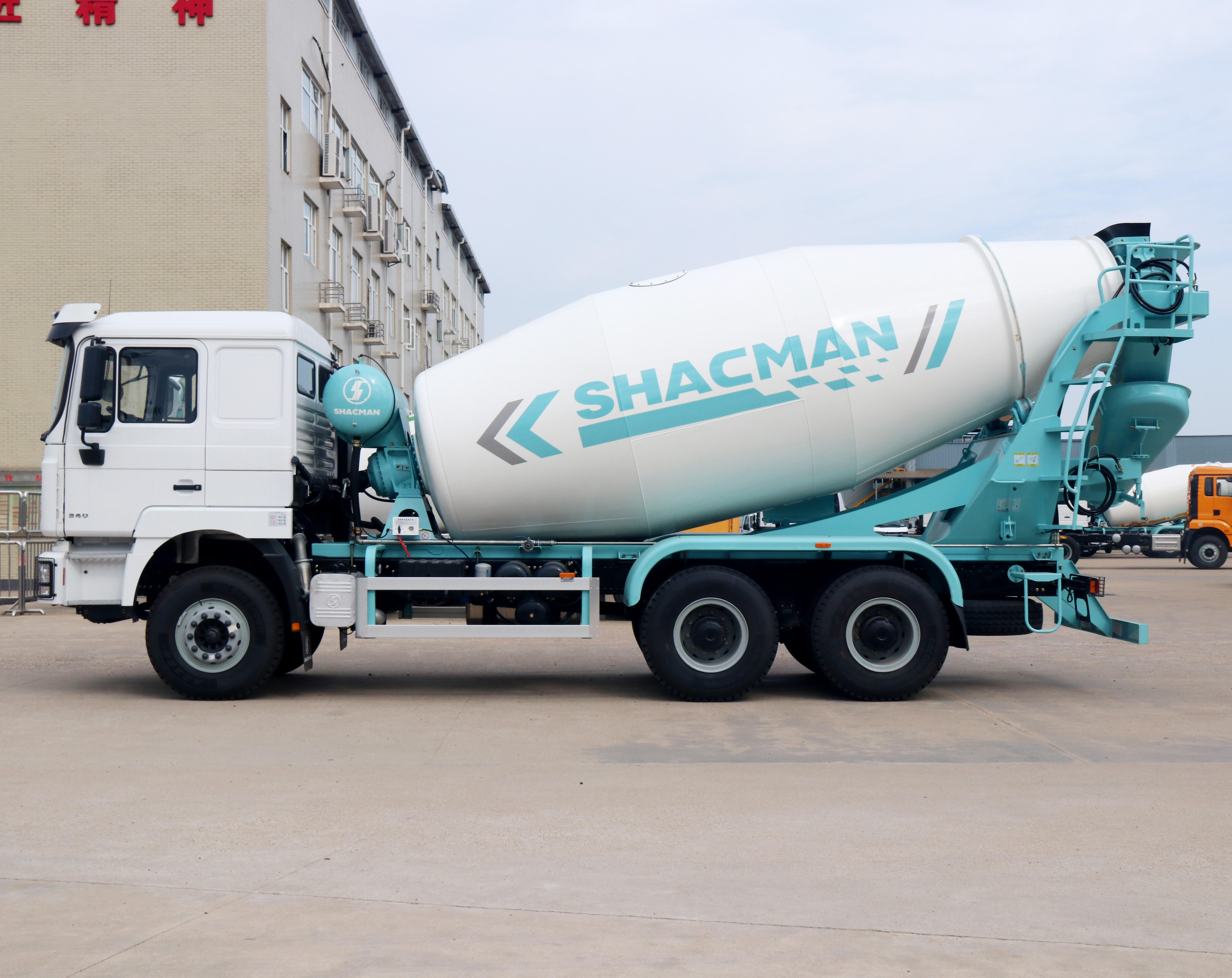

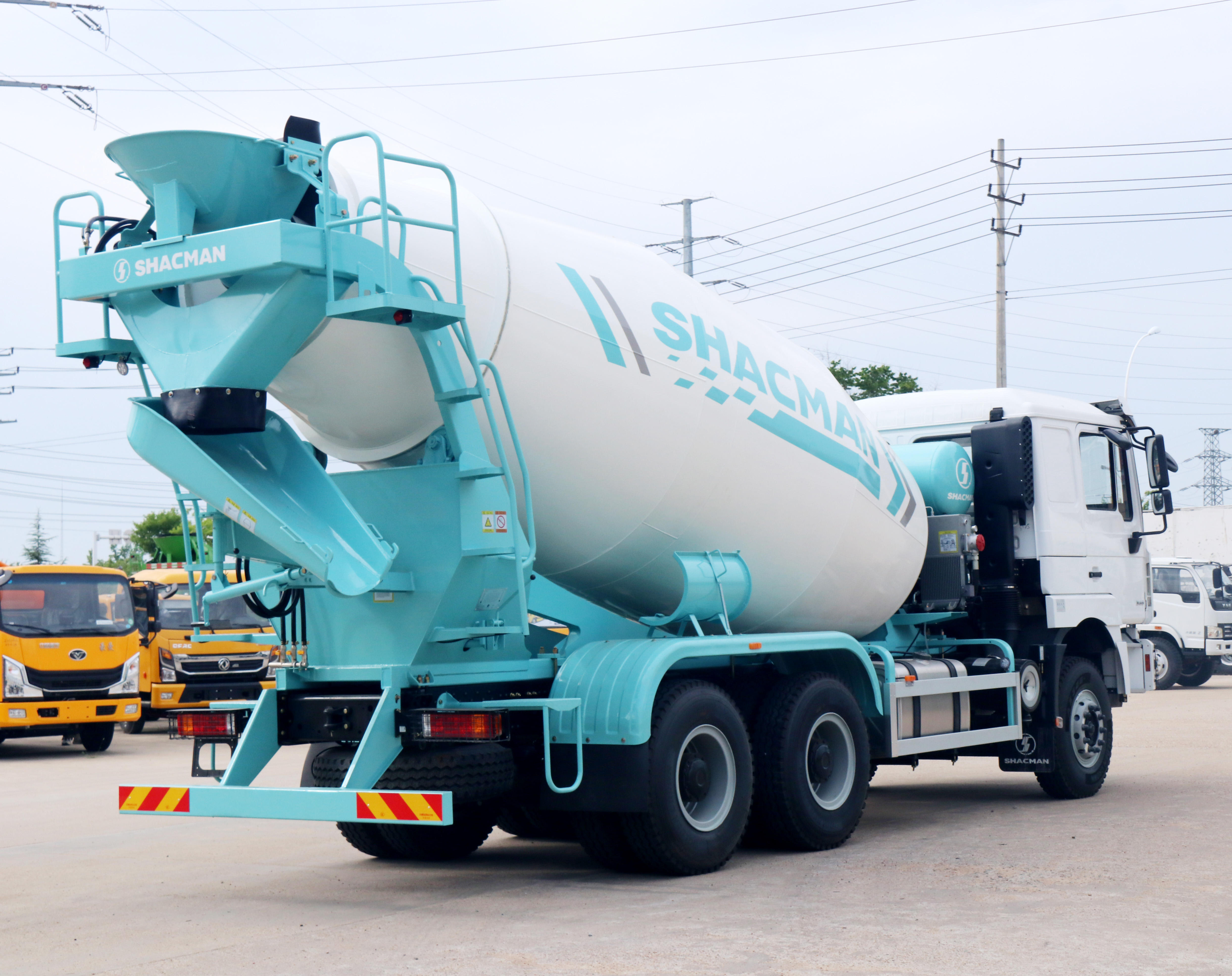

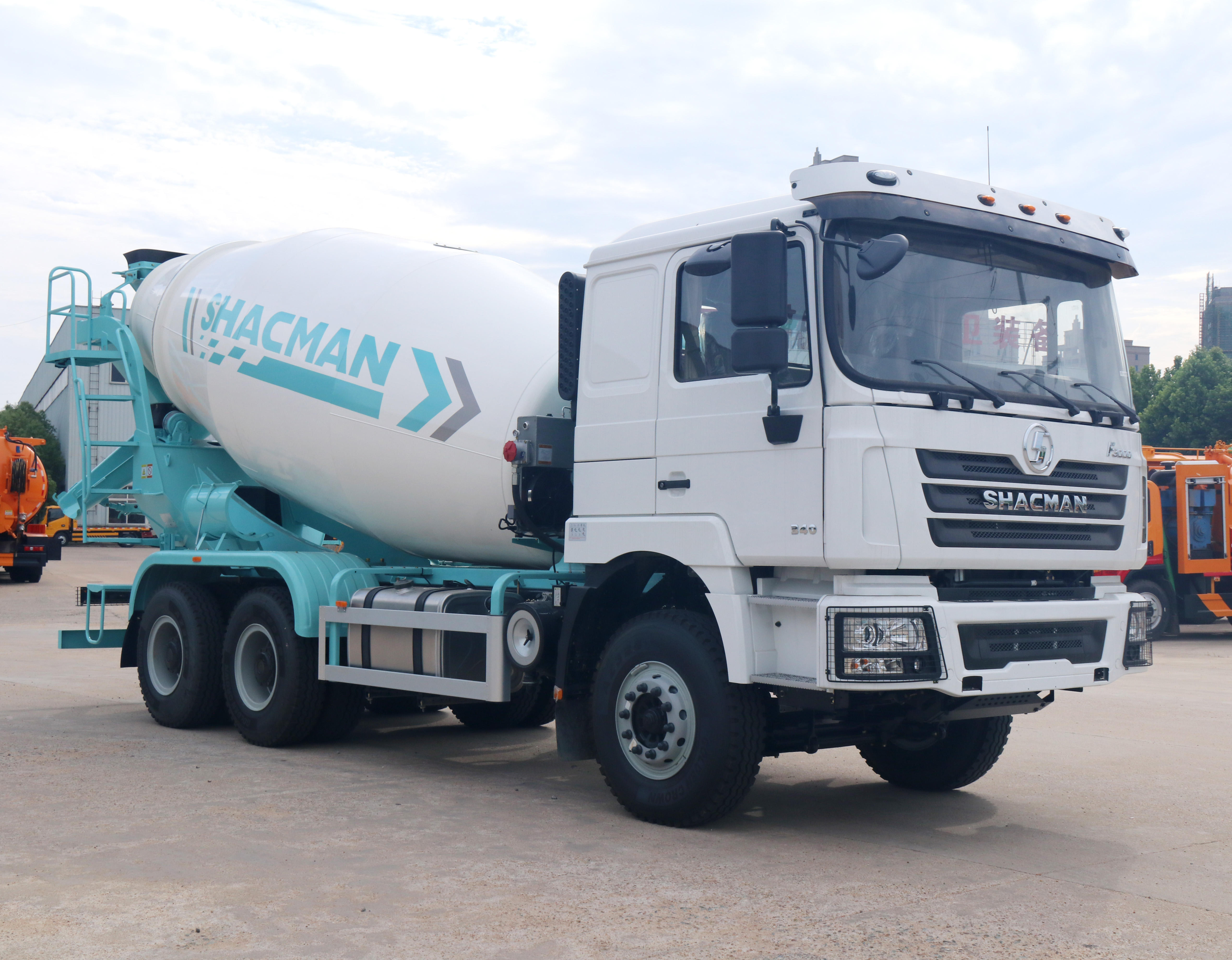

Shacman Concrete Mixer Truck New 6x4 Concrete Mixer Hot Sale

Vehicle ParametersVehicle ModelEHY5255GJBSXVehicle BrandHUAYIOverall dimensions9750X2600X4000mmCurb

Inquire Now

Product Details

Vehicle Parameters
Vehicle Model	EHY5255GJBSX	Vehicle Brand	HUAYI
Overall dimensions	9750X2600X4000mm	Curb weight	11500kg
Loading capacity	10m3	Color	optional
Chassis Parameters
Chassis model	SX5255GJBJR404	Chassis brand	SHACMAN
Overall dimensions	9000x2495x3250mm	Wheel base	3975+1400mm
Front/rear wheel track	2015,1850/1850mm	Front/rear suspension	1430/1000mm
Approach/departure angle	19/24°	Maximum speed	82km/h
Cab	Configuration	Delong F3000 flat top cab, hydraulic seat, four-point hydraulic suspension cab, air conditioning, electric window machine, manual flip, F3000 Cooling System, Domestic Left-hand Steering Machine, Iron Storage Tank, Foyer Air Filter, Iron Bumper, 165Ah Battery, ETA Circuit Breaker, SHACMAN logo, all English identification.
Cab	Color	White, other color is optional
Engine	Model	WP10.340E22
	Emission	Euro 2
	Type	6 cylinders, in-line, diesel engine.
	Rated power	340hp,rated power speed 2200rpm
	Displacement	9726CC
	Max.torque	1250N.m
	Bore x stroke	126X155mm
	Manufacturer	Weichai Power CO.,LTD
Tire	12.00R20 steel wire tire 10+1 nos	Transmission	10 speed forward 2 reverse
Steering device	Power assisted steering	Steering wheel	Left hand drive
Concrete Mixer Structure Parameters
Mixing capacity(m³)	10	Color and Logo	Optional
Tank material	4mm alloy steel	Tank front head	8mm alloy steel
Hydraulic pump	ITALY ARK	Hydraulic motor	ITALY ARK
Radiator	KAIPENG	Color and Logo	Optional
Standard Configuration	chassis,sub frame,mixer tank, ITALY TOPUNION reducer, ITALY ARK hydraulic pump and hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
