Basic parameters

Vehicle model

CLW5060XLJHEV

Overall dimensions

5995×2450×3350 (mm)

Curb weight

4800 kg

Chassis model

BYD1060A3HEV4C1

GVW

6500 kg

Wheel base

3360 mm

Fuel tank volume

100 L

Tire specification

7.00R16LT 14PR

Rated passenger

6 persons

Number of tires

6

Drive type

Rear-wheel drive dual tires

Power configuration:

800W solar energy, 24V 400Ah iron-lithium battery, 5000W sine wave inverter

Bed layout:

Forehead bed, sofa bed, rear horizontal bed

Water tank capacity

Clean water tank 300L, sewage tank 80L, black water tank 40L

Basic equipment

24V Canglang refrigerator (132L), 3kg washing machine, LCD TV, 220V household 1.5P air conditioner, water heater, etc.

1. The cab is with a 1+2 seat layout. The cockpit and living area are connected, which facilitates communication between the
front and rear.
2. In terms of power, the vehicle is equipped with BYD's independent permanent magnet synchronous motor, 18.3kWh blade battery
and flat wire motor integrated bridge, and the maximum power of the drive motor is 150kW.
3. In terms of safety assisted driving, the vehicle is equipped with cruise control, reversing r-adar, ABS, smart key, reversing
image + four-way monitoring, etc.

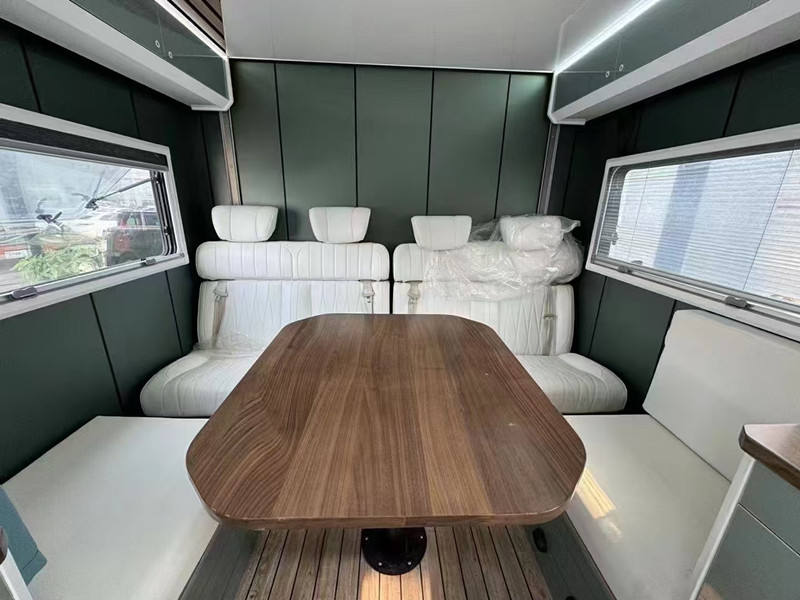

4. The living area is soundproofed and noise-reduced to ensure a comfortable living environment. The interior uses E0
environmentally friendly panels, wear-resistant floor leather and waterproof load-bearing panels, specially designed for RVs.

Engine parameters

Engine model

BYD476ZQG

Displacement

1497 ml

Engine power

104kw / 141hp

Manufacturer

Fudi Power Co., Ltd.

Max speed

100 km/h

ABS system model

BSC-T

Fuel type

Gasoline/electric hybrid

Transmission

Automatic

Energy storage type

Lithium iron phosphate battery, Drive motor model/type/rated power/peak power: TZ200XSY/permanent magnet synchronous
motor/70kW/150kW.
