Swing Arm Refuse Truck

Description

Swing Arm Refuse Truck (also called swing arm waste collection truck Isuzu, skip bin truck, skip bin loader, dumper placer, Skip Loader)  is applicable for craneing and transporting garbage bin. It is featured with large capacity garbage bin, high quality hydraulic parts, easy operation, maintenance and anti-secondary pollution. Then mechanization of cleaning and transporting garbage can be achieved.

Swing arm roll Waste Collection truck is also called Skip Loader Waste Collection truck for transporting kinds of garbage in residential areas, streets, and the factory,etc.

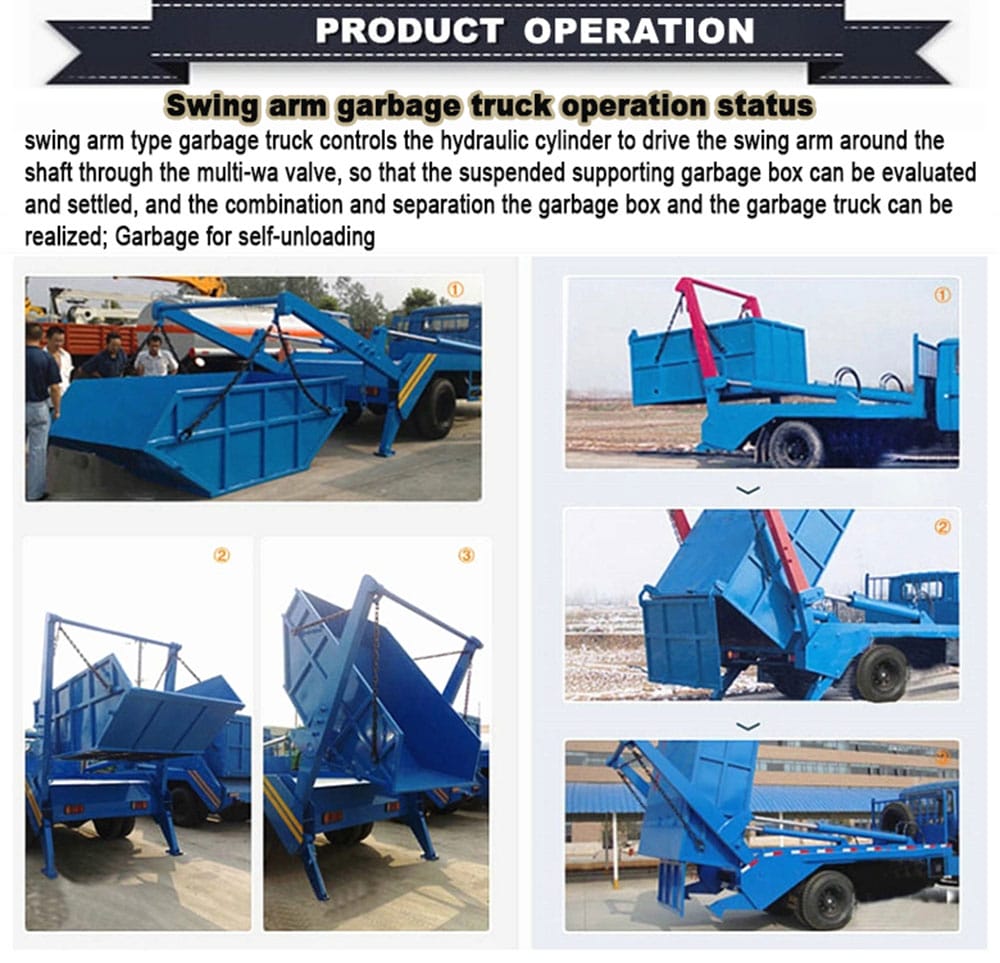

The rolling arm Waste Collection truck is equipped with large hydraulic cylinders to drive the two arms installed with hydraulic legs to ensure stability and safety during operation. The waste container of arm roll garbage truck can be designed as sealed type, semi-sealed type; while the shape can be oblong or echelon.

The skip loader garbage truck boasts an innovative design that incorporates a distinct garbage container and a robust truck chassis. This configuration allows multiple units of garbage containers to be seamlessly attached to a single truck chassis, enabling uninterrupted transportation and enhancing overall work efficiency significantly.

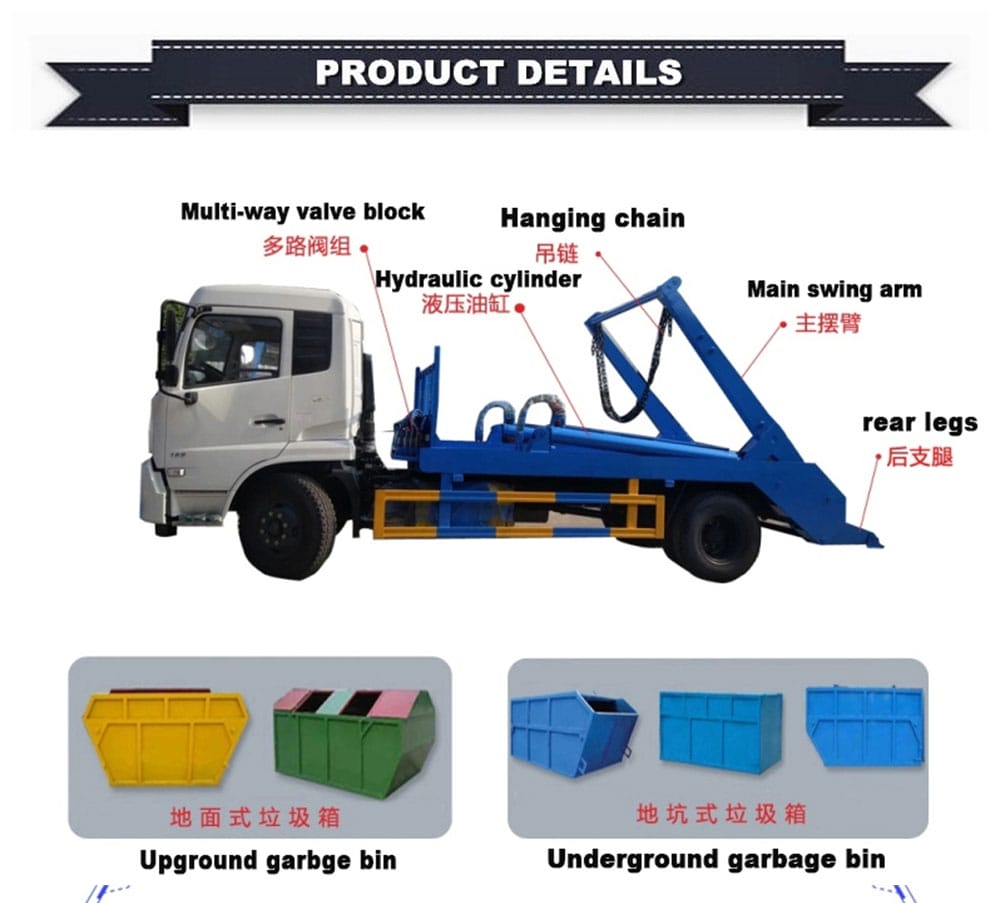

Built upon the heavy-duty chassis, the skip loader garbage truck ensures exceptional performance and durability. Its upper body comprises various components such as a swing arm, garbage bin, outrigger, and chain, all meticulously integrated to optimize functionality. By leveraging European advanced technology and employing a well-thought-out design, the skip loader garbage truck delivers outstanding performance and reliability.

Upper Equipment Specification:

Garbage Bin/Skip Loader: 2CBM-30CBM.
Hydraulic System: Two Hydraulic cylinders with lifting arm; Two Hydraulic cylinders with landing leg;

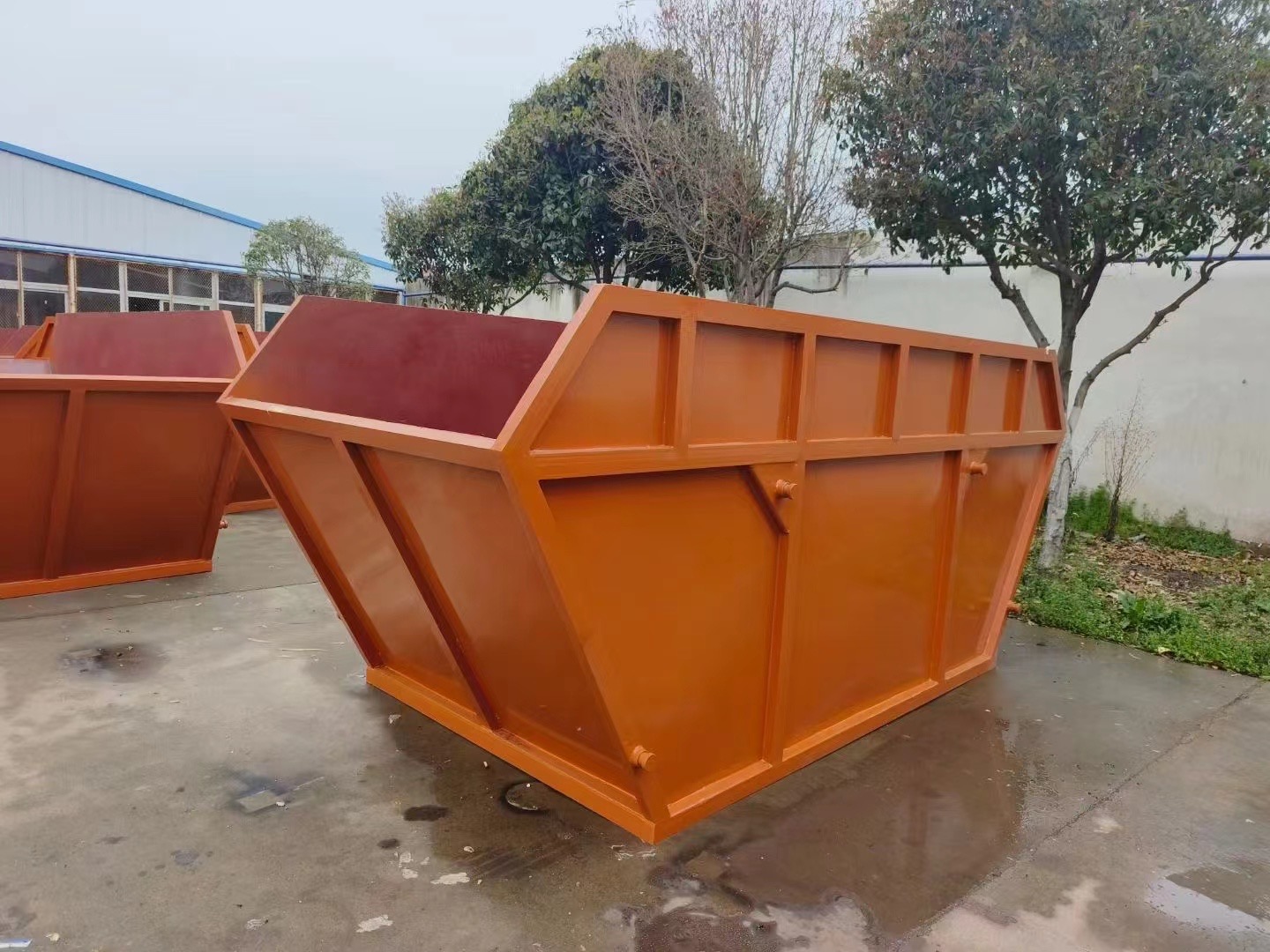

The garbage bin is constructed from premium carbon steel, ensuring excellent resistance to rust and corrosion.
The reinforced double cylinder offers consistent and reliable performance, guaranteing safety while lifting and emptying the garbage bin.
The hydraulic multi-way valve controls the rear outrigger, providing stability, safety, and reliability during the bin’s lifting and lowering process.
The swing arm is fabricated using durable alloy steel.
The thickened chain rings, featuring both large and small holes, are designed to prevent easy detachment and deformation.
