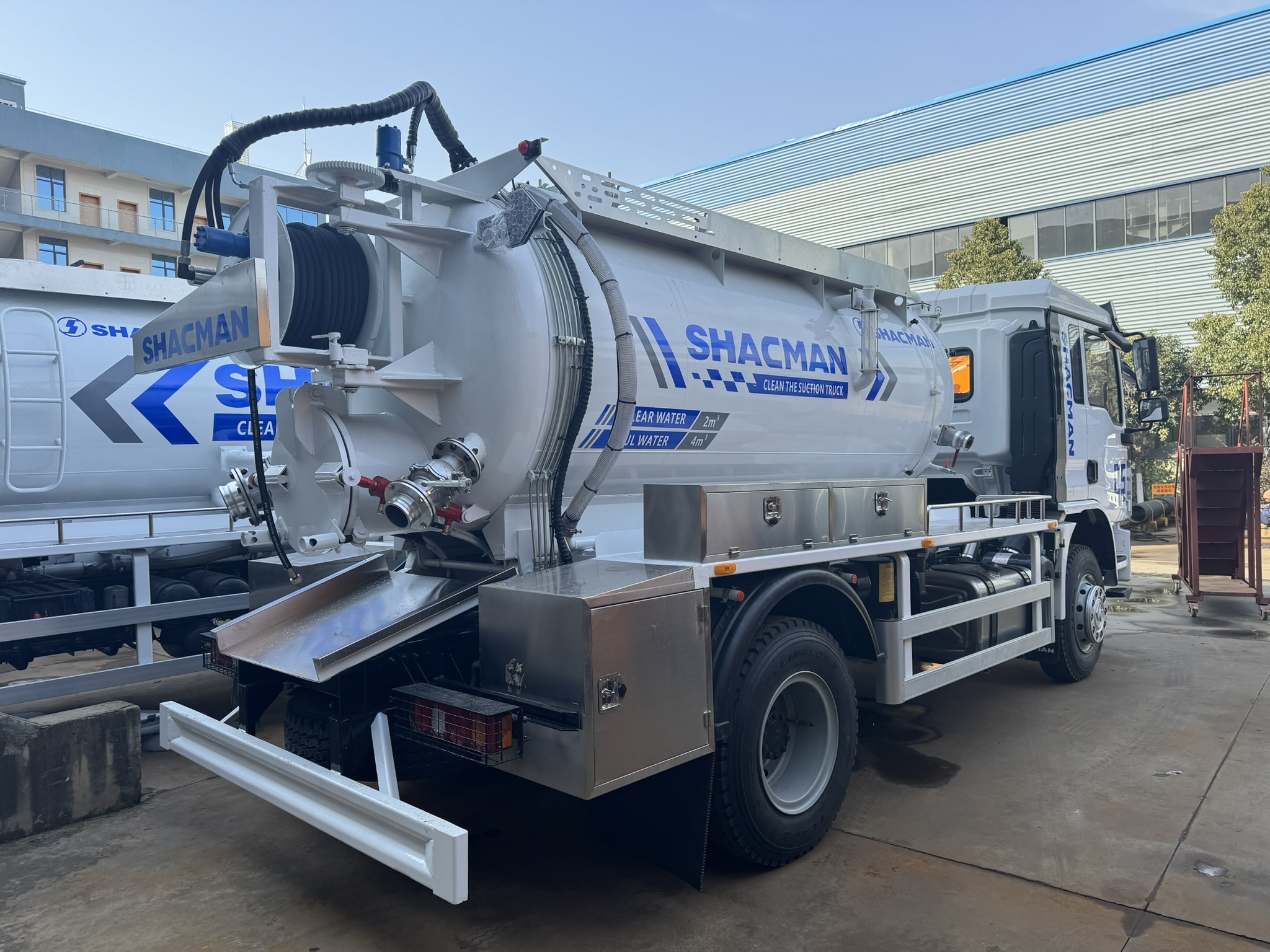

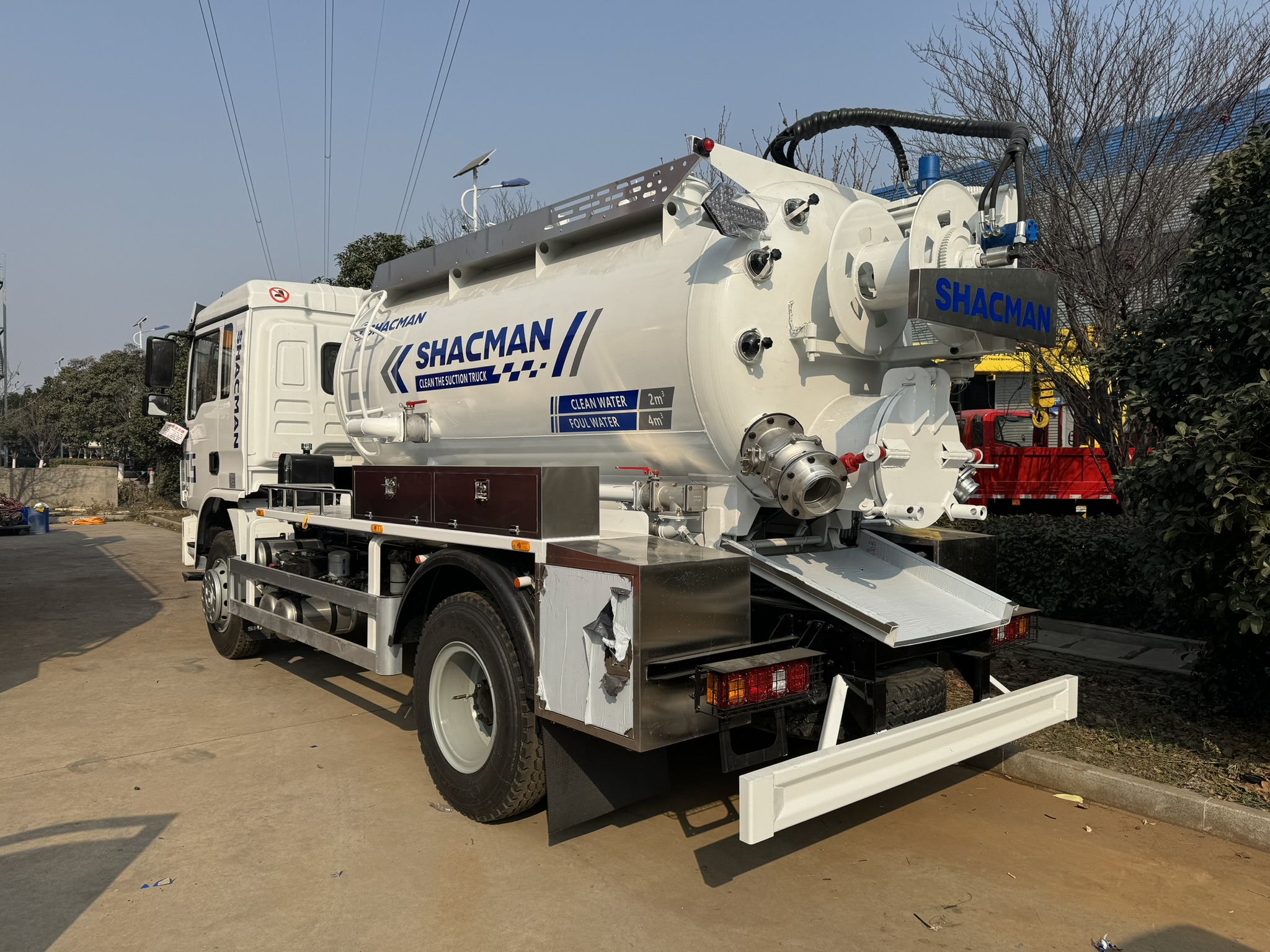

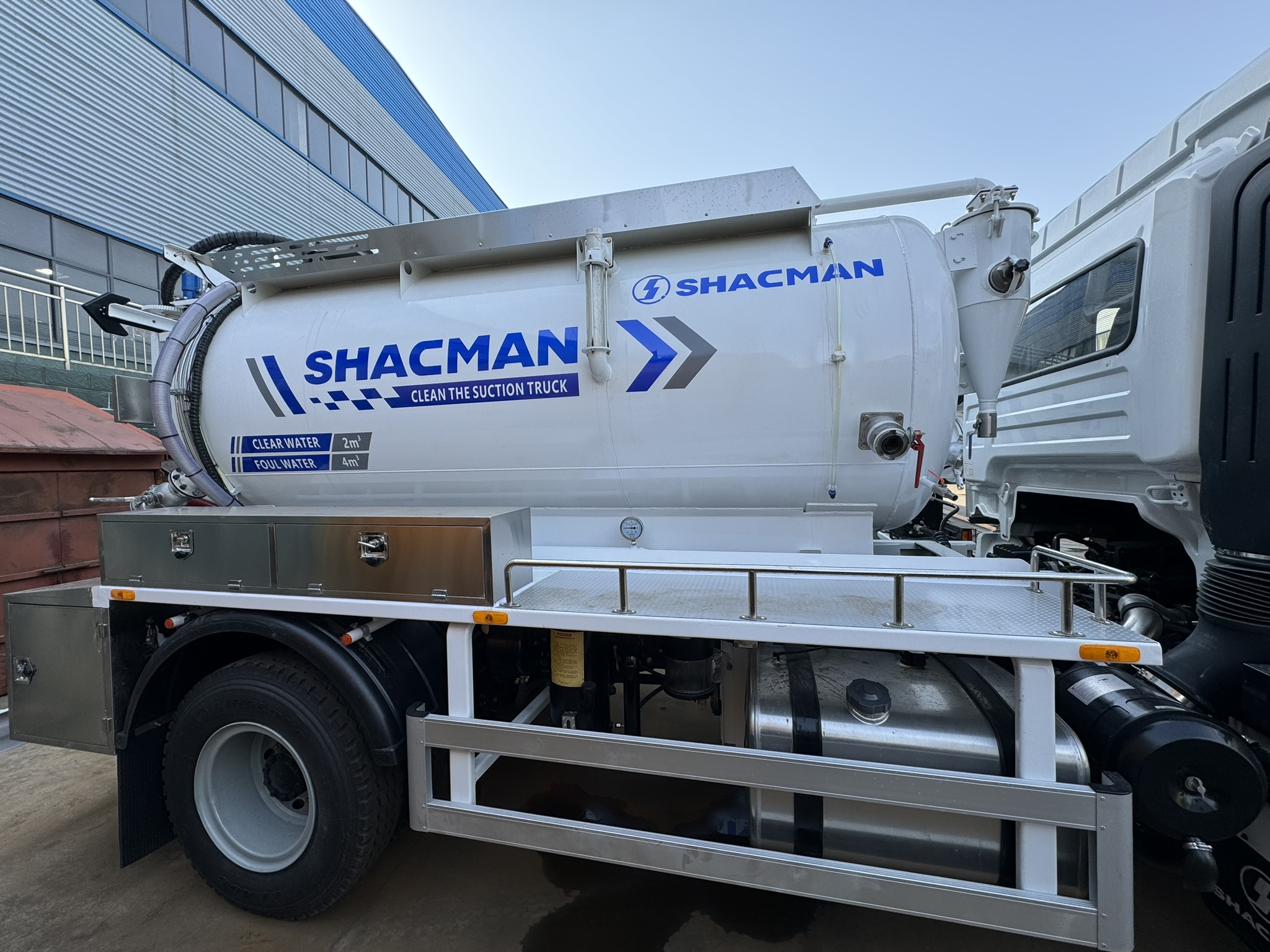

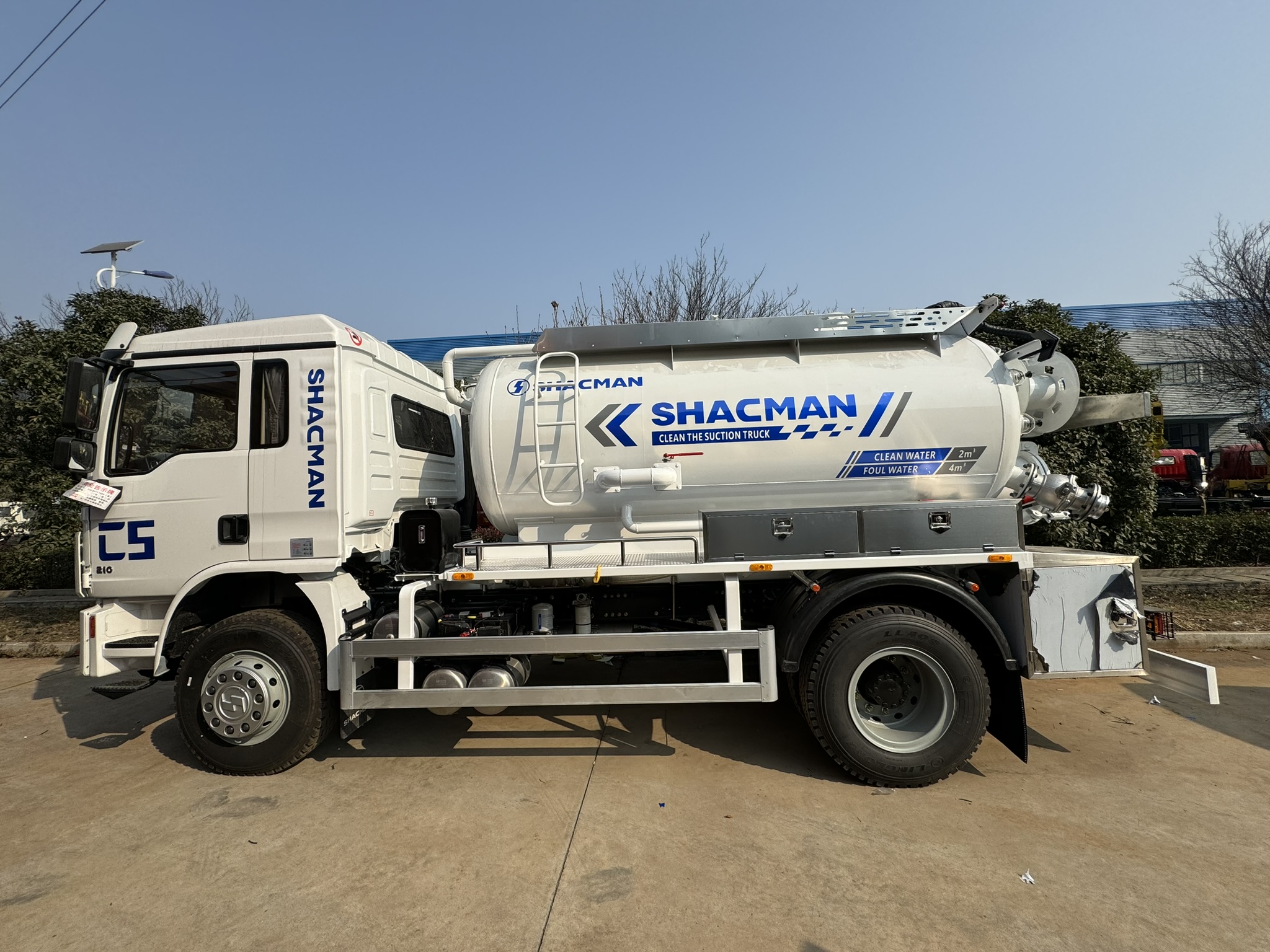

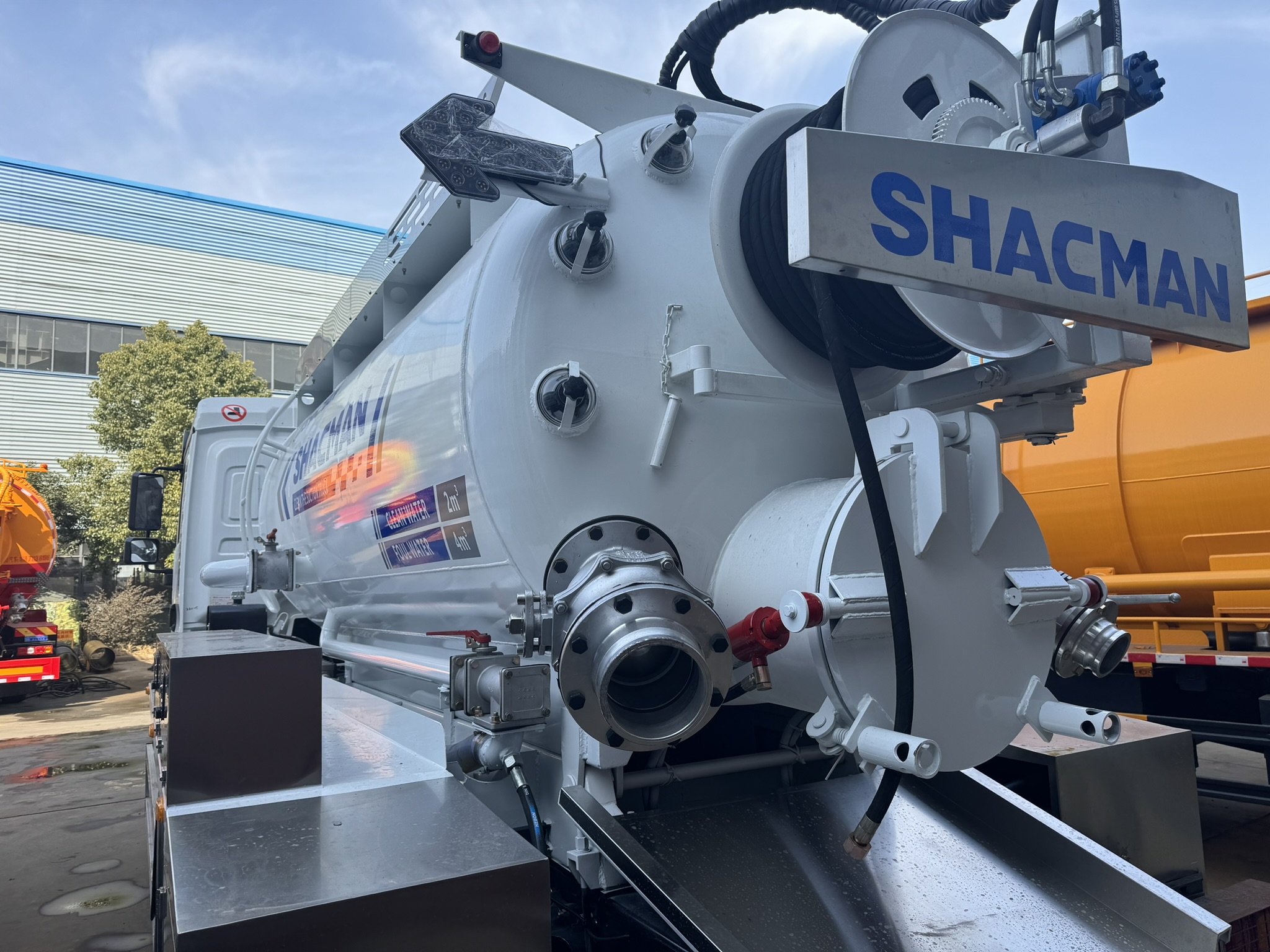

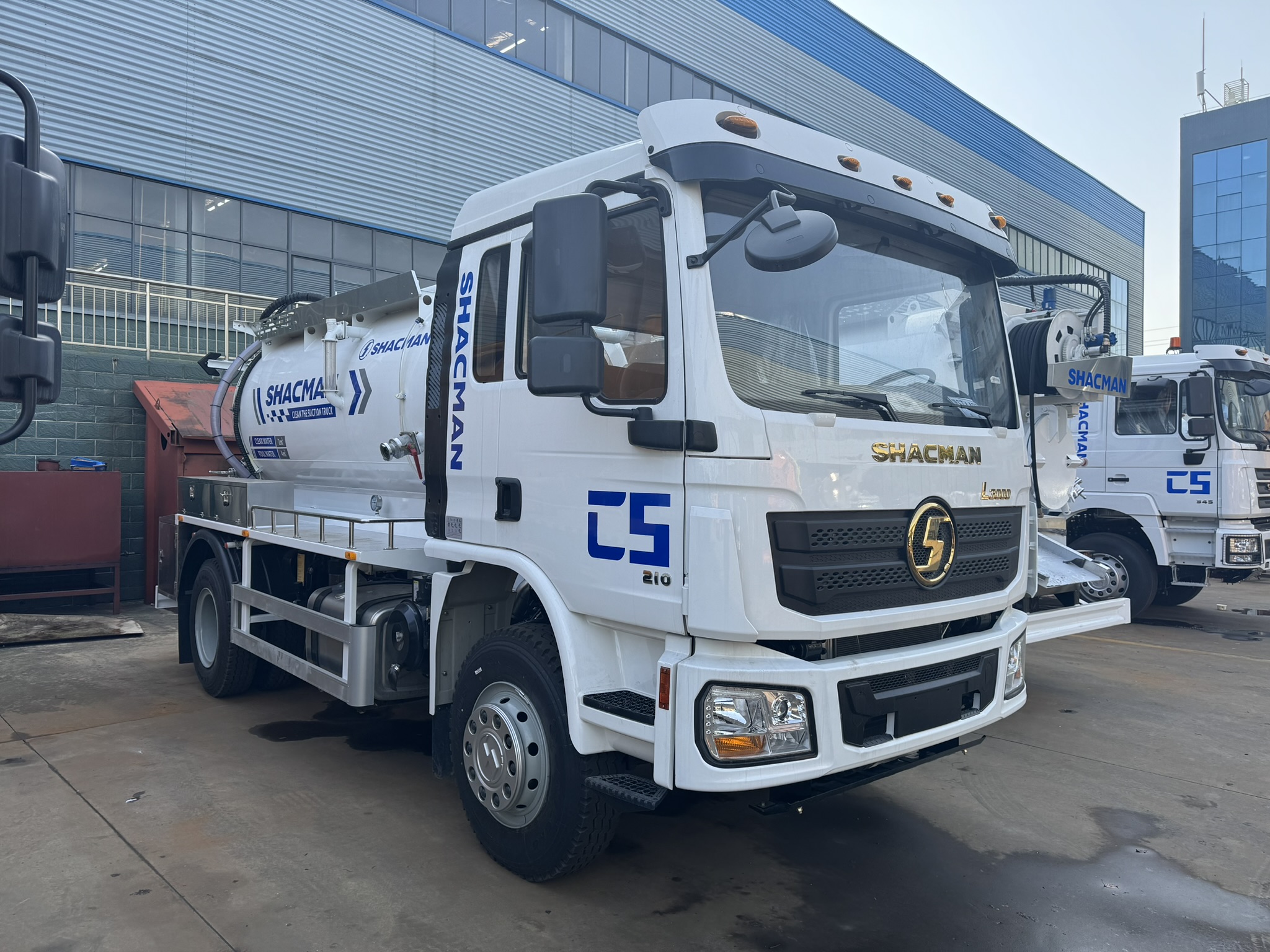

Shacman 4X2 12000litres High Pressure Cleaning Tank Together Sewer Jetting Vacuum Sewage Suction Truck

Description

Vacuum Sewage Suction Truck – Product Description

(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner, vacuum cleaner truck, vacuum suction truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum truck, sewer truck, cesspit emptier, gully emptier, etc.) is used for collecting, transporting and discharging liquid such as dirty water, sludge, septic, crude oil and solid substances like small stones and bricks. It is suitable for cleaning sewers, cesspits, gullies, and is widely used in environmental sanitation.

(2) Sewage suction system includes:

• PTO

• Transmission shaft

• Vacuum suction sewage pump

• High pressure molding tank

• Moisture separator

• Gas-oil separator

• Multi-directional control valve

• Hanger rod

• Self-discharging valve

• Fecal suction gun

• Pipe network system

(3) Vacuum tank capacity ranges from 3,000 to 25,000 Liters

(4) Cylinder tank can be lifted hydraulically up to 40–45°, and the rear door is hydraulically openable and closable

(5) Vacuum pumps:

• Adopt EU (Italy brand) or equivalent top China brand double vacuum pumps

• Super powerful and highly efficient

(6) Pump operation method:

• Hydraulic motor or auxiliary engine driven

(7) Overfill system:

• Equipped with music horn

• Prevents sewage water damage to vacuum pump when tank is full

(8) Features:

• Attractive appearance

• Rational structure

• Durability and long service life

Configuration Options

1. Chassis Options:

• Drive type: 4×2, 4×4, 6×4, 8×4

• Compatible with brands: DONGFENG, FOTON, ISUZU, FAW, SINOTRUK, SHACMAN, JAC, JMC, etc.

2. Tank Capacity:

• From 2m³ to 25m³

3. Purpose:

• Sewer dredging and cleaning

• Sewage transportation

4. Core Components:

• Sewage pump

• High pressure water pump (Italy brand HPP)

Our Advantages

1. High-pressure water flushing + top-quality sewage pump suction

2. Tank body made from high-quality carbon steel

3. International brand water pump: Italy HPP

4. Simple operation — guiding video available for clients
